Vickers Hardness Testers: Manual, Digital & Optical — Which Is Right for You?
Micro Vickers hardness indentation on material surface viewed through optical microscopeIntroduction to Vickers Hardness Tester Technology
Vickers hardness testing has evolved dramatically from purely manual instruments requiring skilled operator microscope measurement to fully automated digital and optical systems that eliminate operator variability and integrate seamlessly with production quality management systems. Understanding the capabilities and limitations of different Vickers tester types helps laboratories, manufacturers, and quality engineers select the optimal instrument for their application requirements.
Manual Vickers Hardness Testers
Design and Operation
Manual Vickers hardness testers apply the test load mechanically or hydraulically and use an optical measuring eyepiece with a calibrated filar micrometer ocular for diagonal measurement. The operator views the indentation through the eyepiece, aligns the measurement crosshairs manually with each diagonal endpoint, and reads the diagonal length from the micrometer drum.
Advantages
Manual instruments have low acquisition cost, simple maintenance requirements, and can be operated effectively with trained personnel. They remain suitable for low-throughput quality control applications and research settings where a dedicated operator is available.
Limitations
Operator-dependent diagonal measurement introduces human error — particularly for very small indentations below 20 µm diagonal — where alignment precision is challenged by the microscope resolution. Inter-operator variability can exceed ±3 HV units (±1–2%) for experienced operators on clear, well-prepared specimens. Manual measurement becomes impractical for high-throughput applications or automated case depth profiling requiring hundreds of measurements.
Semi-Automatic Vickers Hardness Testers
Semi-automatic testers apply the load automatically (motorised loading mechanism) but retain manual diagonal measurement via eyepiece or camera-assisted display. Digital readout of diagonal lengths and automatic HV calculation reduce arithmetic error. Image capture capabilities allow results documentation without separate photography equipment.
Digital Automatic Vickers Hardness Testers
Automated Image Analysis
Modern digital Vickers hardness testers replace manual eyepiece measurement with a CCD or CMOS camera system and automated image analysis software. The camera captures the indentation image at high resolution; the software applies edge detection algorithms to locate the four corners of the square indentation and automatically calculates both diagonals. Human measurement variability is eliminated.
Automated XY Stage and Hardness Mapping
Motorised XY stages position specimens automatically for multi-point hardness surveys, case depth profiles, and hardness maps across large areas. Test programmes define the array of measurement positions; the system executes the complete programme unattended — completing case depth profiles of 20–50 points per specimen in minutes rather than the 30–60 minutes a manual operator requires.
Data Management Integration
Digital instruments export hardness results, indentation images, and XY coordinates directly to LIMS (Laboratory Information Management Systems), SPC software, and test reporting templates via USB, RS232, or Ethernet interfaces. Automated report generation produces standardised test certificates meeting customer and regulatory requirements.
Optical Vickers Hardness Testers
High-end optical systems use telecentric lenses, LED ring illumination, and sub-pixel interpolation algorithms for sub-micrometre diagonal measurement accuracy. These systems are required for:
- Microhardness testing at loads below 10 gf where indentation diagonals may be <10 µm
- Thin coating hardness measurement (1–10 µm coatings at 10–50 gf loads)
- Characterisation of individual phases in multiphase materials
- Calibration-grade reference measurements requiring minimum measurement uncertainty

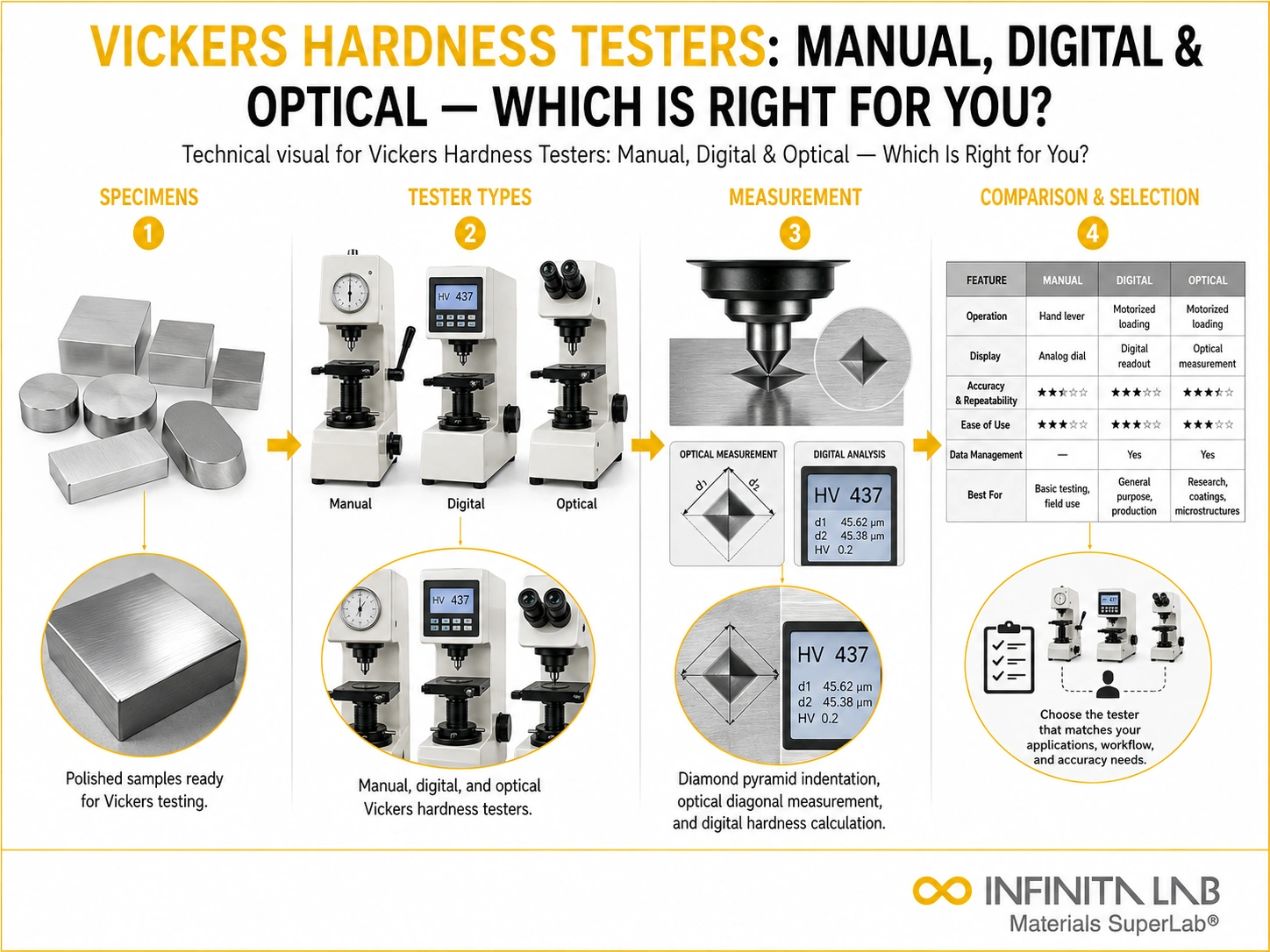

Comparison of Vickers Tester Types
| Feature | Manual | Semi-Automatic | Digital Automatic | Optical |
| Repeatability | ±2–4 HV | ±1–2 HV | ±0.3–1 HV | ±0.1–0.5 HV |
| Throughput | Low | Medium | High | High |
| Case depth profiling | Slow | Medium | Automated | Automated |
| Investment | Low | Medium | Medium-High | High |
| Operator skill needed | High | Medium | Low | Low |
Selecting the Right Vickers Tester for Your Application
For production floor incoming inspection of bulk material at a few points per specimen, a manual or semi-automatic instrument is cost-effective. For quality laboratories performing regular case depth profiling, weld HAZ surveys, and high-volume testing, a digital automatic instrument with motorised stage delivers the throughput, consistency, and traceability required. For coating characterisation and ultra-microhardness research, an optical precision system is necessary.
