What Is ASTM D648 Plastic Deflection Temperature Under Load?
ASTM D648 describes the determination of the Heat Deflection Temperature of plastic materials under a specified flexural load. The test identifies the temperature at which a plastic specimen deflects by a defined amount under constant bending stress.
This test is an essential source of information regarding the thermal resistance, dimensional stability, and load-bearing capacity of plastics at elevated temperatures. The property exhibited by ASTM D648 is generally used for both thermoplastic and thermosetting materials, whether unreinforced or reinforced polymers, in material selection, product design, and quality control applications.
Applications and Benefits of ASTM D648 Plastic Deflection Temperature Under Load Testing
Scope
ASTM D648 outlines procedures for evaluating the deflection temperature of plastics under controlled heating and flexural stress conditions.
It evaluates:
- Heat Deflection Temperature (HDT) under specified fiber stress
- Resistance to deformation under combined thermal and mechanical loading
- Dimensional stability at elevated temperatures
The method enables consistent comparison of thermal performance across different plastic materials and formulations.
Applications
- Material selection for high-temperature applications
- Automotive, electrical, and industrial housings
- Quality control of molded and extruded plastic components
- Comparison of reinforced vs. unreinforced polymers
- Research and development of heat-resistant plastic materials
Benefits
- Provides a standardized measure of thermal load-bearing performance
- Helps predict material behavior under service conditions
- Supports product specification and compliance requirements
- Enables comparison of plastics based on heat resistance
- Assists in improving material design and formulation

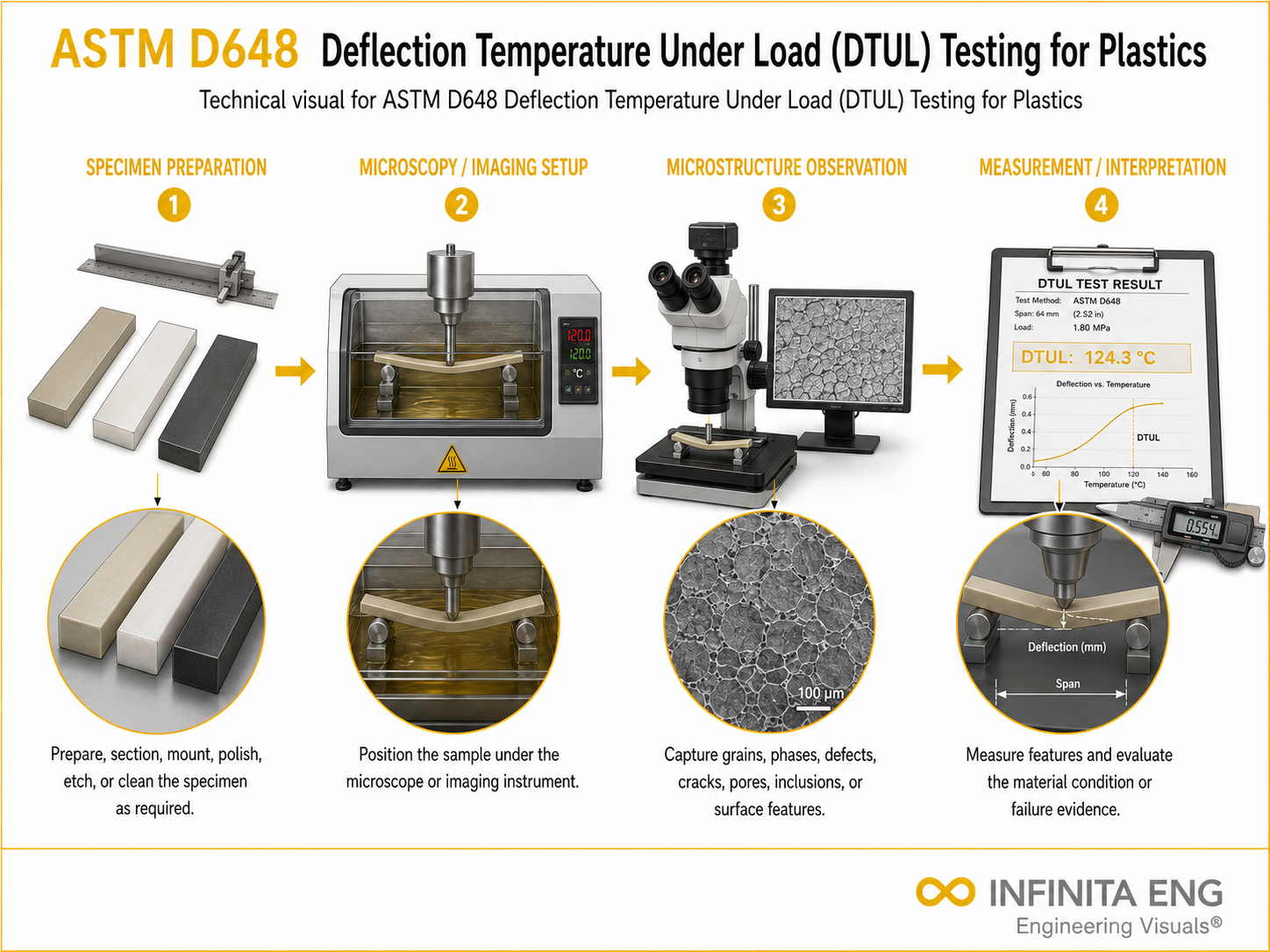

Our ASTM D648 Testing Procedure
Specimen Preparation & Measurement
Machine specimens to standard dimensions and measure width and depth at multiple points to calculate the required applied stress.
1Specimen Positioning
Mount the specimen edgewise on supports in the test apparatus to ensure proper alignment and unrestricted deflection.
2Temperature & Load Application
Apply specified fiber stress, immerse in a heated medium, and increase temperature at 2.0 ± 0.2 °C/min.
3Deflection Recording
Record the temperature at which the specimen reaches the specified deflection; this temperature is reported as the HDT.
4ASTM D648 Test Parameters and Requirements
| Parameter | Details |
|---|---|
| Test Principle | Flexural loading under controlled heating |
| Material Types | Thermoplastics and thermosets (reinforced and unreinforced) |
| Fiber Stress Levels | 0.455 MPa (66 psi) or 1.82 MPa (264 psi) |
| Heating Rate | 2.0 ± 0.2 °C/min |
- Heat deflection temperature test apparatus
- Precision micrometer for specimen measurement
- Temperature-controlled heating bath (typically silicone oil)
- Deflection measurement device
- Calibrated temperature sensor positioned near the specimen
Equipment and Instrumentation Used for ASTM D648 Testing
What You Receive: Test Report, Data, and Certification
- Heat Deflection Temperature (HDT) at specified fiber stress
- Comparative thermal performance data for material evaluation
- Assessment of dimensional stability under heat and load
- Support data for material selection and product specifications
- Quality control and compliance documentation
ASTM D648 Plastic Deflection Temperature Under Load FAQs
It evaluates a plastic material’s ability to maintain stiffness and dimensional stability when exposed to heat and mechanical stress.
HDT represents the temperature at which a polymer deforms by a set amount under a standard bending stress, indicating its heat resistance.
The temperature of the liquid heat-transfer medium is increased at a controlled rate of 2.0 ± 0.2°C per minute until the specimen deflects by the required amount.
ASTM D648 determines the heat deflection temperature of plastics under a specified flexural load. A plastic specimen is immersed in a heated medium and subjected to a controlled bending force while the temperature gradually increases. The temperature at which the specimen reaches the specified deflection is recorded to evaluate its performance under heat and mechanical stress.
Why Choose Infinita Lab for Plastic Deflection Temperature Under Load Testing
When your Plastic Deflection Temperature Under Load results have to hold up - for compliance, a customer audit, or an engineering decision - ASTM D648 accuracy and an unbiased third-party report matter more than price. Infinita Lab routes your ASTM D648 plastic deflection temperature under load testing to ISO/IEC 17025-accredited U.S. partner labs with hands-on method experience, so you get defensible data, transparent reporting, and turnaround times built around your project deadline - not ours.
