What Are PVC Compounds? Types, Additives, and Uses
What Are PVC Compounds?
PVC compounds are polyvinyl chloride resin blended with a system of additives – plasticizers, stabilizers, fillers, lubricants, and impact modifiers – engineered to produce a specific set of mechanical, thermal, and processing properties. Raw PVC resin in its unmodified form is a rigid, heat-sensitive material with limited practical use on its own, which is why virtually all commercial PVC products are compounded rather than used as neat resin.
Rigid PVC (PVC-U)
Rigid PVC compounds – designated PVC-U (unplasticized) – contain no plasticizer, formulated instead with heavier loadings of stabilizers, impact modifiers, and processing aids. These compounds prioritize dimensional stability, impact resistance, and surface quality, and are typically self-extinguishing with good chemical resistance, making them common in pipe, siding, window profiles, and other structural building products.
Flexible PVC (PVC-P)
Flexible PVC compounds – designated PVC-P (plasticized) – add plasticizer to the base resin, functional additives, lubricant, filler, and stabilizer system. Plasticizers weaken intermolecular forces between polymer chains, transforming rigid PVC into a soft, rubber-like material used in cable insulation, medical tubing, and flexible sheeting.
Key Additive Categories
- Heat stabilizers: prevent thermal degradation during processing and UV degradation in service; common types include organotin, mixed-metal (Ca/Zn), and lead-based stabilizers, though heavy-metal-free formulations are increasingly favored for regulatory and environmental reasons
- Plasticizers: reduce hardness and melt viscosity in flexible formulations; phthalate esters were historically dominant, though citrate esters, epoxy esters, trimellitates, and polyester plasticizers have gained share as lower-toxicity, non-phthalate alternatives
- Impact modifiers: elastomer particles (such as chlorinated polyethylene or acrylics) that absorb impact energy and arrest crack propagation, primarily addressing the inherent brittleness of rigid formulations
- Lubricants: internal and external lubricants (stearates, paraffin waxes) reduce melt viscosity, improve flow, and prevent the compound from sticking to processing equipment
- Fillers: calcium carbonate and similar fillers improve rigidity and reduce cost, while titanium dioxide serves dual duty as both a filler and a UV-absorbing pigment

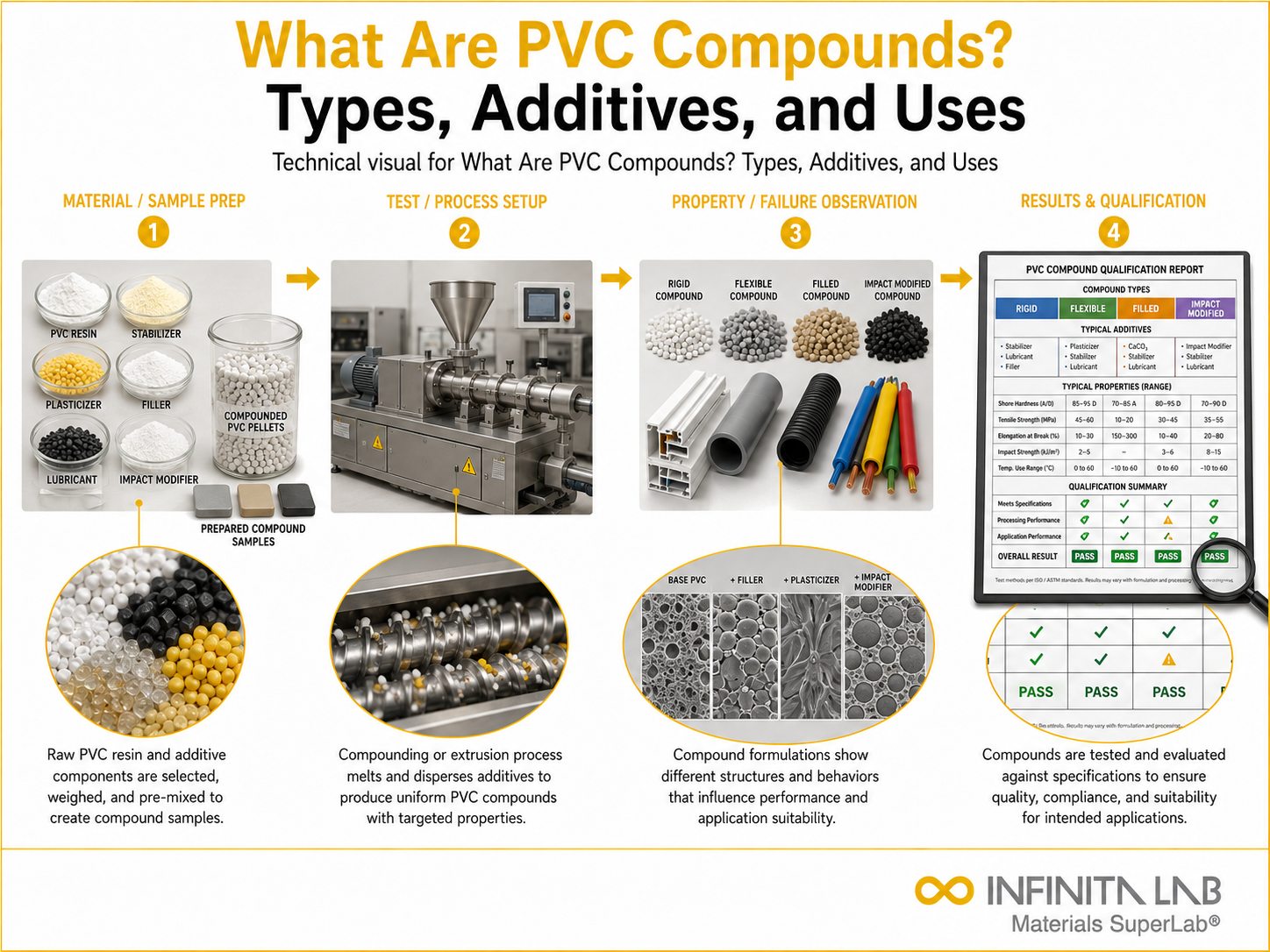

Compounding Process
- PVC resin, plasticizer (if used), filler, stabilizer, and other additives are weighed per the target formulation
- Ingredients are charged into a hot mixer for initial dispersive and distributive mixing, typically 6-10 minutes
- The mixture is discharged into a cold mixer for a further 6-10 minutes to prevent the compound from sticking together as it cools
- The finished dry-blend compound is processed into final form via extrusion, injection molding, calendaring, or blow molding
Industry Specifications Referencing PVC Compounds
- ASTM D1784: rigid PVC compound classification system
- ASTM D2287: flexible PVC compound classification
- Common test methods: ASTM D638 (tensile), D2240 (Shore hardness), D1243 (viscosity)
Also Read – Thermal Shock Resistance of Glass Containers: Test Method & Standards
Conclusion
Whether a PVC compound behaves like rigid pipe or soft tubing comes down almost entirely to the additive package, not the base resin – which is why formulation, not resin grade alone, is what determines whether a given PVC compound is fit for a specific application.
What is the difference between rigid and flexible PVC? Rigid PVC contains little or no plasticizer and is commonly used where strength, stiffness, and dimensional stability are required. Flexible PVC contains plasticizers that make the material softer and easier to bend. Rigid PVC is widely used for pipes and profiles, while flexible PVC is used for cables, tubing, flooring, films, and seals.
What additives are commonly used in PVC compounds? Common additives include heat stabilizers, plasticizers, lubricants, fillers, pigments, impact modifiers, processing aids, flame retardants, and ultraviolet stabilizers. Each additive serves a particular function, such as improving flexibility, preventing thermal degradation, reducing friction during processing, increasing impact strength, or improving resistance to outdoor exposure.
Why are heat stabilizers added to PVC? PVC can begin to degrade when exposed to the elevated temperatures required for extrusion, molding, or calendaring. Heat stabilizers reduce this degradation and help prevent discoloration, loss of mechanical properties, and the release of corrosive decomposition products. Stabilizer selection depends on the processing temperature, service environment, regulatory requirements, and expected product life.
What are plasticizers, and how do they affect PVC? Plasticizers are additives that increase flexibility, softness, and elongation by reducing intermolecular forces within the polymer. Different plasticizers provide different levels of low-temperature flexibility, permanence, chemical resistance, and migration resistance. Their selection is especially important for products used in medical, food-contact, electrical, automotive, and outdoor applications.
What is the role of fillers in PVC compounds? Fillers may be added to reduce cost, increase stiffness, improve dimensional stability, or modify processing behavior. Calcium carbonate is one of the most common PVC fillers. The particle size, surface treatment, and concentration of the filler can affect strength, impact resistance, surface finish, density, and melt flow.
