Accelerated Weathering Testing Lab: Services and Capabilities

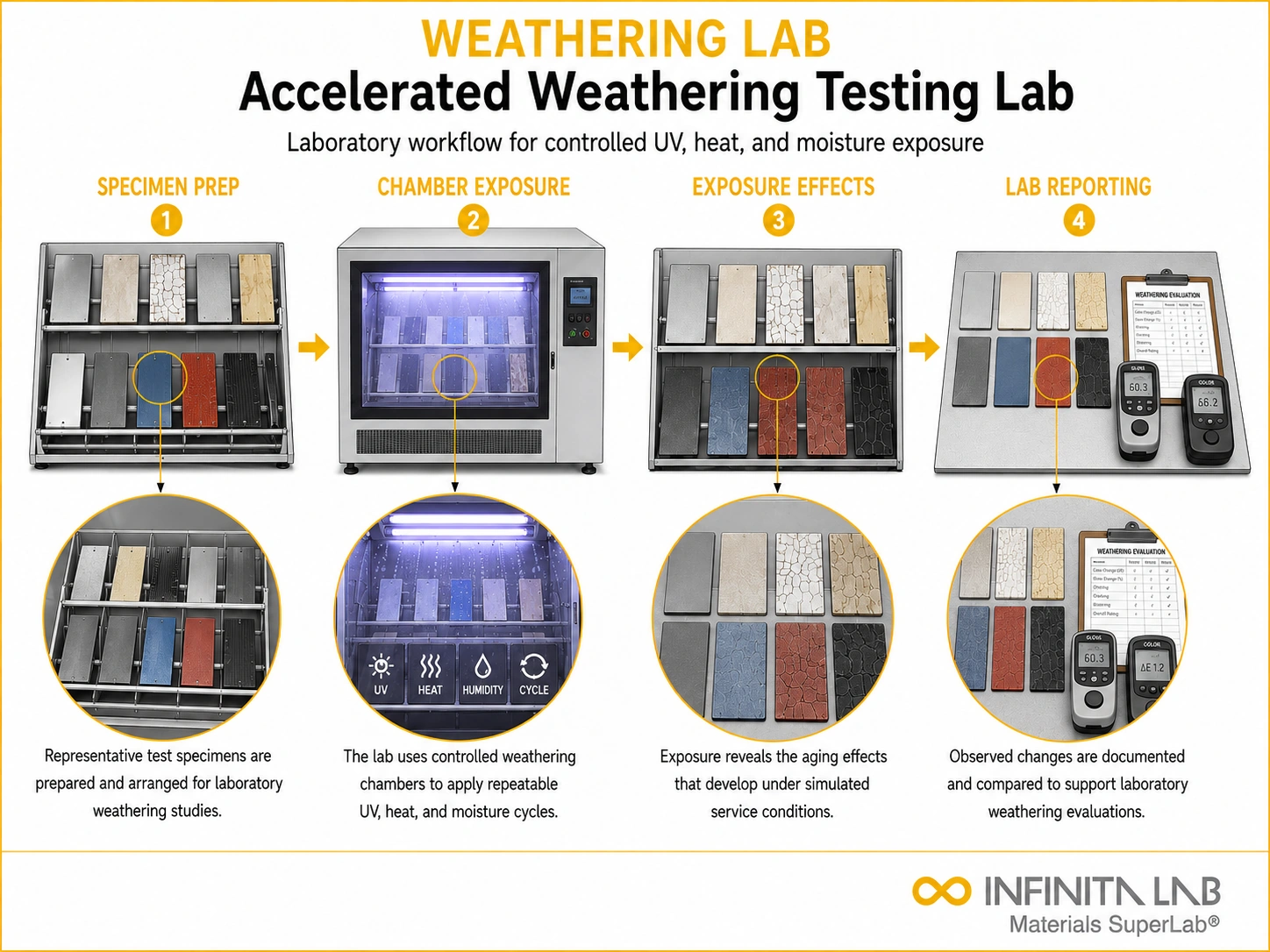

Representative Infinita Engineering Visual explaining the four-step workflow for Accelerated Weathering Testing Lab.What Is Lab-Based Accelerated Weathering Testing?
Laboratory accelerated weathering testing reproduces the degradation effects of years of outdoor sun, heat, and moisture exposure within a controlled chamber over a matter of weeks, using fluorescent UV (QUV, per ASTM G154) or xenon-arc (per ASTM G155) light sources. Running these tests in a controlled lab environment — rather than outdoors — allows precise control over cycle repeatability, exposure intensity, and environmental variables that natural weathering can’t offer.
Fluorescent UV (QUV) Testing
QUV chambers use fluorescent UV lamps combined with condensation or water spray cycles to simulate sunlight and dew/rain exposure. Two lamp types serve different purposes: UVA-340 lamps closely replicate the short-wave UV spectrum of natural sunlight for general material durability screening, while UVB-313 lamps deliver a more aggressive, accelerated spectrum for faster degradation screening. Because fluorescent lamps don’t reproduce the full visible spectrum accurately, QUV testing is not typically relied upon for assessing colour change or fading.
Xenon-Arc Testing
Xenon-arc chambers produce full-spectrum output spanning UV, visible, and infrared light, closely matching natural sunlight — making xenon-arc the preferred method whenever colour change, gloss retention, or fading is part of the evaluation. Optical filters tailor the exposure spectrum: daylight filters simulate direct outdoor exposure, while window-glass filters simulate sunlight filtered through glass, relevant for interior-use materials and automotive interior components.
Lab Test Procedure
- Select the appropriate light source (QUV or xenon-arc) and cycle profile based on the intended end-use environment and the properties being evaluated
- Mount specimens in the chamber at the specified orientation and distance from the light source
- Run repetitive cycles combining light exposure, elevated temperature (often via black panel temperature control), and moisture (condensation or water spray) per the selected standard cycle
- Remove specimens at defined exposure intervals for evaluation, then return them to the chamber for continued exposure
- Evaluate colour change (via CIE Lab coordinates), gloss retention, and surface degradation (cracking, crazing, chalking, delamination) at each interval
- Evaluate changes in mechanical properties — tensile and flexural strength — at final exposure intervals to quantify structural, not just cosmetic, degradation
Interpreting Lab Results
No fixed conversion exists between lab exposure hours and real-world outdoor years — results are strictly comparative between materials tested under identical lab conditions, not literal time-equivalence predictions. Lab chambers also don’t replicate every real-world factor: atmospheric pollution, biological attack, and saltwater exposure fall outside what QUV or xenon-arc testing captures, meaning lab results should be treated as a screening tool, not a full field-life guarantee.
Industry Specifications Referencing Lab Accelerated Weathering
- ASTM G154: fluorescent UV lamp apparatus
- ASTM G155: xenon-arc lamp apparatus
- ISO 4892: international equivalent methods
- ASTM D2565, D4459, D4329, D4587: companion standards for specific material classes and exposure conditions
Conclusion
A well-equipped weathering lab typically runs both QUV and xenon-arc capability side by side, since QUV offers a faster, lower-cost general degradation screen while xenon-arc is the only realistic choice when colour and gloss retention — not just mechanical degradation — are part of what needs qualifying.
What is the difference between QUV and xenon-arc testing? QUV testing uses fluorescent ultraviolet lamps to reproduce the damaging UV portion of sunlight and is often used for coatings, plastics, sealants, and roofing materials. Xenon-arc equipment produces a broader light spectrum that more closely represents full sunlight. Xenon testing is commonly preferred when color change, fading, or visible appearance is a primary concern.
What materials can be tested for accelerated weathering? Accelerated weathering can be performed on plastics, paints, coatings, adhesives, sealants, textiles, roofing products, automotive materials, composites, packaging, inks, and construction products. Both raw materials and finished components can be evaluated, provided the specimens fit within the chamber and can be mounted appropriately.
Which environmental conditions can a weathering lab simulate? Depending on the equipment, laboratories can simulate ultraviolet radiation, full-spectrum light, elevated temperature, humidity, condensation, water spray, and alternating wet and dry cycles. Some systems can also control irradiance, black-panel temperature, chamber-air temperature, and relative humidity to reproduce standardized exposure conditions.
How long does accelerated weathering testing take? Testing may last from several hundred hours to several thousand hours, depending on the product specification and evaluation objective. Shorter programs are often used for material screening, while long-term qualification studies may continue for weeks or months. Exposure time should be selected using an applicable standard or established comparison program.
What measurements are performed after weathering exposure? Post-exposure evaluations may include color change, gloss retention, chalking, cracking, blistering, adhesion, tensile strength, impact resistance, hardness, and surface microscopy. Measurements are often taken at scheduled intervals so the rate of degradation can be tracked throughout the exposure rather than only at the end.
