Accelerated Weathering Testing: QUV, Xenon-Arc, and ASTM Methods

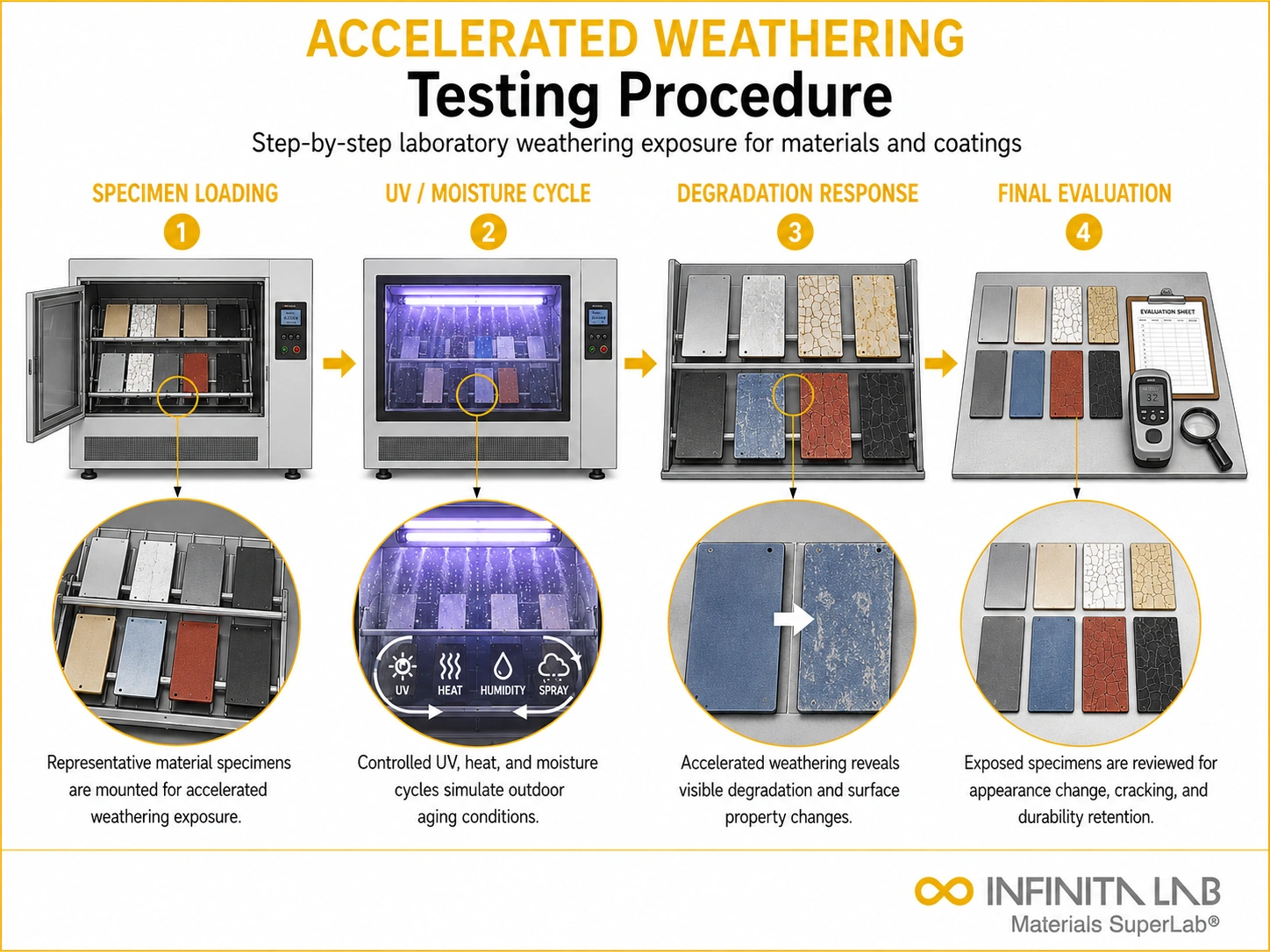

Representative Infinita Engineering Visual explaining the four-step workflow for Accelerated Weathering Testing.Accelerated Weathering Testing Services
Accelerated weathering testing simulates the long-term effects of common outdoor elements like UV radiation, moisture, humidity, wind, sand, and dust. Materials and products like paints, coatings, and automobile components degrade due to continuous exposure to the natural elements. Degradation can be in the form of corrosion, discolouration, chipping, cracking, hazing or other appearance, material deterioration, or performance issues. Environmental test chambers are utilised to accelerate the environmental effects and provide results within weeks or months by simulating a rapid weathering process. Other accelerated weathering testing methods include humidity, sand and dust, fog (salt spray) testing, moisture testing, and corrosion testing.
Any material or product exposed to the environment regularly is tested for weathering effects. Accelerated weathering tests provide essential information for production and product specification in most industries, including aerospace, automotive, consumer goods, defence, etc. Industry-specific testing standards are available where weathering tests play a vital role in the product life cycle, like paints and coatings, automotive interiors, and construction materials.
Accelerated weathering testing exposes non-metallic materials — coatings, polymers, paints — to controlled cycles of UV light, heat, and moisture to reproduce the degradation effects of years of outdoor sun and rain exposure in a fraction of the real time. Two primary methods dominate: fluorescent UV (QUV, ASTM G154) and xenon-arc (ASTM G155).
ASTM G154 (Fluorescent UV / QUV)
Uses fluorescent UV lamps to simulate sunlight combined with condensation or water spray to simulate dew and rain. Two lamp types are commonly used: UVA-340 lamps closely replicate the short-wave UV portion of natural sunlight for general outdoor material testing, while UVB-313 lamps deliver a more aggressive spectrum for accelerated screening. Because fluorescent sources don’t reproduce the full visible spectrum accurately, G154/QUV testing is not typically used to assess colour change over time.
ASTM G155 (Xenon-Arc)
Uses a xenon-arc lamp producing full-spectrum output across UV, visible, and infrared — closely matching natural sunlight, which makes it the preferred method when colour change and fading are part of what’s being evaluated. Optical filters tailor the exposure: daylight filters simulate direct outdoor sun exposure, while window glass filters simulate sunlight filtered through glass (relevant for interior-use materials).
Also Read: Advantages of UV Weathering Testing for Materials & Coatings
Test Procedure (General)
- Select the appropriate method (G154 or G155) and cycle based on the intended end-use environment
- Mount specimens in the weathering chamber
- Run repetitive cycles combining controlled UV/light exposure, elevated temperature, and moisture (condensation or water spray) per the selected cycle — G155 offers 14 predefined cycles covering different applications
- At defined exposure intervals, remove specimens and evaluate colour change (delta E via CIE Lab coordinates), gloss retention, surface degradation (cracking, crazing, chalking, delamination), and changes in mechanical properties (tensile, flexural)
Important Caveat
No direct correlation has been established between accelerated weathering duration and actual outdoor exposure duration — results are comparative between materials tested under identical conditions, not a literal “X hours equals Y years outdoors” conversion. Neither method simulates localised weather phenomena like atmospheric pollution, biological attack, or saltwater exposure.
Also Read: Air Aging Testing for Materials: Methods, Standards & Property Changes
Industry Specifications Referencing Accelerated Weathering
- ASTM G154, G155: primary governing practices
- ISO 4892: international equivalent xenon-arc and fluorescent UV methods
- Common companion standards: ASTM D2565, D4459, D4329, D4587
Conclusion
Choosing between QUV and xenon-arc comes down to what you’re measuring — QUV is a faster, lower-cost screen for general degradation, while xenon-arc is the better choice whenever colour and gloss retention (not just mechanical degradation) are part of the qualification criteria.
What is QUV weathering testing? QUV testing uses fluorescent ultraviolet lamps to reproduce the damaging UV portion of sunlight. Cycles of UV exposure and condensation are used to evaluate coatings, plastics, sealants, adhesives, and other materials.
What is xenon-arc weathering testing? Xenon-arc testing uses filtered xenon light to simulate the full spectrum of natural sunlight, including ultraviolet, visible, and infrared radiation. It is commonly used when color change and sunlight exposure are important.
What is the difference between QUV and xenon-arc testing? QUV testing focuses mainly on UV degradation and moisture exposure. Xenon-arc testing provides a closer simulation of full-spectrum sunlight and is often preferred for evaluating fading, color stability, and appearance.
What properties are evaluated after exposure? Specimens may be evaluated for color change, gloss loss, cracking, chalking, blistering, embrittlement, surface erosion, and loss of mechanical strength. Testing may also include adhesion, tensile, or impact measurements.
How are weathering test cycles selected? The cycle is selected based on the material, expected service environment, applicable standard, and customer requirements. Test parameters may include lamp type, irradiance, temperature, humidity, condensation, and water spray.
