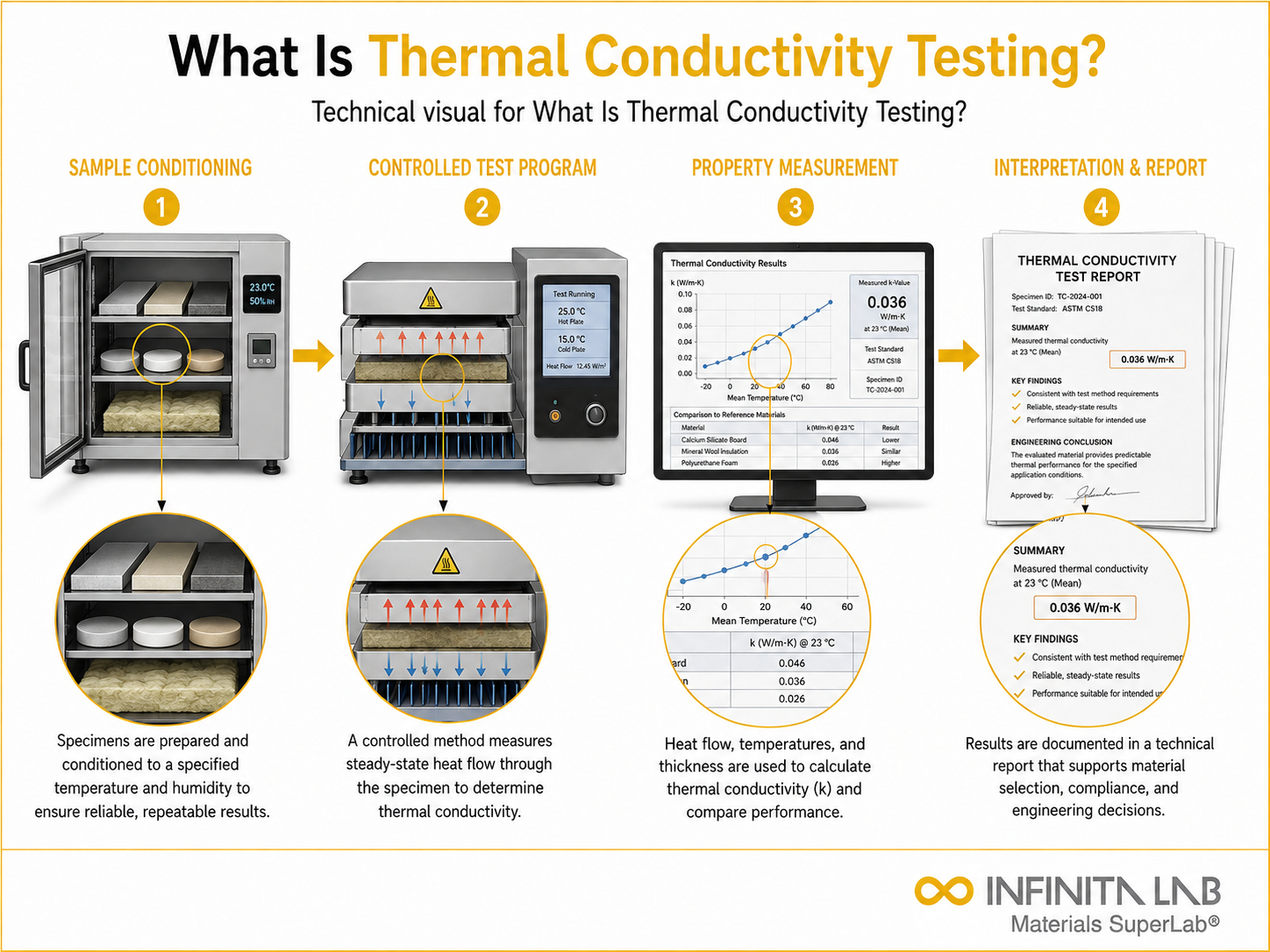

What Is Thermal Conductivity Testing?
Aerospace corrosion testing per MIL-STD-810 evaluating alloy and coating protection performanceWhat Is Thermal Conductivity?
Thermal conductivity (k) quantifies the rate at which heat flows through a material under a temperature gradient, expressed in watts per meter-kelvin (W/m*K). A high k value means the material transfers heat readily – copper at 400 W/m*K conducts heat far faster than polyurethane foam at 0.025 W/m*K. Thermal conductivity is the primary input for heat transfer calculations in electronic packaging, insulation design, building construction, thermal interface material selection, and any application where managing heat flow is critical to performance or safety.
The value of k is not fixed – it varies with temperature, density, moisture content, and for composites and foams, with direction. Testing establishes k at the temperatures and conditions relevant to the application. For insulation materials at -200 degrees C or electronics materials at 150 degrees C junction temperature, room-temperature data alone is insufficient.
Thermal Conductivity Test Methods
Guarded Hot Plate (ASTM C177)
The guarded hot plate is the primary absolute method for insulating materials. A flat specimen is sandwiched between a heated centre plate and two cold plates. Guard heaters surrounding the centre plate eliminate lateral heat flow, ensuring all heat passes through the specimen perpendicularly. ASTM C177 covers the method. It is highly accurate but requires large flat specimens (200-300 mm square) and long equilibration times. It is the reference method for insulation qualification.
Heat Flow Meter (ASTM C518)
The heat flow meter method uses a calibrated heat flux transducer to measure heat flow through the specimen. It requires calibration against specimens of known thermal conductivity measured by ASTM C177. ASTM C518 is the most widely used method for production quality control and specification compliance testing of insulation boards, foams, and building materials. It covers materials with k from about 0.01 to 0.5 W/m*K.
Transient Plane Source – Hot Disk (ISO 22007-2)
The hot disk method uses a flat spiral sensor sandwiched between two specimen halves. A step power input heats the sensor, and temperature rise is measured as a function of time. Thermal conductivity and thermal diffusivity are extracted simultaneously. ISO 22007-2 covers the method. It is fast (10-160 seconds), requires small specimens, and covers a wide range – from 0.01 W/m*K for foams to 500 W/m*K for metals.
Laser Flash Analysis (ASTM E1461)
Laser flash measures thermal diffusivity rather than thermal conductivity directly. A laser pulse heats the front face of a small disc specimen; an infrared detector measures temperature rise on the rear face as a function of time. Thermal conductivity is calculated as k = alpha * density * specific heat. ASTM E1461 covers the method. It works from -100 degrees C to over 2000 degrees C and is standard for ceramics, metals, and composites at elevated temperatures.
Industry Specifications
- Building Insulation: ASTM C177 (guarded hot plate), ASTM C518 (heat flow meter), ASTM C1363
- Electronics and Thermal Interface Materials: ASTM D5470 (thermal resistance), ISO 22007-2 (hot disk)
- Ceramics and Refractory: ASTM E1461 (laser flash), ASTM C1113 (hot wire for refractories)
- Plastics and Polymers: ASTM E1530 (guarded heat flow meter), ISO 22007-2
- Aerospace Composites: ASTM E1461, NASA RP-1461
- Building Codes: ASHRAE 90.1, ISO 6946 (R-value from k), EN 12667
Conclusion
Thermal conductivity testing matches the method to the material and application. Guarded hot plate is the reference method for flat insulation. Heat flow meter serves production quality control at the same range. Hot disk handles the full range from foams to metals with fast turnaround on small specimens. Laser flash reaches elevated temperatures for ceramics and metals where steady-state methods are impractical. The method determines accuracy, temperature range, and specimen requirements.
What is the difference between thermal conductivity and thermal diffusivity? Thermal conductivity (k) describes steady-state heat flow under a fixed temperature gradient. Thermal diffusivity (alpha) describes transient response - how quickly a material's temperature changes in response to a heat pulse. They are related by alpha = k / (density * specific heat). Laser flash measures diffusivity; guarded hot plate measures conductivity. For applications involving transient heating (electronic pulses, thermal shock), diffusivity is the more relevant parameter.
How does moisture content affect thermal conductivity of insulation materials? Moisture dramatically increases thermal conductivity in porous insulation. Air has k = 0.025 W/m*K; water has k = 0.6 W/m*K - 24 times higher. A fiberglass batt with 1% moisture by weight can have 10-20% higher thermal conductivity than the dry value. Building insulation standards specify specimen conditioning before test. Thermal conductivity values in product data sheets are for dry conditioned specimens; in-service performance in humid conditions requires adjusted values.
Can thermal conductivity be measured at elevated temperatures? Yes, and for many applications it must be. Laser flash per ASTM E1461 measures thermal diffusivity from cryogenic to over 2000 degrees C. Guarded hot plate per ASTM C177 covers -180 degrees C to 650 degrees C. The hot disk method covers -160 degrees C to 1000 degrees C. For materials whose k varies significantly with temperature - ceramics, refractories, carbon composites - measurement at actual service temperature is necessary for accurate thermal modeling.
What specimen dimensions are required for thermal conductivity testing? Guarded hot plate (ASTM C177) requires large flat specimens, typically 200-300 mm square and 10-100 mm thick, with two matched specimens. Heat flow meter (ASTM C518) requires similar plan dimensions. Hot disk (ISO 22007-2) requires two flat-faced specimens at least 15-20 mm in each dimension. Laser flash (ASTM E1461) uses small discs, typically 10-12.7 mm diameter and 1-3 mm thick. Small specimens are an advantage of transient methods.
What is R-value and how does it relate to thermal conductivity? R-value is thermal resistance - the inverse of thermal conductance for a specific thickness. R = thickness / k. A higher R-value means better insulating performance. In US building practice, R-value is in ft2*h*F/BTU. A material with k = 0.04 W/m*K at 100 mm thickness has an R-value of 2.5 m2*K/W (SI) or approximately R-14 in US units. Thermal conductivity is a material property independent of thickness; R-value depends on both material and thickness.
