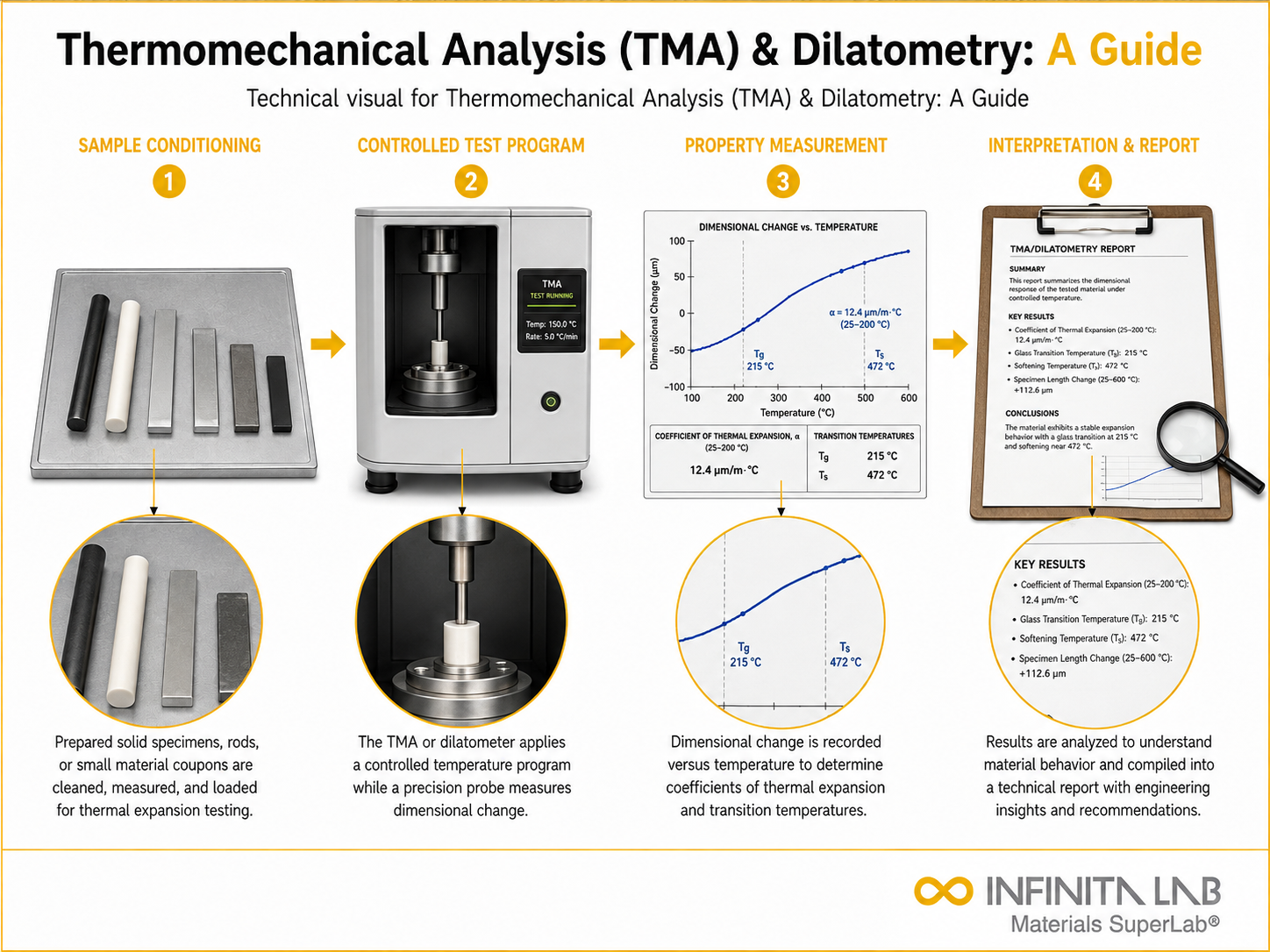

Thermomechanical analysis (TMA) measures dimensional changes in a material as a function of temperature under a controlled force. A probe contacts the specimen surface, and as the temperature ramps or holds, the probe displacement is recorded with nanometer resolution. TMA quantifies the coefficient of thermal expansion (CTE), glass transition temperature (Tg), softening point, creep under load, and penetration behaviour. It is used for polymers, adhesives, coatings, composites, ceramics, and electronic substrates where dimensional stability with temperature is a design requirement.
The distinction between TMA and simple thermal expansion measurement is the ability to apply different probe geometries and forces to access different material responses. A flat-tipped probe under minimal force measures expansion; a penetration probe under load measures softening onset; a three-point bending fixture measures flexural softening temperature. This versatility makes TMA the primary thermal analysis tool for mechanical property changes that accompany thermal transitions.
TMA Measurement Modes
Coefficient of Thermal Expansion (CTE)
CTE measurement is the most common TMA application. The specimen is loaded with a flat probe under minimal force (5-10 mN) and heated at a controlled rate. The slope of the displacement-temperature curve gives linear CTE in ppm/K. For polymers and composites, CTE is reported below and above Tg separately, as the two values can differ by a factor of 2-5. CTE mismatch between bonded materials drives thermal fatigue at interfaces – the primary failure mode in electronic solder joints and thermal barrier coatings.
Glass Transition Temperature (Tg) by TMA
The glass transition produces a step change in CTE – the material expands more rapidly above Tg as polymer chains gain mobility. TMA detects Tg as the intersection of two linear CTE slopes. This complements DSC (heat capacity change) and DMA (modulus change). For highly crosslinked thermosets and composites where the DSC Tg signal is weak, TMA and DMA are more sensitive. ASTM E1545 covers TMA measurement of Tg.
Penetration and Softening
A hemispherical or sharp probe under defined load measures the temperature at which a material begins to deform plastically – the softening point under controlled conditions. Used for thermoplastic films, adhesives, and coatings to determine service temperature limits. ASTM E2092 covers softening temperature by TMA. The probe geometry and applied force define the measurement and must be reported with the result.
What Is Dilatometry?
Dilatometry measures linear or volumetric dimensional change as a function of temperature without an applied force. A pushrod dilatometer contacts the specimen through a rigid rod, and displacement is measured with an LVDT or optical sensor. Dilatometry covers temperatures from cryogenic to over 1600 degrees C, making it the method for high-temperature ceramics, metals, and refractory materials where TMA instruments cannot operate. It also detects phase transformations in metals – the austenite-to-martensite transformation in steel produces a measurable volume change that dilatometry captures precisely.
ASTM E228 covers linear thermal expansion by pushrod dilatometry. For metals and ceramics at elevated temperatures, dilatometry is the primary CTE measurement method. The transition from TMA to dilatometry is driven by temperature range and specimen type – TMA handles small, soft, thin specimens at moderate temperatures; dilatometry handles bulk, stiff, high-temperature materials.
Industry Specifications
- Polymers and Composites: ASTM E1545 (Tg by TMA), ASTM E831 (CTE by TMA), ASTM E2092 (softening temperature)
- Metals and Alloys: ASTM E228 (pushrod dilatometry), ASTM E289 (reference materials)
- Ceramics and Glass: ASTM C372 (CTE of whiteware ceramics), ASTM C539 (CTE of porcelain enamel)
- Electronic Materials: IPC-TM-650 2.4.24 (CTE of PCB laminates), JEDEC JESD51 series
- Adhesives and Sealants: ASTM E1824 (TMA of adhesives), ISO 11359-2 (CTE by TMA)
- General TMA Standards: ASTM E1363 (temperature calibration of TMA), ISO 11359-1 (general principles)
Conclusion
TMA and dilatometry both measure dimensional response to temperature but serve different material types and temperature ranges. TMA covers polymers, adhesives, composites, and electronics at moderate temperatures with controlled forces and multiple probe geometries. Dilatometry covers metals, ceramics, and refractories at high temperatures where TMA cannot operate, and detects solid-state phase transformations in metals. CTE data from either technique is essential for thermal stress analysis of bonded assemblies where dissimilar materials expand at different rates.
What is the difference between TMA and DSC for measuring Tg? DSC measures the heat capacity change at Tg - a step in the heat flow signal. TMA measures the CTE change at Tg - a change in the slope of the displacement-temperature curve. For lightly crosslinked polymers with a clear Tg, DSC is faster and more common. For highly crosslinked thermosets where the DSC step is small, TMA and DMA provide clearer Tg detection. The two methods do not always give the same Tg value because they detect different physical phenomena at the transition.
Why does CTE mismatch cause failures in electronic assemblies? When two bonded materials have different CTEs, temperature changes produce differential expansion that loads the bond interface in shear. In a solder joint between silicon (CTE ~3 ppm/K) and FR4 circuit board (CTE ~15-18 ppm/K), each thermal cycle generates shear strain in the solder. Over thousands of cycles, fatigue cracks propagate until the joint opens electrically. TMA characterizes the CTE of each component; the mismatch magnitude and temperature cycle range determine fatigue life through Coffin-Manson analysis.
What temperature range does TMA cover versus dilatometry? Most commercial TMA instruments cover -150 degrees C to 1000 degrees C, with the most common range being -50 degrees C to 600 degrees C for polymer and electronic material work. Pushrod dilatometers extend from room temperature to 1600-2000 degrees C, covering steel phase transformations, ceramic sintering, and refractory materials. For metals above 500 degrees C and ceramics at any temperature, dilatometry is the practical choice.
How is CTE reported - linear or volumetric? TMA and dilatometry measure linear CTE - the fractional change in length per degree Kelvin. For isotropic materials, volumetric CTE is approximately three times the linear CTE. For anisotropic materials (fiber composites, single crystals, textured metals), CTE differs in each principal direction and must be measured separately along each axis. PCB laminates have significantly different CTE in-plane versus through-thickness, and both values matter for solder joint reliability analysis.
What specimen size is needed for TMA testing? Standard TMA specimens are small: typically 5-10 mm in the measurement direction and 5-10 mm in cross-section. For expansion mode, both faces must be flat and parallel. Film and coating specimens can be as thin as 25 microns with appropriate fixturing. TMA accepts much smaller specimens than dilatometers, which typically require 25-50 mm length rods. The specimen must be large enough for the probe to contact without edge effects.
