IPX3 / IPX4 Spraying & Splashing Water Ingress Protection Testing
Two of these ingress protection tests subject the equipment under test (EUT) to water splashing and spraying. These tests have the IPX3 and IPX4 designations. In the case of water spraying, the second digit would always be a 3, while in the case of water splashing, it would always be a 4.
TRUSTED BY
- Overview
- Scope, Applications, and Benefits
- Test Process
- Specifications
- Instrumentation
- Results and Deliverables
IPX3 & IPX4 Testing Overview
IPX3 and IPX4 are ingress protection (IP) tests defined under IEC 60529 to evaluate how well enclosures resist water intrusion. IPX3 assesses protection against spraying water, while IPX4 evaluates resistance to splashing water from all directions.
These tests simulate real-world conditions such as rain, splashes, and moisture exposure. They are widely used in electrical and electronic products to ensure safe operation and durability in water environments.
Scope, Applications, and Benefits
Scope
IPX3 & IPX4 testing evaluates:
- Resistance to water spray and splashes
- Protection of enclosures against water ingress
- Sealing effectiveness of joints and openings
- Functional performance after water exposure
- Environmental durability under moisture conditions
Applications
- Electrical and electronic enclosures
- Automotive components and lighting systems
- Consumer electronics and appliances
- Outdoor equipment and devices
- Industrial control panels and housings
Benefits
- Verifies protection against rain and splashing water
- Identifies leakage points and sealing defects
- Supports product design improvement
- Enhances durability in outdoor conditions
- Enables compliance with IP rating requirements

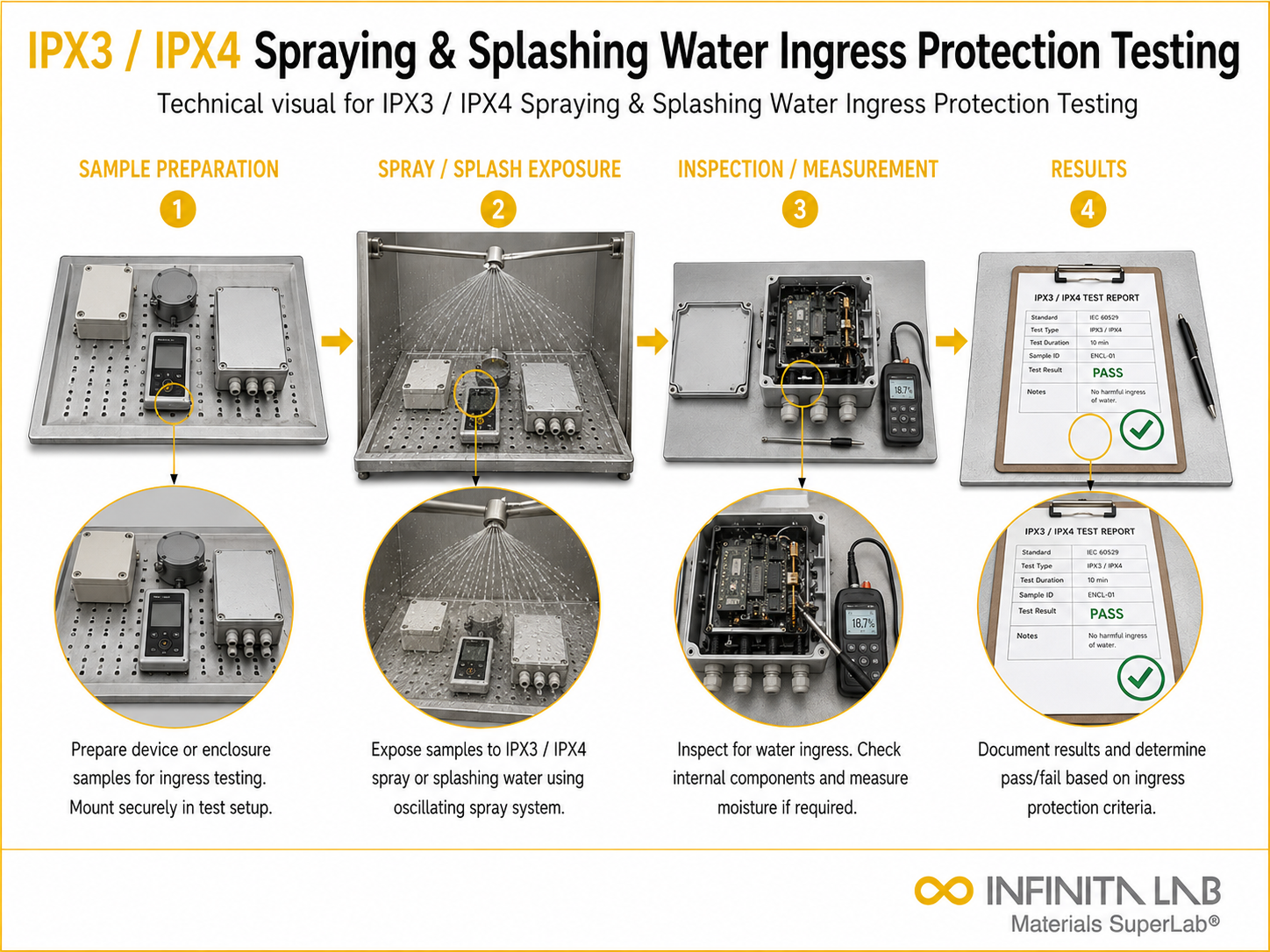

IPX3 & IPX4 Test Process
Sample Preparation
Test specimen is mounted in normal operating position inside the chamber.
1Water Spray Exposure
Water is sprayed using oscillating tube or nozzle at specified angles (up to 60° for IPX3).
2Splashing Simulation
For IPX4, water is sprayed from all directions to simulate splashing conditions.
3Inspection & Evaluation
Product is inspected for water ingress and functional performance after exposure.
4IPX3 & IPX4 Technical Specifications
| Parameter | Details |
|---|---|
| Standard | IEC 60529 |
| IPX3 Condition | Water sprayed up to 60° from vertical |
| IPX4 Condition | Water splashed from all directions |
| Water Flow Rate | ~0.7 to 10 L/min (method dependent) |
| Test Duration | ~5–10 minutes minimum |
| Measured Outputs | Water ingress, functional performance |
Instrumentation Used for Testing
- IPX3/IPX4 water spray chamber
- Oscillating tube apparatus
- Spray nozzle system
- Water supply and pressure control unit
- Turntable (for sample rotation)
- Inspection and data recording system
Results and Deliverables
- Water ingress evaluation
- Functional performance after exposure
- Identification of leakage or failure points
- IP rating compliance assessment (IPX3/IPX4)
- Test report with observations and results
Partnering with Infinita Lab for Optimal Results
Infinita Lab addresses the most frustrating pain points in the IPX3 and IPX4 testing process: complexity, coordination, and confidentiality. Our platform is built for secure, simplified support, allowing engineering and R&D teams to focus on what matters most: innovation. From kickoff to final report, we orchestrate every detail—fast, seamlessly, and behind the scenes.
Looking for a trusted partner to achieve your research goals? Schedule a meeting with us, send us a request, or call us at (888) 878-3090 to learn more about our services and how we can support you. Request a Quote
Frequently Asked Questions
IPX3 and IPX4 testing evaluate a product’s resistance to water spray and splashing conditions under IEC 60529, ensuring that enclosures protect internal components from moisture exposure during real-world environmental conditions.
IPX3 tests resistance to water sprayed at angles up to 60° from vertical, while IPX4 evaluates protection against water splashing from all directions, providing a higher level of water resistance.
Testing uses oscillating tubes or spray nozzles to deliver controlled water flow at specific angles and pressures, simulating rain or splashing conditions as defined in IEC 60529 standards.
Industries such as electronics, automotive, lighting, consumer appliances, and industrial equipment use IPX3/IPX4 testing to ensure products can withstand environmental exposure to water.
It helps verify product durability, prevent water damage, and ensure safe operation in environments exposed to rain or splashes, reducing failure risks and improving reliability in real-world applications.
