What Is Package Conditioning?
What Is Package Conditioning?
Package conditioning exposes packaging systems – containing their intended product – to controlled temperature and humidity environments before distribution performance testing, ensuring that the subsequent mechanical or performance test reflects a realistic, environmentally aged condition rather than a pristine, as-manufactured state. ASTM D4332, Standard Practice for Conditioning Containers, Packages, or Packaging Components for Testing, is the governing standard for this step.
Why Conditioning Matters
Many packaging materials, especially cellulosic ones like corrugated fiberboard, change physical properties measurably as temperature and relative humidity vary. Testing an unconditioned package produces results that may not reflect what actually happens after the same package has travelled through a real distribution cycle spanning multiple climates.
Standard Conditioning Atmospheres
- Standard atmosphere: 23°C ± 1°C, 50% ± 2% RH – the default conditioning environment for most packaging tests
- Tropical atmosphere: 32°C ± 1°C, 90% ± 2% RH – simulates humid, tropical distribution environments
- Desert/high-temperature atmosphere: simulates hot, dry distribution conditions
- Freeze-thaw and deep-freeze atmospheres: simulate cold-chain and winter shipping exposure

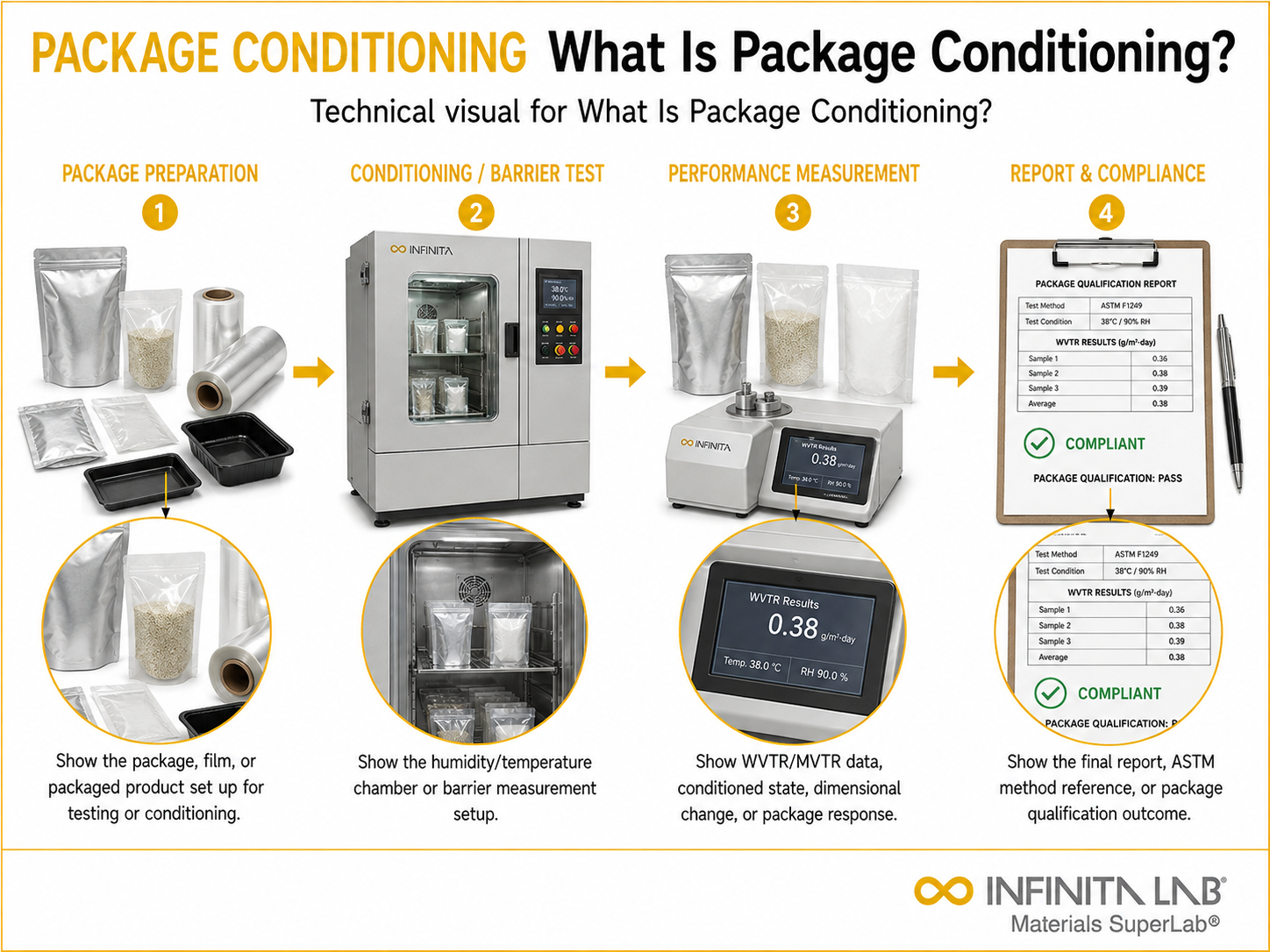

Test Procedure
- Select the conditioning atmosphere(s) representative of the package’s expected distribution environment
- Place the assembled package – with its intended product or simulated contents – into a conditioning chamber
- Hold the package at the selected temperature and humidity until moisture equilibrium is reached throughout the material’s cross-section, typically 24-72 hours for corrugated boxes and flexible packaging, extending to 72-96 hours for heavier constructions or foam padding
- Monitor and log chamber temperature and humidity throughout using calibrated instruments (hygrometers, psychrometers) to confirm the target condition was maintained
- Proceed directly to the mechanical or distribution performance test (such as ASTM D4169 or an ISTA protocol) immediately after conditioning, before the package can re-equilibrate to ambient conditions
Also Read – Automotive & Transportation Testing Services: Standards, Safety & Compliance
Preconditioning for Paper and Corrugated Materials
For paper and corrugated board specimens specifically, TAPPI T402 and ASTM D685 specify a preconditioning step at low humidity (under 35% RH for 24 hours) before standard conditioning begins, ensuring the specimen approaches equilibrium moisture content from a consistent, known starting point rather than an uncontrolled one.
Industry Specifications Referencing Package Conditioning
- ASTM D4332: primary Conditioning standard
- ASTM D4169: performance testing standard that specifies D4332 conditioning as a prerequisite
- ASTM D685, TAPPI T402: paper/corrugated preconditioning standards
- ISTA test series: specify standard atmosphere conditioning ahead of test program execution
Conclusion
Package conditioning doesn’t measure performance directly – its entire purpose is to put the package into a realistic, moisture-equilibrated state so that whatever mechanical or distribution test follows actually means something, which is why skipping or shortening the conditioning step undermines the credibility of the results that come after it.
Why is package conditioning important? Packaging materials can change when exposed to heat, cold, moisture, or dry conditions. Paperboard may lose strength in high humidity, plastics may become brittle at low temperatures, and adhesives may soften at elevated temperatures. Conditioning helps determine how these environmental changes affect package performance.
What types of packaging can be conditioned? Conditioning can be performed on corrugated boxes, paperboard cartons, plastic containers, flexible films, pouches, labels, cushioning materials, pallets, insulated shippers, and complete packaged products. The package may be empty, filled with a simulated payload, or tested with the actual product depending on the evaluation objective.
What conditions are used during package conditioning? The selected conditions depend on the relevant standard, product requirements, and expected distribution environment. Samples may be exposed to standard laboratory conditions, elevated humidity, dry heat, low temperature, freezing conditions, or combinations of temperature and humidity. Exposure duration may range from several hours to several days.
Is conditioning the same as environmental testing? No. Conditioning prepares the package for a later test by exposing it to a controlled environment. Environmental testing directly evaluates package performance while temperature, humidity, or pressure conditions are being applied. In some programs, packages remain conditioned throughout vibration, compression, impact, or other distribution tests.
How long should packaging be conditioned? Conditioning time depends on the packaging material, sample thickness, package size, and applicable procedure. Materials should generally remain in the controlled environment long enough to reach equilibrium or the required exposure duration. Large packages and moisture-sensitive materials may require more time than thin films or small components.
