Rotational Corner Drop Testing for Packaging (ASTM D6179)

What Is Rotational Corner Drop Testing?

Rotational corner drop testing evaluates how a packaged product responds to the specific rotational impact that occurs when one corner strikes a surface first and the package rotates through the impact rather than falling flat. This mimics real-world handling events — a package sliding off a conveyor, tipping from a hand truck, or shifting during a forklift maneuver — that standard flat-drop testing doesn’t fully replicate. It is referenced within ASTM D4169, ASTM D7386, and multiple ISTA series procedures (2A, 3A, 3B, 3E, 3F).

Equipment and Setup

The test uses a support block, a measuring device, and a flat, rigid impact surface such as concrete or steel. The support block is 3.5 to 4.0 inches in height and width, and at least 8 inches longer than the longest dimension of the package it supports.

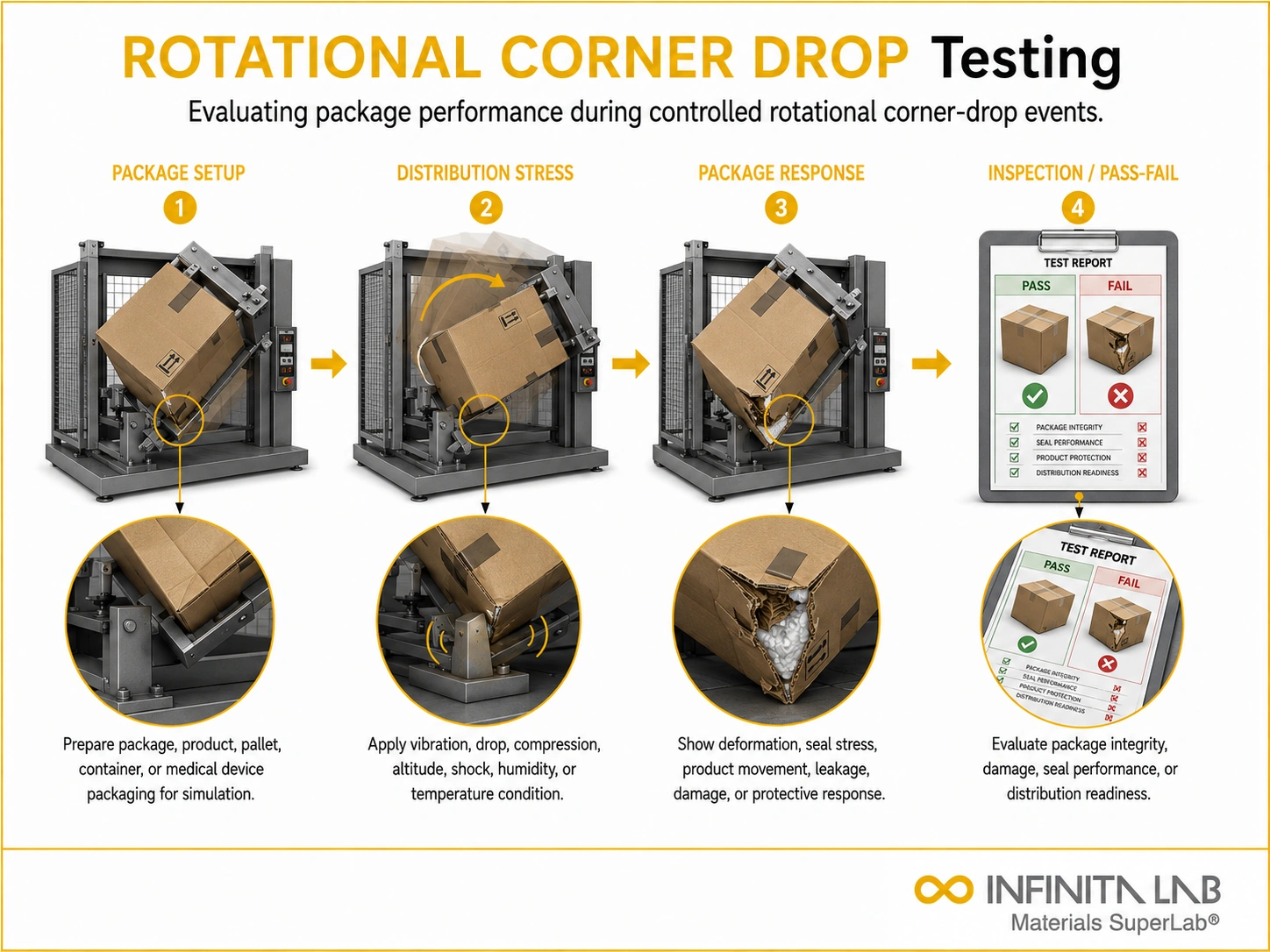

Test Procedure

• Condition the test units per ASTM D4332 (Conditioning Containers, Packages, or Packaging Components for Testing) to normalize temperature and humidity effects before testing begins
• Place one corner of the product on the support block, elevating the diagonally opposite corner
• Lift the opposite corner approximately 9 inches above the impact surface
• Release the elevated corner quickly, allowing the package to free-fall and rotate through the impact onto the rigid surface
• Repeat the sequence across multiple corners and orientations as specified by the applicable test protocol (ISTA or ASTM D4169)

Post-Test Documentation

A complete test report documents the dimensions and description of the test item, details of any simulated contents used, the drop height and angle for each drop performed, the date and instrumentation used, and a full description of the post-test condition of the packaging and contents — including any structural failures, deformations, or content damage observed.

Why It Matters

Identifying corner and rotational weaknesses during the design phase is dramatically cheaper than discovering them after a product launch, when packaging failures translate directly into damaged goods, warranty claims, and customer returns. Rotational corner drop qualification is particularly relevant for large or crated items — servers, network equipment, large displays, and precision instruments — where corner impacts during crate handling are a realistic and recurring distribution hazard.

Industry Specifications Referencing Rotational Corner Drop Testing

• ISTA 2A, 3A, 3B, 3E, 3F: distribution simulation series incorporating rotational drop sequences
• ASTM D4169: performance testing of shipping containers and systems
• ASTM D4332: environmental conditioning prior to testing
• ASTM D7386: performance testing of packages for single-parcel delivery systems

Conclusion

Rotational corner drop testing closes a specific gap that flat-drop and edge-drop sequences leave open — the twisting, rotating impact that large or heavy packages experience far more often in real distribution than a clean flat fall. For crated or palletized freight, it belongs alongside standard drop testing, not instead of it.
