Top 20 LCD Display Testing Methods for Performance & Reliability

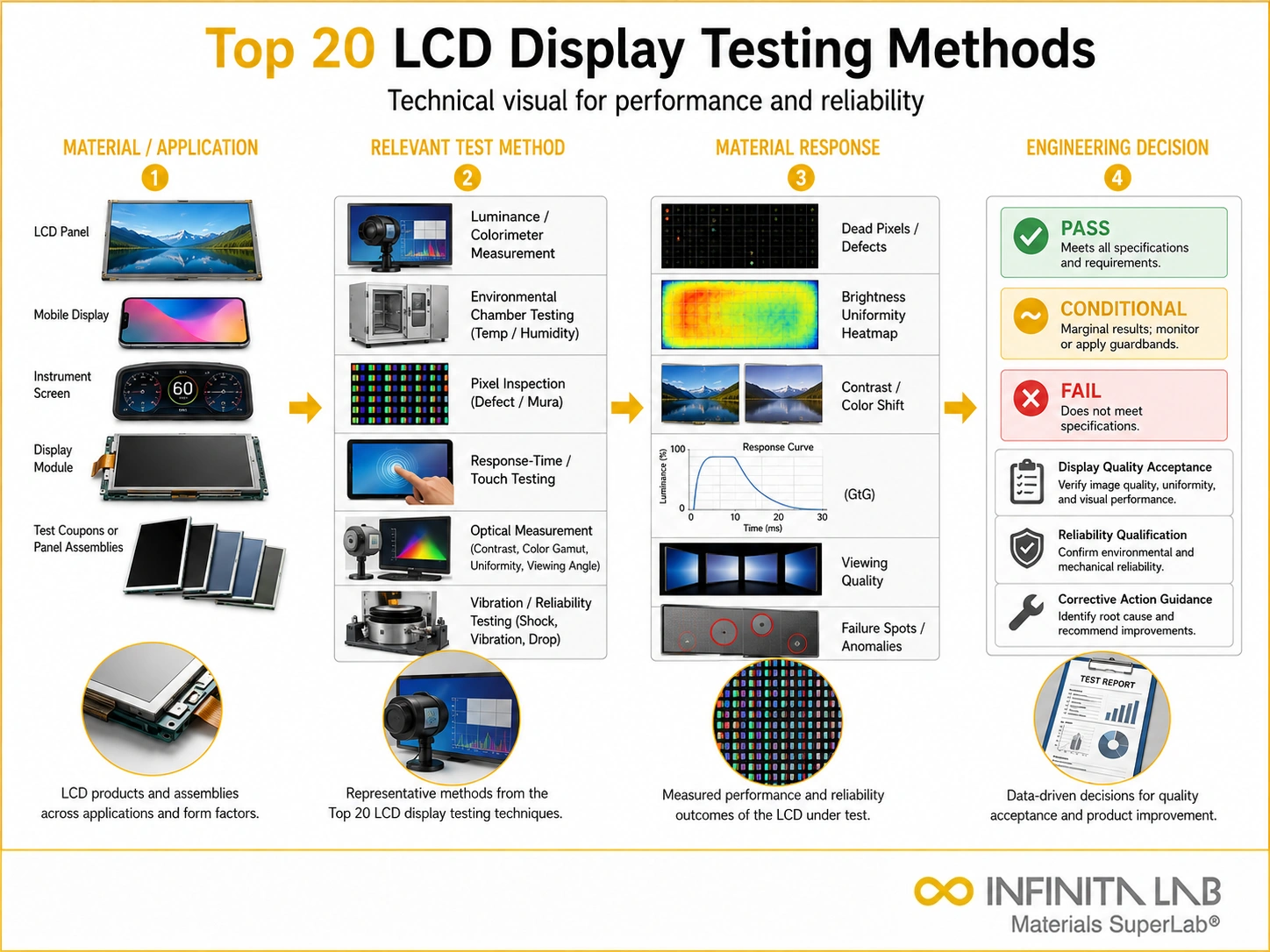

Representative Infinita Engineering Visual explaining the four-step workflow for Top 20 LCD Display Testing Methods for Performance & Reliability.What Is LCD Display Testing?
LCD testing evaluates liquid crystal display panels and modules – used in everything from smartphones to industrial control panels and automotive dashboards – for optical performance, electrical function, and environmental durability. Because LCDs rely on backlighting, polarisers, and liquid crystal cells working in precise combination, testing verifies both the optical output and the underlying electronic driving circuitry.
Why LCD Display Testing Matters
- Confirms brightness, contrast, and colour performance meet specification
- Verifies response time and viewing angle for intended application
- Ensures reliability under temperature extremes and mechanical stress
- Detects defects such as dead pixels or backlight non-uniformity
Top 20 LCD Display Testing Methods
- Luminance Testing – Measures brightness output in nits/cd/m² across the display surface.
- Contrast Ratio Testing – Evaluates the difference between the brightest white and darkest black the display can produce.
- Colour Gamut and Accuracy Testing – Measures how accurately the display reproduces a defined colour space (e.g., sRGB, DCI-P3).
- Viewing Angle Testing – Evaluates brightness and colour shift as the viewing angle changes from perpendicular.
- Response Time Testing – Measures pixel transition speed, important for motion clarity in video and gaming applications.
- Backlight Uniformity Testing – Detects brightness variation (mura) across the backlight and panel surface.
- Dead Pixel / Defect Testing – Identifies stuck or non-functioning pixels across the panel.
- Flicker Testing – Detects backlight or driving-circuit flicker that can cause visible discomfort or eye strain.
- Touch Panel Sensitivity and Accuracy Testing – For touchscreen LCDs, verifies accurate and responsive touch detection.
- Gamma Curve Verification – Confirms accurate grayscale reproduction across the brightness range.
- Operating Temperature Range Testing – Verifies display function across specified hot and cold operating extremes.
- Storage Temperature / Thermal Shock Testing – Evaluates panel survivability under extreme non-operating temperature exposure.
- Humidity Resistance Testing – Assesses performance and delamination risk under high-humidity conditions.
- Vibration and Mechanical Shock Testing – Evaluates durability for displays used in automotive, industrial, or portable applications.
- UV Exposure / Sunlight Readability Testing – Assesses visibility and material degradation under direct sunlight exposure.
- Electrical Safety Testing (IEC 62368) – Verifies protection against shock and fire hazards from the display’s driving electronics.
- Electromagnetic Compatibility (EMC) Testing – Confirms the display doesn’t emit or succumb to harmful electromagnetic interference.
- Polariser Adhesion and Durability Testing – Evaluates bond strength and long-term stability of the polarising films.
- Power Consumption Testing – Measures energy draw across brightness settings and content types.
- Long-Term Burn-In / Image Retention Testing – Evaluates whether static content causes lasting image retention over extended use.
LCD Display Test Method Comparison
Property Evaluated | Representative Method | Typical Standard |
|---|
Optical performance | Luminance, contrast, colour gamut | VESA display standards |
Response/motion | Response time, flicker | – |
Environmental durability | Temperature, humidity, vibration | IEC 60068 |
Electrical safety | Shock/fire protection | IEC 62368 |
Touch performance | Sensitivity, accuracy testing | – |
Applications by Industry
Consumer Electronics – Smartphones, tablets, and monitors tested for colour accuracy, response time, and touch performance. Automotive Dashboards & Infotainment – Extensive temperature range and vibration testing given cabin environmental extremes. Industrial Control Panels – Ruggedised testing for temperature, humidity, and vibration in factory environments. Medical Displays – Colour accuracy and luminance uniformity testing critical for diagnostic imaging applications.
Industry Standards Referencing LCD Display Testing
IEC 62368 (electrical safety), IEC 60068 (environmental testing), VESA Flat Panel Display Measurements Standard, ISO 13406-2 (legacy pixel defect classification)
Advantages and Limitations
Advantages: Verifies consistent optical quality across production; ensures reliability across demanding operating environments (automotive, industrial); detects manufacturing defects like dead pixels or backlight non-uniformity before shipment. Limitations: Optical testing requires calibrated, light-controlled environments to produce accurate and repeatable results; response time and flicker perception can vary somewhat by individual viewer sensitivity; full environmental and vibration test suites require significant equipment investment.
Conclusion
LCD quality depends on precise coordination between backlighting, liquid crystal cells, and driving electronics – testing across optical, electrical, and environmental dimensions is what confirms that coordination holds up not just in a lab, but across years of real-world use in everything from a phone in your pocket to a dashboard on the highway.
How is LCD brightness measured? Brightness is measured using a luminance meter or photometer and is typically reported in nits or cd/m².
How is colour accuracy evaluated? Colour accuracy testing measures chromaticity, colour gamut, white balance, and differences between displayed and reference colours.
How is viewing angle tested? Viewing angle testing measures changes in brightness, contrast, and colour when the display is viewed from different directions.
Why is backlight uniformity tested? Backlight uniformity testing detects bright spots, dark areas, light leakage, and uneven illumination across the screen.
Which reliability tests are used for LCD displays? Common tests include temperature cycling, humidity exposure, vibration, mechanical shock, drop, burn-in, and continuous operation testing.
