Introduction to STEM-EELS for Elemental Analysis

Scanning Transmission Electron Microscopy (STEM) combined with Electron Energy Loss Spectroscopy (EELS) represents one of the most powerful analytical capabilities in modern materials science — enabling simultaneous atomic-resolution structural imaging and sub-nanometer elemental and electronic structure mapping at dopant-level concentrations previously accessible only to bulk techniques requiring much larger sample volumes.

The ability to detect and image individual dopant atoms and ultra-low-concentration impurities within a specific device structure — a single transistor channel, a grain boundary, a thin-film interface — with atomic-scale spatial resolution is a transformative capability for semiconductor research, materials development, and failure analysis.

STEM Imaging — Atomic-Resolution Structural Characterization

HAADF-STEM (High-Angle Annular Dark-Field STEM)

In HAADF-STEM mode, electrons scattered to high angles are collected by an annular dark-field detector. The image intensity is approximately proportional to Z² (where Z is the atomic number) — heavier atoms scatter more strongly and appear brighter. This Z-contrast imaging mode directly reveals:

Atomic column positions in crystalline materials
Heavy dopant atoms (e.g., antimony in silicon, hafnium in oxide films) appear as bright spots within lighter host lattice columns
Interface structure and abruptness between different material layers
Strain fields from lattice distortions around defects, dopants, and misfit dislocations

ABF-STEM (Annular Bright-Field STEM)

ABF-STEM collects electrons at small angles — providing sensitivity to light elements (lithium, oxygen, nitrogen, carbon) that are nearly invisible in HAADF mode. This complementary mode is critical for:

Imaging oxygen positions in metal oxide ceramics and gate dielectrics
Tracking lithium distribution in battery electrode materials
Visualizing hydrogen positions in metal hydrides

EELS — Elemental and Electronic Structure Analysis

Principle of EELS

When a fast electron passes through or near an atom in the specimen, it can excite inner-shell electrons to higher energy states — transferring a characteristic energy to the transmitted electron. An EELS spectrometer measures the energy distribution of transmitted electrons — each element produces characteristic ionization edges at specific energy losses that serve as elemental fingerprints (Li-K at 54 eV, C-K at 284 eV, N-K at 401 eV, O-K at 532 eV, Si-L at 99 eV, etc.).

EELS Capabilities

Elemental Mapping: By collecting EELS spectra from every pixel in a STEM image (spectrum imaging), elemental maps at atomic resolution are generated — showing where each element is located with sub-angstrom precision.

Quantification: EELS peak areas, corrected for cross-sections and background, provide quantitative concentrations of elements at specific locations — capable of detecting dopants at concentrations below 0.01 atomic % when present in atomic columns.

Electronic Structure Analysis: The fine structure of EELS edges (ELNES — Electron Loss Near-Edge Structure) reflects the electronic bonding environment and oxidation state of the excited atom:

O-K ELNES distinguishes SiO₂ from Al₂O₃ from TiO₂
Ti-L ELNES identifies Ti⁴⁺ vs. Ti³⁺ oxidation states
N-K ELNES distinguishes metal nitrides from nitride glasses

Plasmon Analysis (Low-Loss EELS): Low-energy-loss features (0–50 eV) provide information on optical properties, bandgap, and local dielectric function — thereby characterizing the semiconductor band structure at nanometer-scale spatial resolution.

Application to Dopant and Ultra-Low Concentration Analysis

Semiconductor Dopant Imaging

Single dopant atoms — arsenic, antimony, or phosphorus in silicon; boron in silicon; hafnium in high-k dielectrics — can be directly imaged and mapped in HAADF-STEM images of thin TEM lamellae prepared by FIB. This capability enables:

Verification that dopant atoms are incorporated in intended lattice sites (substitutional vs. interstitial)
Direct measurement of dopant segregation to grain boundaries, interfaces, or defects
Correlation of atomic-scale dopant distribution with electrical device properties

Interface Chemistry in Semiconductor Devices

Gate oxide/semiconductor interfaces in modern FinFET and GAA transistors are only 1–2 nm thick — EELS mapping across these interfaces reveals:

Oxygen profile sharpness and interface state density correlate
Nitrogen distribution in nitrided gate oxides (Si-O-N)
Hafnium and aluminum distribution in HfAlO high-k dielectric stacks
Interface dipole layer chemistry in work function metal gate stacks

Battery Material Analysis

Li distribution in cycled Li-ion battery electrodes, changes in transition-metal oxidation states in NMC cathodes, and SEI layer chemistry on graphite anodes are characterized by STEM-EELS at nanometer-scale resolution — providing direct atomic-scale evidence of degradation mechanisms.

Ultra-Low Concentration Impurity Detection

EELS detection limits for elements in thin specimens are in the range of 0.01–0.1 atomic %, depending on the element and matrix, complementing bulk techniques (SIMS, ICP-MS) by providing spatially resolved information on the distribution of impurities within device structures.

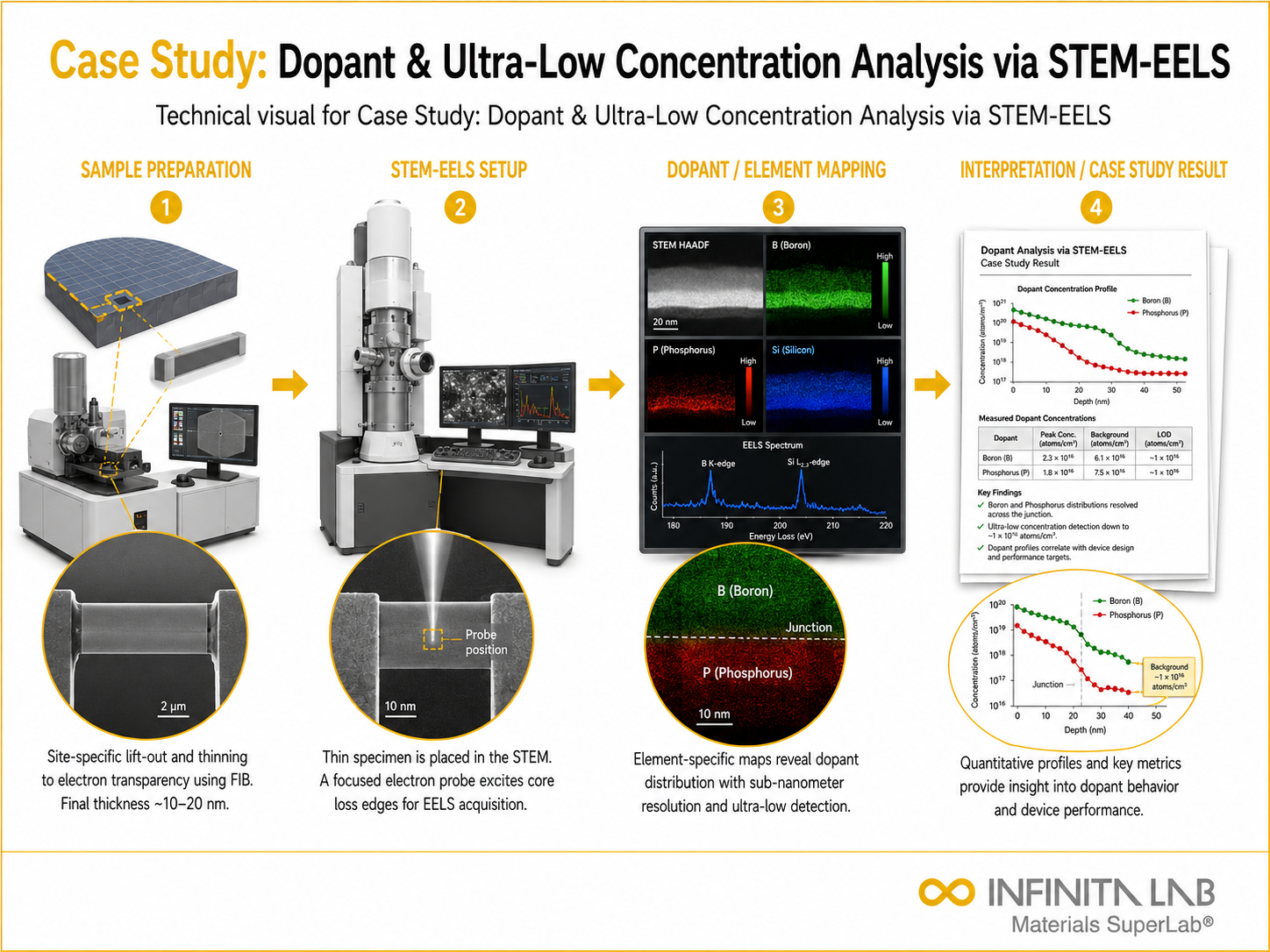

Specimen Preparation

STEM-EELS requires ultra-thin specimens (< 100 nm, ideally 30–50 nm) — typically prepared by FIB milling from specific device locations. Sample thickness uniformity, surface cleanliness, and absence of FIB-induced amorphization in the surface layer are critical for high-quality EELS data.

Conclusion

STEM-EELS — combining atomic-resolution HAADF and ABF structural imaging with sub-nanometer elemental mapping, oxidation state analysis, and dopant-level concentration quantification — stands as one of the most powerful characterization techniques in modern materials science, enabling direct visualization of individual dopant atoms, interface chemistry, and degradation mechanisms in semiconductor devices, battery electrodes, and advanced thin-film materials. Selecting the right imaging mode, EELS acquisition parameters, and specimen preparation approach for the specific material system and analytical question is what determines whether STEM-EELS delivers the atomic-scale structural and chemical insight needed to correlate nanoscale material properties with device performance — making it an indispensable tool for semiconductor research, failure analysis, and next-generation materials development.
