Residual Stresses in Metals: Causes, Effects & Measurement Methods

Written by Rahul Verma | Updated: April 27, 2026

XRD diffractometer performing residual stress measurement on metal surface — X-ray diffraction residual stress measurement in welded metal component at Infinita Lab

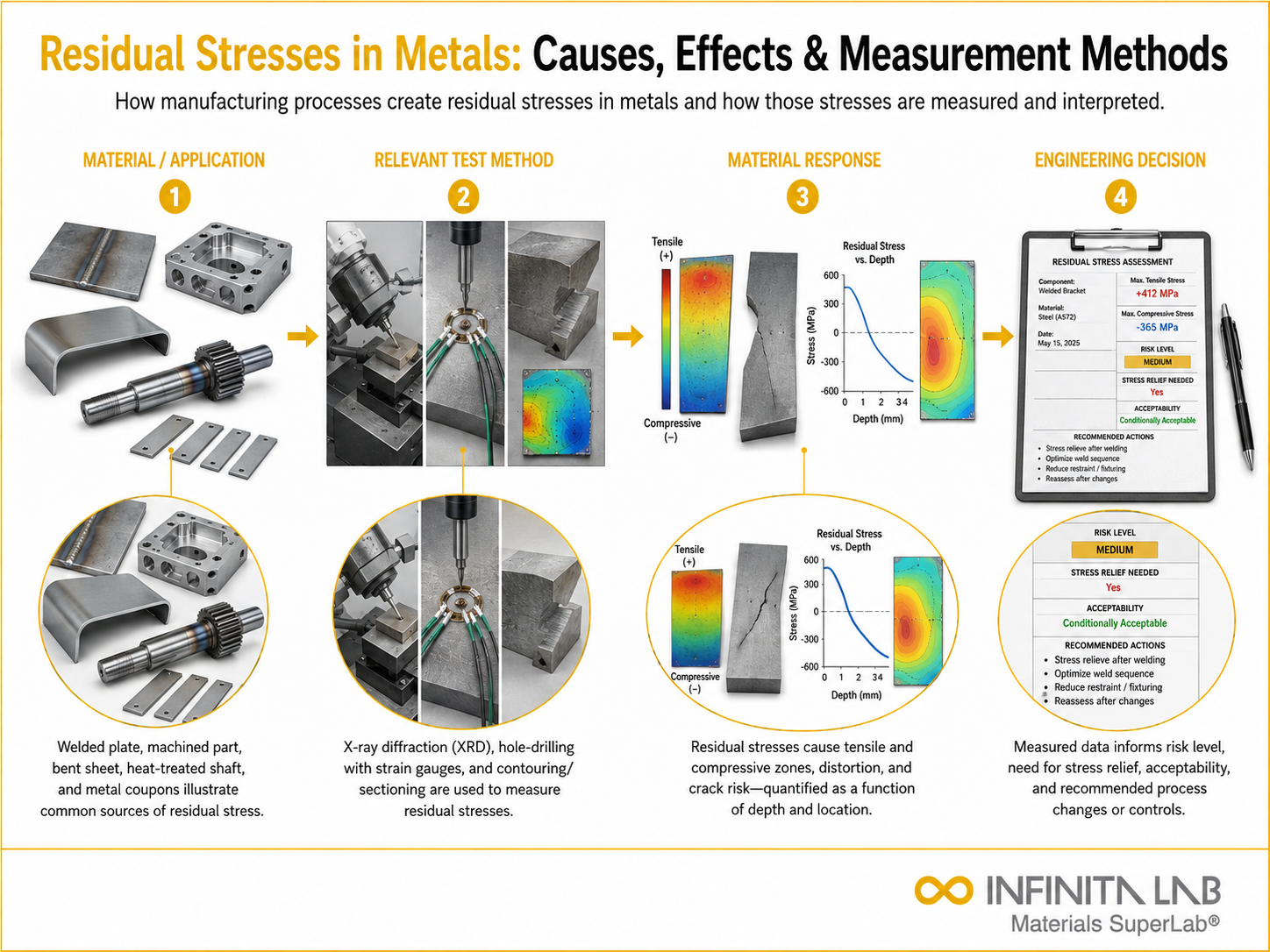

Residual Stress in Metallic Systems

Virtually every metallic component used in engineering carries residual stress from its manufacturing history. Casting, forging, rolling, machining, welding, heat treatment, surface finishing, and mechanical deformation all introduce non-uniform plastic deformation or thermal gradients that leave self-equilibrating stress fields in the final part. These residual stresses cannot be seen, are not captured by conventional mechanical testing of material specimens, and are typically absent from finite element structural models — yet they govern fatigue crack initiation, stress corrosion cracking, and dimensional stability in service.

This blog covers the primary mechanisms by which residual stresses arise in metals, their consequences for component performance, and the engineering methods used to measure and control them across the aerospace, automotive, power generation, and precision manufacturing industries.

Primary Mechanisms of Residual Stress in Metals

Thermal Processing: Quench and Temper

Quench hardening of steel creates residual stress through two simultaneous mechanisms:

Thermal gradient during quench: Surface cools rapidly, contracts, and is placed in tension by the still-hot core — then as the core cools and contracts, it compresses the already-hardened surface, ultimately leaving compressive residual stress at the surface in many quench configurations
Martensitic transformation volume expansion: Transformation from austenite to martensite involves ~4% volume expansion. Surface transforms first (cooler), expands, and is subsequently compressed by the transforming (expanding) core — reinforcing the compressive surface residual stress that is central to the fatigue performance advantage of case-hardened steels

Welding

Weld thermal cycles create among the most severe residual stress distributions in engineering practice:

The weld pool (liquidus) is stress-free; as it solidifies and contracts, it develops tensile residual stress restrained by the surrounding cold base metal
HAZ regions heated above the yield temperature are plastically compressed (upsetting) during heating, then develop tensile residual stress during cooling as they try to contract against the restraint of the base metal
Final distribution: tensile residual stress in the weld and HAZ (longitudinal to the weld) balanced by compressive residual stress in the base metal remote from the weld

Machining

Machining introduces residual stress in the surface layer through two competing mechanisms:

Thermal mechanism: High cutting temperatures generate tensile residual stress at the machined surface through thermal expansion of the surface layer, which then contracts on cooling
Mechanical mechanism: Plastic deformation in the chip formation zone creates compressive residual stress at the machined surface

The balance between thermal and mechanical effects depends on cutting speed, feed rate, tool geometry, and cooling — abusive grinding (high temperature, no coolant) generates tensile residual stress that severely degrades fatigue life; optimized cutting parameters maintain compressive or neutral residual stress.

Cold Working and Shot Peening

Controlled plastic deformation is deliberately introduced to create beneficial compressive surface residual stress:

Shot peening (MIL-S-13165, SAE J441): Compressive residual stress in the range of −200 to −800 MPa extending to a depth of 0.2–0.5 mm — extending fatigue life of aircraft structural components, gears, springs, and turbine disks by 2–10×
Deep rolling / burnishing: Higher-energy process producing compressive residual stress to greater depth (0.5–2 mm) — used for crankshafts, connecting rods, and other high-fatigue-cycle components
Autofrettage: Hydraulic or mechanical pressurization of gun barrels and pressure vessels beyond yield — creating compressive residual stress at the bore that dramatically increases cyclic pressure capacity

Consequences of Residual Stress on Metallic Component Performance

Fatigue Life

Compressive surface residual stress suppresses fatigue crack opening during the tensile portion of the load cycle — increasing the effective stress intensity range ΔK_eff required to propagate a crack and extending initiation life. Tensile residual stress has the opposite effect — reducing fatigue life proportionally to the tensile residual stress magnitude.

Stress Corrosion Cracking (SCC) and Hydrogen Embrittlement

Tensile residual stress in the presence of a corrosive environment and a susceptible alloy creates conditions for SCC — where the combined electrochemical and mechanical driving force initiates and propagates cracks at stresses below the macroscopic yield strength. Weld HAZ SCC in stainless steel (IGSCC), SCC of high-strength aluminum alloys, and delayed fracture of high-strength steel fasteners from hydrogen embrittlement are all driven by tensile residual stress in combination with material susceptibility and environment.

Dimensional Stability

Residual stress causes distortion (warping, springing) when material is removed by machining — the removal of stressed material allows the remaining stress field to find a new equilibrium position. High residual stress in precision aerospace components, molds, and precision shafts causes unacceptable dimensional change after final machining — managed by stress relief annealing and controlled manufacturing sequences.

Residual Stress Control and Mitigation

Stress relief annealing: Heating below recrystallization temperature — allows dislocation recovery to reduce residual stress without changing microstructure
Vibratory stress relief: Exciting resonant vibration in the component — redistributes residual stress through low-level plastic strain; less effective than thermal stress relief but applicable to non-heat-treatable structures
Peen forming: Controlled shot peening of aircraft wing skins to create deliberate aerodynamic curvature — combining structural benefit with forming capability
Post-weld heat treatment (PWHT): Required by pressure vessel codes (ASME Section VIII) for carbon steel welds above defined wall thickness — reduces weld residual stress to acceptable levels for corrosion and fatigue-critical service

Conclusion

Residual stresses in metals are not merely an academic consideration — they are active participants in every fatigue, fracture, and corrosion event in metallic structures and components. Engineers who understand residual stress origins, magnitudes, and management methods can design manufacturing processes that exploit beneficial compressive residual stress and eliminate damaging tensile residual stress — building the fatigue life and corrosion resistance margin that separates reliable long-life components from premature failures.

Partnering with Infinita Lab for Residual Stress Analysis and Metal Testing

Infinita Lab addresses the most frustrating pain points in the residual stress measurement process: complexity, coordination, and confidentiality. Our platform is built for secure, simplified support. From XRD sin²ψ measurement to blind hole drilling, neutron diffraction coordination, and comprehensive metallurgical analysis — Infinita Lab orchestrates every detail, fast, seamlessly, and behind the scenes.

Looking for a trusted partner to achieve your research goals? Schedule a meeting with us, send us a request, or call us at (888) 878-3090 to learn more about our services and how we can support you. Request a Quote

Frequently Asked Questions (FAQs)

How does autofrettage improve the fatigue life of gun barrels and pressure vessels?

Autofrettage applies hydraulic or mechanical pressure that yields the bore material beyond its elastic limit — plastically expanding it. Upon pressure removal, the elastic outer material compresses the bore, creating large compressive residual stress (up to −1,000 MPa in high-strength steel) that suppresses fatigue crack opening during cyclic pressure loading, dramatically increasing cyclic pressure capacity and service life.

What is the difference between thermal stress relief and vibratory stress relief?

Thermal stress relief heats the component to 550–700°C (for carbon steels), allowing dislocation recovery — reducing residual stress by 50–80%. Vibratory stress relief uses mechanical resonance vibration to redistribute residual stress through micro-plastic deformation at stress concentrations — achieving 20–40% reduction without heating. Thermal relief is more effective; vibratory relief is used for large structures impractical to heat uniformly.

How does machining-induced tensile residual stress affect fatigue life?

Tensile residual stress at the machined surface adds directly to the maximum tensile stress during the fatigue cycle — effectively increasing the stress ratio R and reducing the available fatigue endurance margin. In high-strength steels, even moderate tensile residual stress from aggressive grinding can reduce fatigue strength by 20–40% and promote surface crack initiation at stress levels below the design fatigue limit.

What post-weld treatment most effectively reduces weld residual stress?

Post-weld heat treatment (PWHT) by furnace or local induction heating is the most effective method — reducing weld longitudinal residual stress from near-yield levels to less than 10–20% of yield strength. ASME Section VIII mandates PWHT for carbon steel pressure vessel welds above defined thickness and for specific service environments (hydrogen, wet H₂S) where weld residual stress drives stress corrosion cracking and hydrogen embrittlement.

Can residual stress cause a component to fail without any applied external load?

Yes — in extreme cases. Quench cracking in high-carbon steels occurs during rapid quenching when tensile residual stress in the core exceeds the material's brittle fracture strength — catastrophic cracking with no external load applied. Stress corrosion cracking under sustained residual stress in aggressive environments, and hydrogen-induced delayed fracture in high-strength steel fasteners, are service failure modes driven entirely or predominantly by residual stress without additional external loading.
