Package Handling Testing: Drop, Vibration & Compression Standards
Aerospace corrosion testing per MIL-STD-810 evaluating alloy and coating protection performanceWhat Is Package Handling Testing?

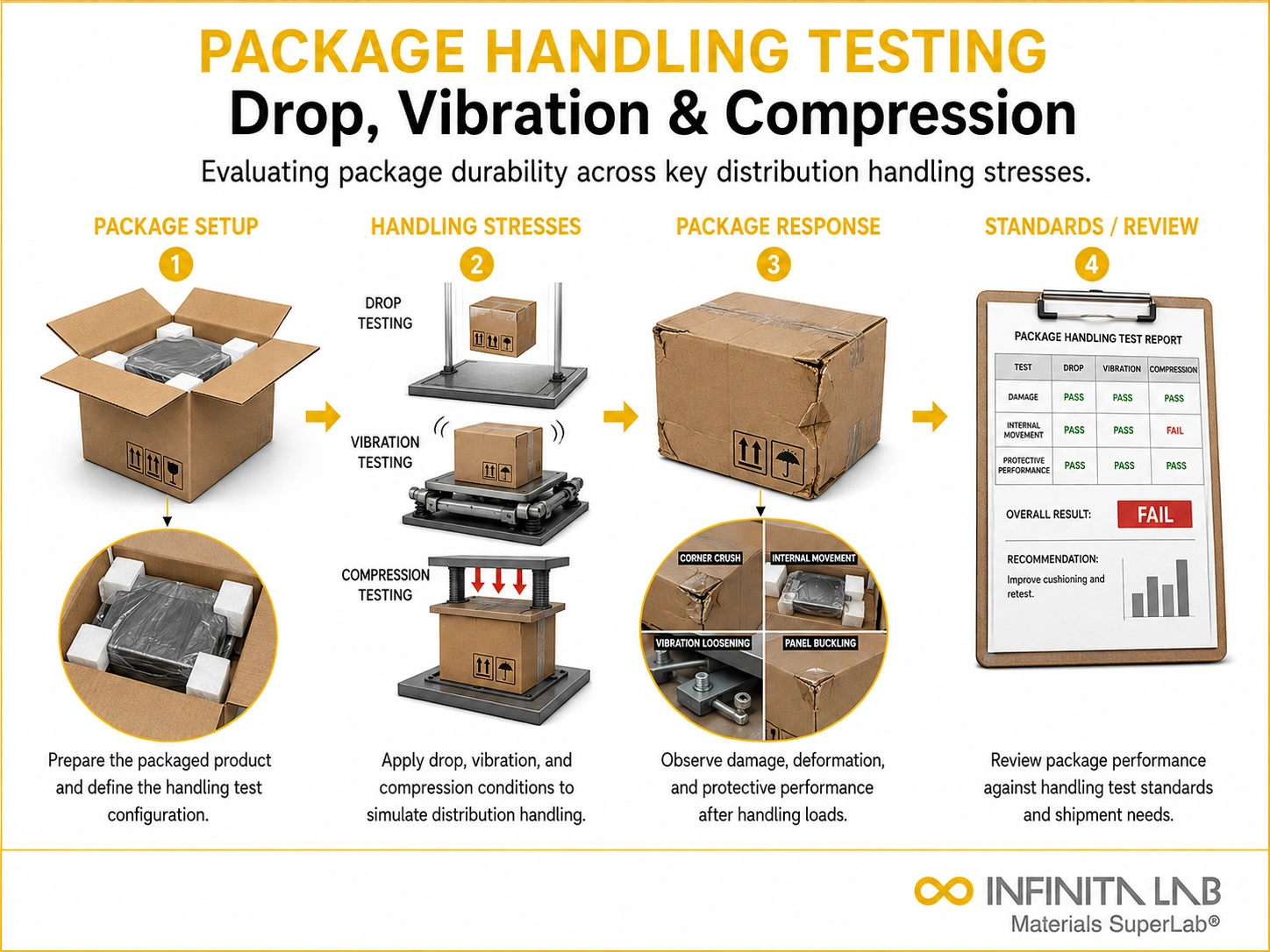

Package handling testing evaluates a packaged product’s ability to withstand mechanical hazards encountered during manual and mechanical handling throughout the distribution chain — warehouse operations, carrier handling, transit, and last-mile delivery. These hazards include drops from various heights, impacts, compression under stacking loads, vibration from vehicles, and the combined effects of multiple sequential handling events.
Package handling testing provides the objective performance data needed to validate that a package adequately protects its contents from origin to destination — a critical requirement across the electronics, medical device, consumer product, and industrial component industries.
Mechanical Hazards in the Distribution Environment
Drop and Impact
Packages are dropped during handling events — palletizing, depalletizing, conveyor transfers, and loading operations. Drop heights range from 0.3 m for pallet-level drops to 1.5 m for small parcel handling. The ASTM D5276 (drop test for loaded containers) and ISTA procedures specify drop heights, orientations (face, edge, corner), and sequences based on package weight and distribution mode.
Compression (Stacking)
Packages stored in warehouses or stacked in truck trailers experience sustained compressive loads from packages above. ASTM D642 (compressive resistance of shipping containers) measures the load at which a package crushes — and the sustained load it can withstand over time without significant deformation (creep compression).
Vibration
Road, rail, and air transport expose packages to continuous vibration across a broad frequency range. Random vibration (ASTM D4728) and resonance dwell testing reproduce the frequency content and acceleration levels measured in actual transport vehicles — revealing resonant frequencies of the package system where fatigue failures and product movement occur.
Rotational (Eccentric) Drop Testing
Modern large-appliance and furniture packages are increasingly tested using rotational drop methods — in which the package corner contacts the floor while the package is rotating, producing combined impact and torsional loading representative of “tip-over” handling events. ASTM standards for rotational corner, edge, and flat drop testing define the specific geometries and drop conditions.
ASTM D4169: Distribution Cycle Standard
ASTM D4169 (Performance Testing of Shipping Containers and Systems) is the most widely referenced packaging test standard in North America. It defines:
- Assurance Level: The rigor of the test (Level I = highest rigor for sensitive/high-value products; Level II = standard; Level III = less demanding)
- Distribution Cycle: A sequence of test elements (atmospheric conditioning, compression, vibration, drop) applied in a defined order at defined intensities
- Hazard Elements: Drop height, vibration profile, compression load — all linked to the weight of the shipping unit and the distribution mode (parcel carrier, LTL, truckload, air freight)
Product Condition Assessment After Testing
The purpose of handling testing is not only to evaluate the package — it is to verify that the product inside survived in an acceptable condition. Post-test product inspection protocols define:
- Functional testing of electronic or mechanical products for operational damage
- Cosmetic inspection for scratches, dents, or finish damage
- Dimensional inspection for deformation
- Documentation of any product damage relative to a pre-test baseline
Industries Most Dependent on Package Handling Testing
- Consumer electronics: Smartphones, laptops, and audio equipment require validated package protection from the manufacturer to the end consumer.
- Medical devices: Sterile medical devices must arrive with package integrity intact — a damaged seal creates sterility breach risk
- Automotive components: Engine parts, sensors, and assemblies shipped globally must survive multi-modal distribution without damage
Conclusion
Package handling testing is the definitive proof that a package design works — translating engineering calculations and material specifications into verified performance data under realistic distribution hazards. Organizations that implement systematic handling test programs reduce field damage rates, warranty costs, and customer complaints while building confidence in their supply chain packaging systems.
Infinita Lab: Your Material Testing Partner
Contact Infinita Lab for package handling and distribution testing with major benefits: end-to-end testing management, faster turnaround, reduced administrative burden, confidence in accurate results, reduced vendor coordination stress, enhanced product reliability reputation, and R&D managers focused on core engineering rather than testing logistics.
Looking for a trusted partner to achieve your research goals? Schedule a meeting with us, send us a request, or call us at (888) 878-3090 to learn more about our services and how we can support you. Request a Quote
Frequently Asked Questions (FAQs)
What drop heights are specified for parcel carrier distribution testing? ASTM D4169 Assurance Level II for small parcels under 45 kg specifies drop heights ranging from 0.45 m for large heavy packages to 0.9 m for packages under 10 kg. ISTA 2A specifies similar heights. Drop height scales with package weight — heavier packages are handled with mechanical equipment and experience lower drop heights.
How many drops are required in a standard ASTM D4169 distribution test? ASTM D4169 drop sequences depend on the distribution cycle selected. A typical Cycle 13 (parcel carrier) sequence includes drops on one face, one edge, and one corner — three to ten individual drop events depending on the assurance level and package configuration.
What is the difference between ASTM D4169 and ISTA 2A testing? ASTM D4169 is performance-based — defining hazard intensities linked to actual distribution environment data. ISTA 2A is prescriptive — specifying fixed test parameters regardless of the specific distribution lane. ASTM D4169 is preferred when packaging is optimized for a specific distribution mode; ISTA is widely used for general market readiness testing.
Can vibration testing reveal product damage that drop testing misses? Yes. Vibration testing reveals cumulative fatigue damage, resonance-driven product movement within packaging, and progressive seal fatigue that drop testing does not capture. Many product failures in transit — cracked solder joints in electronics, resonance-amplified component loosening — are exclusively vibration-driven damage modes.
Is package handling testing required for medical device packaging? Yes. ISO 11607 (Packaging for Terminally Sterilized Medical Devices) and ASTM D4169 are required for medical device distribution packaging validation. The package must maintain sterile barrier integrity after the full ASTM D4169 distribution cycle — combining handling hazards with conditioning — as a regulatory submission requirement.
