Adhesion Strength & Mechanical Failure: Testing Methods & Root Cause Analysis

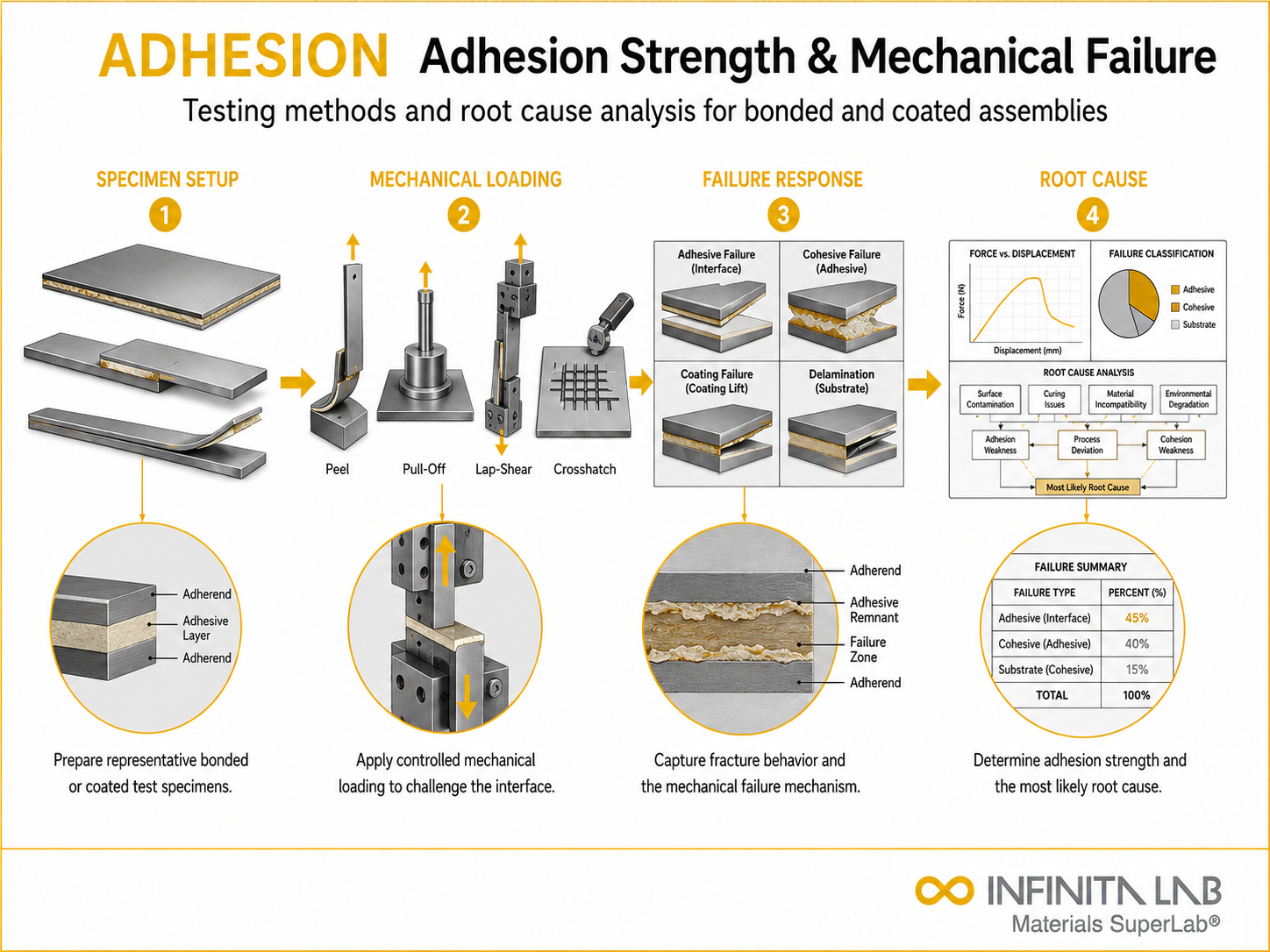

Adhesion strength testing per ASTM D4541 pull-off method measuring coating bond to substrateUnderstanding Adhesion in Material Systems
Adhesion is the tendency of dissimilar surfaces to cling together when brought into contact, driven by intermolecular forces — van der Waals interactions, electrostatic attraction, mechanical interlocking, and covalent or ionic chemical bonding. In engineered systems, adhesion strength determines the durability and reliability of coatings, adhesive bonds, laminated structures, and surface treatments. When adhesion fails, it causes coating delamination, adhesive joint fracture, and thin film disbonding — failures that can be catastrophic in the coatings, automotive, electronics, and aerospace industries.
Mechanisms of Adhesion
Mechanical Interlocking
On rough or porous substrates, adhesive or coating material penetrates into surface features, creating mechanical keying. Blasted metal surfaces, corona-treated polymers, and anodized aluminum all increase adhesion primarily through surface roughening and increased contact area. Adhesion by mechanical interlocking is particularly important for paint adhesion on sandblasted steel and concrete.
Chemical Bonding
Silane coupling agents, adhesion promoters, and surface functionalization create covalent bonds between coating and substrate. These chemical bonds are far stronger than van der Waals forces and are essential for durable adhesion in aggressive environments. Silane adhesion promoters on glass fiber-epoxy interfaces are a classic example — the silane provides bifunctional bonding between the inorganic glass surface and organic epoxy matrix.
Diffusion Bonding
In polymer-on-polymer systems, chain segment interdiffusion across the interface creates entanglements that resist separation. Diffusion bonding is temperature-dependent and determines the bond quality in co-extruded multilayer films, heat-sealed packaging, and polymer welding.
Causes of Adhesion Failure
Surface Contamination
Oil films, mold-release residues, moisture, and particulate contamination on substrate surfaces prevent intimate contact and chemical interaction between the coating/adhesive and the substrate. Even a monolayer of contamination can reduce bond strength by orders of magnitude. XPS, ToF-SIMS, and contact angle measurement detect surface contamination before and after surface preparation.
Thermal Mismatch and Residual Stress
When bonded materials have significantly different coefficients of thermal expansion (CTE), thermal cycling generates interfacial shear stresses proportional to the CTE difference, bond line thickness, and temperature excursion. In multilayer electronics, CTE mismatch-driven stress is the primary driver of solder joint fatigue and underfill delamination.
Environmental Degradation
Moisture, UV radiation, chemicals, and elevated temperature degrade adhesion over time by hydrolyzing chemical bonds (especially in silane-glass systems), oxidizing adhesive layers, reducing polymer molecular weight, and promoting corrosion at metal-adhesive interfaces. Accelerated aging tests quantify adhesion durability under simulated service environments.
Testing and Analysis Methods
Pull-Off Adhesion Test (ASTM D4541 / ISO 4624)
A dolly is bonded to the coating surface and pulled perpendicular to the substrate using a calibrated portable pull-off tester. The pull-off strength (MPa) and failure mode are reported. Substrate failure indicates adequate adhesion; adhesive failure at the coating-substrate interface indicates bond inadequacy.
Cross-Cut Adhesion Test (ASTM D3359)
A lattice pattern is cut through the coating to the substrate using a cross-cut tool. Adhesive tape is applied and removed, and the coating removal percentage is rated from 5B (no removal) to 0B (>65% removal). Rapid, economical, and widely used for paint and coating qualification.
Lap Shear Test (ASTM D1002)
Overlapping substrates bonded with adhesive are pulled in tension, applying shear stress to the bond line. Lap shear strength and failure mode characterize the structural adhesive performance under the dominant service loading condition for overlap joints.
Conclusion
Adhesion plays a significant role in the performance and durability of coatings, bonded assemblies, and layered materials. Adhesion performance is achieved through mechanisms such as mechanical interlocking, chemical bonding, and diffusion. Adhesion failure can also be due to contamination, thermal stresses, or environmental conditions. Adhesion strength can be determined using standardized tests and surface analysis techniques to provide reliability in extreme conditions.
Why Choose Infinita Lab for Adhesion Strength and Failure Analysis?
Infinita Lab offers comprehensive adhesion testing services across a nationwide network of accredited labs, with project management, confidentiality, and rapid turnaround. Trust Infinita Lab for pull-off, lap shear, cross-cut, and advanced surface analysis needed to resolve adhesion failures.
Looking for a trusted partner to achieve your research goals? Schedule a meeting with us, send us a request, or call us at (888) 878-3090. [Request a Quote]
Frequently Asked Questions
What is the most common cause of coating adhesion failure in industrial applications? Inadequate surface preparation is the leading cause — residual oil, moisture, rust, mill scale, or contamination prevents intimate adhesive contact and chemical bonding between coating and substrate. Studies consistently show that >80% of coating failures are attributable to surface preparation deficiencies rather than coating formulation or application issues.
What is the difference between adhesive failure and cohesive failure? Adhesive failure occurs at the coating-substrate or adhesive-substrate interface — a clean separation leaving one surface bare. Cohesive failure occurs within the adhesive or coating layer itself — residue visible on both surfaces. Cohesive failure generally indicates adequate surface adhesion; the bulk material is weaker than the interface.
How does surface roughness affect adhesion strength? ncreased surface roughness generally improves adhesion by increasing the true contact area, providing mechanical interlocking sites, and creating a fresh reactive surface free of contamination. However, excessive roughness can trap air, reduce adhesive wetting, and create stress concentration sites that reduce fatigue adhesion durability.
What analytical technique best identifies surface contamination causing adhesion failure? X-ray photoelectron spectroscopy (XPS) provides quantitative elemental and chemical state information from the outermost 5–10 nm of the surface — directly revealing contamination by silicone, hydrocarbon, fluoropolymer release agents, or oxide layers that cause adhesion failure. ToF-SIMS provides molecular-level contamination identification.
Can adhesion failure be predicted before it occurs in service? Accelerated durability testing — including thermal cycling, humidity aging, salt spray, and UV weathering — followed by adhesion testing (pull-off or cross-cut) predicts long-term adhesion durability. Finite element analysis of CTE mismatch stresses also predicts interfaces at risk of delamination under thermal loading.
