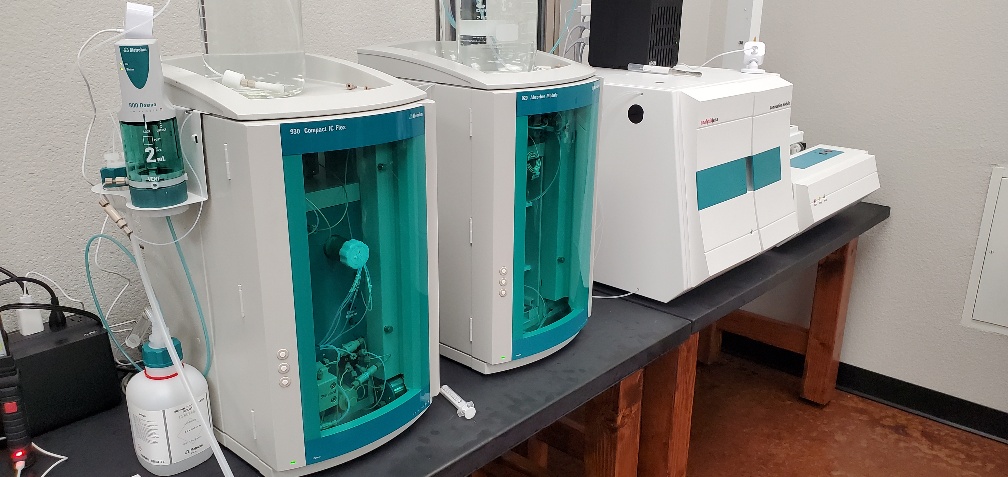

Combustion Ion Chromatography: Precision Halogen and Sulfur Analysis for Modern Analytical Challenges

In the pursuit of increasingly stringent quality standards and tighter regulatory limits across the analytical chemistry & environmental sector, conventional elemental analysis techniques sometimes fall short — particularly when halogen and sulfur determination at ultra-trace levels in complex polymer, electronic, and environmental matrices is required. Combustion Ion Chromatography (CIC) bridges this gap, combining the complete decomposition power of high-temperature combustion with the separation precision and detection sensitivity of ion chromatography to deliver uniquely capable elemental analysis.

What Is Combustion Ion Chromatography?

Combustion Ion Chromatography (CIC) is a hyphenated analytical technique that integrates two distinct processes:

Step 1 — Combustion: A precisely weighed sample is completely decomposed in a tube furnace at temperatures between 900°C and 1,100°C under an oxygen/argon carrier gas atmosphere. All halogens (F, Cl, Br, I) and sulfur in the sample are converted to their corresponding acids — HF, HCl, HBr, HI, and H₂SO₄/SO₂ — in the combustion gases.

Step 2 — Absorption and Ion Chromatography: The combustion gases are absorbed into an aqueous absorbing solution (typically dilute hydrogen peroxide to oxidize SO₂ to sulfate), and the resulting ionic solution is injected directly into an ion chromatograph. The IC separates fluoride, chloride, bromide, iodide, and sulfate anions with high resolution and quantifies each by suppressed conductivity detection.

This combination achieves simultaneous multi-halogen and sulfur determination with detection limits at the sub-ppm level — capabilities that neither combustion alone nor IC alone can deliver independently for solid sample matrices.

Why CIC Outperforms Conventional Halogen Analysis

Limitations of Alternative Methods

Oxygen bomb combustion (ASTM D808) — a classical method for halogen determination — requires large sample masses, involves manual, labor-intensive wet chemistry, and suffers from incomplete combustion for some high-fluorine or high-sulfur matrices.

XRF (X-ray fluorescence) — rapid and non-destructive, but lacks the sensitivity needed for sub-100 ppm halogen determination and cannot detect fluorine with most standard XRF instruments.

ICP-MS — excellent sensitivity for most elements but requires total dissolution of the sample matrix, which is often impractical for fluoropolymers, crosslinked resins, and ceramic-filled composites.

CIC advantages: complete matrix decomposition without dissolution, simultaneous multi-element determination, sub-ppm detection limits, applicable to virtually any solid or liquid matrix, and direct compatibility with IC quantification methods traceable to primary ionic standards.

Key Standards and Applications

ASTM D7359 — Total Fluorine, Chlorine, and Sulfur in Aromatic Hydrocarbons

ASTM D7359 specifies CIC methodology for total halogen and sulfur determination in aromatic petroleum products — addressing the need for trace contaminant analysis in chemical feedstocks and refinery streams.

IEC 62321-3-2 — Halogens in Polymers and Electronics (RoHS Compliance)

IEC 62321-3-2 specifies CIC as the reference method for total bromine and chlorine determination in polymer components — a critical RoHS compliance tool. The European RoHS Directive restricts polybrominated biphenyls (PBBs) and polybrominated diphenyl ethers (PBDEs) — and total bromine by CIC provides a fast screening result. Samples exceeding total bromine thresholds (900 ppm for Br or Cl) are escalated to GC-MS or LC-MS/MS for specific compound identification.

ASTM E776 — Fluorine in Organic Materials

ASTM E776 covers fluorine determination in organic matrices by pyrohydrolysis — a related combustion technique — with ion-selective electrode detection. CIC provides higher sensitivity and multi-halogen simultaneous determination compared to E776.

Semiconductor and Electronic Materials

In semiconductor manufacturing, trace halogen contamination at ppb levels in photoresists, dielectric films, and encapsulants causes corrosion of copper interconnects and device failures. CIC with specialized ultra-clean combustion systems achieves ppb-level F, Cl, and Br determination in high-purity electronic materials — a capability unmatched by other routine analytical methods.

CIC in Environmental Analysis

PFAS Precursor Screening

CIC provides total organic fluorine (TOF) measurement in water, soil, and biota samples — a critical parameter for PFAS screening. Since all PFAS compounds contain organic fluorine, total organic fluorine by CIC quantifies the total PFAS burden without needing to know which specific PFAS compounds are present. This serves as a complement to targeted LC-MS/MS PFAS analysis in environmental monitoring programs across the analytical chemistry & environmental sector.

Halogen in Waste and Biomass

For waste-to-energy operations and biomass combustion facilities, halogen content (particularly chlorine) in feedstocks determines HCl and dioxin/furan emission potential. CIC rapidly characterizes total chlorine in refuse-derived fuels, agricultural residues, and industrial waste streams — informing emission control strategies.

Conclusion

Combustion Ion Chromatography (CIC) is a powerful hyphenated analytical technique that combines high-temperature oxidative combustion with ion chromatographic separation, enabling precise quantification of halogens and sulfur in complex matrices where conventional methods fall short. Its ability to handle difficult sample types including polymers, electronic materials, petroleum products, pharmaceuticals, and environmental samples—while delivering low detection limits, minimal matrix interference, and traceable results—makes it an increasingly preferred method in modern analytical laboratories. Standardized under ASTM, ISO, and EN methods, CIC addresses growing regulatory demands for halogen and sulfur control in electronics manufacturing, environmental compliance, food safety, and material qualification, establishing itself as an essential technique in both routine quality control and advanced analytical workflows.

Why Choose Infinita Lab for Combustion Ion Chromatography?

Infinita Lab’s analytical chemistry laboratory provides Combustion Ion Chromatography (CIC) services for total halogen (F, Cl, Br, I) and sulfur determination in polymers, electronic materials, environmental samples, and petroleum products — supporting RoHS compliance screening per IEC 62321-3-2, PFAS total organic fluorine assessment, and ultra-trace contaminant analysis across the analytical chemistry & environmental industry. Our CIC capability combines validated combustion protocols with high-resolution IC detection to deliver results at sensitivities required by the most demanding regulatory and quality specifications. Contact Infinita Lab at infinitalab.com to discuss your CIC testing requirements.
