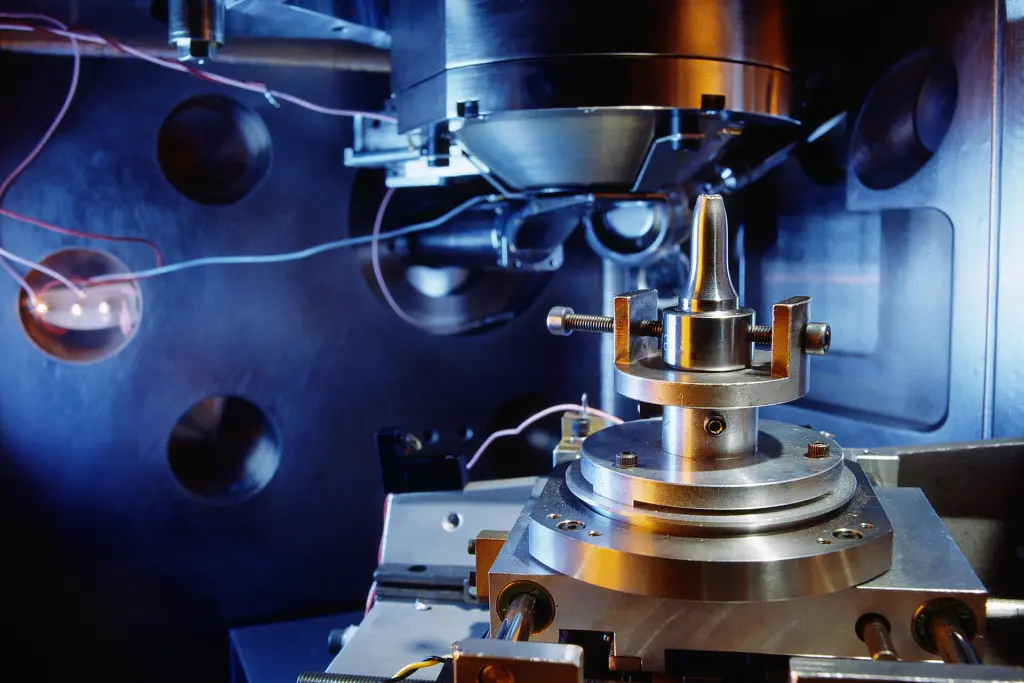

The Role of Microscopy Testing in Modern Quality Control| Guide to Microscopy Testing Methods & Material AnalysisMicroscopy testing encompasses a family of imaging techniques that reveal the structure, composition, and defects of materials at magnifications ranging from tens to millions of times natural size. From optical microscopy for routine metallographic inspection to electron microscopy for atomic-resolution analysis, microscopy is the cornerstone of materials characterization, failure analysis, quality control, and research across virtually every industry. For companies seeking microscopy testing at a US-based testing lab, Infinita Lab provides comprehensive microscopy and microanalysis through its accredited laboratory network.
Key Microscopy Techniques
Optical Microscopy
Light microscopy (5–2,000x) provides the first-line examination for metallographic microstructure per ASTM E3/E112, grain size measurement, inclusion rating per ASTM E45, coating thickness, and surface defect characterization. Brightfield, darkfield, polarized light, and DIC modes are used for different material types.
Scanning Electron Microscopy (SEM)
SEM (10–300,000x) provides high-resolution surface imaging with 1–10 nm resolution. Combined with EDS, SEM provides simultaneous topographic imaging and elemental analysis—essential for fracture surface analysis, particle characterization, and contamination identification.
Transmission Electron Microscopy (TEM)
TEM (up to 1,000,000x+) transmits electrons through ultra-thin specimens, providing atomic-resolution imaging of crystal structure, lattice defects, and interface chemistry for the semiconductor and advanced materials industries.
Atomic Force Microscopy (AFM)
AFM scans a nanoscale probe tip across surfaces, measuring topography with sub-nanometer height resolution. It characterizes surface roughness, thin-film morphology, and nanostructures without requiring a vacuum or conductive coatings.
Industry Applications
Microscopy testing serves semiconductor and electronics failure analysis, metallurgical quality control and heat treatment verification, pharmaceutical particle characterization, coating and thin film evaluation, forensic material identification, and biomedical device surface analysis.
Why Choose Infinita Lab for Microscopy Services?
Infinita Lab is a trusted USA-based testing laboratory offering microscopy services through an extensive network of accredited facilities across the USA. Infinita Lab is built to serve the full spectrum of modern testing needs—across industries, materials, and methodologies. Our advanced equipment and expert professionals deliver highly accurate and prompt test results, helping businesses achieve quality compliance and product reliability.
Looking for a trusted partner to achieve your research goals? Schedule a meeting with us, send us a request, or call us at (888) 878-3090 to learn more about our services and how we can support you. Request a Quote
Frequently Asked Questions (FAQs)
What types of microscopy are used in material testing? Optical microscopy, SEM, TEM, AFM, confocal microscopy, and stereo microscopy are the primary techniques, each offering different magnification ranges, resolution capabilities, and analytical information.
When is SEM needed instead of optical microscopy? SEM is needed when features are below 0.2 μm optical resolution, when elemental analysis (EDS) is required, or when high depth-of-field imaging of rough surfaces (fractures, particles) is necessary.
What ASTM standards use microscopy? ASTM E3 (preparation), E112 (grain size), E45 (inclusion rating), E1382 (image analysis), E407 (etching), B487 (coating thickness), and E2142 (automated inclusion analysis) rely on microscopy.
What is the resolution limit of each technique? Optical: ~200 nm. SEM: 1–10 nm. TEM: 0.05–0.2 nm (atomic resolution). AFM: sub-nanometer vertical, ~1–10 nm lateral. Higher resolution requires more complex specimen preparation and longer analysis time.
How is microscopy used in failure analysis? Microscopy identifies fracture mode (ductile, brittle, fatigue), crack origin, contamination, microstructural anomalies, manufacturing defects, and corrosion products—providing the visual evidence essential for root cause determination.
