ASTM D7834 Filling Material Shedding Testing for Paint Brushes
ASTM D7834 explains the method for testing the shedding properties of filling materials such as natural bristle and synthetic filament paint brushes. This method determines the ability of paint brushes to overcome the shedding process. SI units are not considered as standard units however, values are stated in inch-pound units.
TRUSTED BY
Precision-driven testing for dimensional accuracy and compliance
- Overview
- Scope, Applications, and Benefits
- Test Process
- Specifications
- Instrumentation
- Results and Deliverables
Overview
ASTM D7834 provides a standard test method for measuring the shedding of filling material (bristles, filaments, or fibers) from paint brushes during use. Brush shedding — the loss of bristles into the applied paint film — is a key quality defect that ruins painted surfaces and necessitates costly rework.
The test quantifies the number of bristles or filaments shed under standardized painting conditions, enabling manufacturers, specifiers, and quality control laboratories to compare brush quality and identify substandard products before use.
Scope, Applications, and Benefits
Scope
ASTM D7834 evaluates:
- Number of bristles/filaments shed per standardized painting session
- Shedding behavior of natural (hog hair) and synthetic filament brushes
- Comparative shedding performance across brush types and brands
- Effect of filling material securing method on shedding tendency
Applications
- Architectural paint brush quality control
- Industrial and maintenance painting brush qualification
- Brush manufacturer product development and QC
- Specification writing for painting contractor brush procurement
- Consumer product testing for retail paint brushes
Benefits
- Standardized, objective quantification of brush shedding
- Enables objective brand and product comparison
- Identifies manufacturing defects in the bristle attachment
- Reduces job-site rework from bristle contamination
- Applicable to flat, angled, and round brush configurations

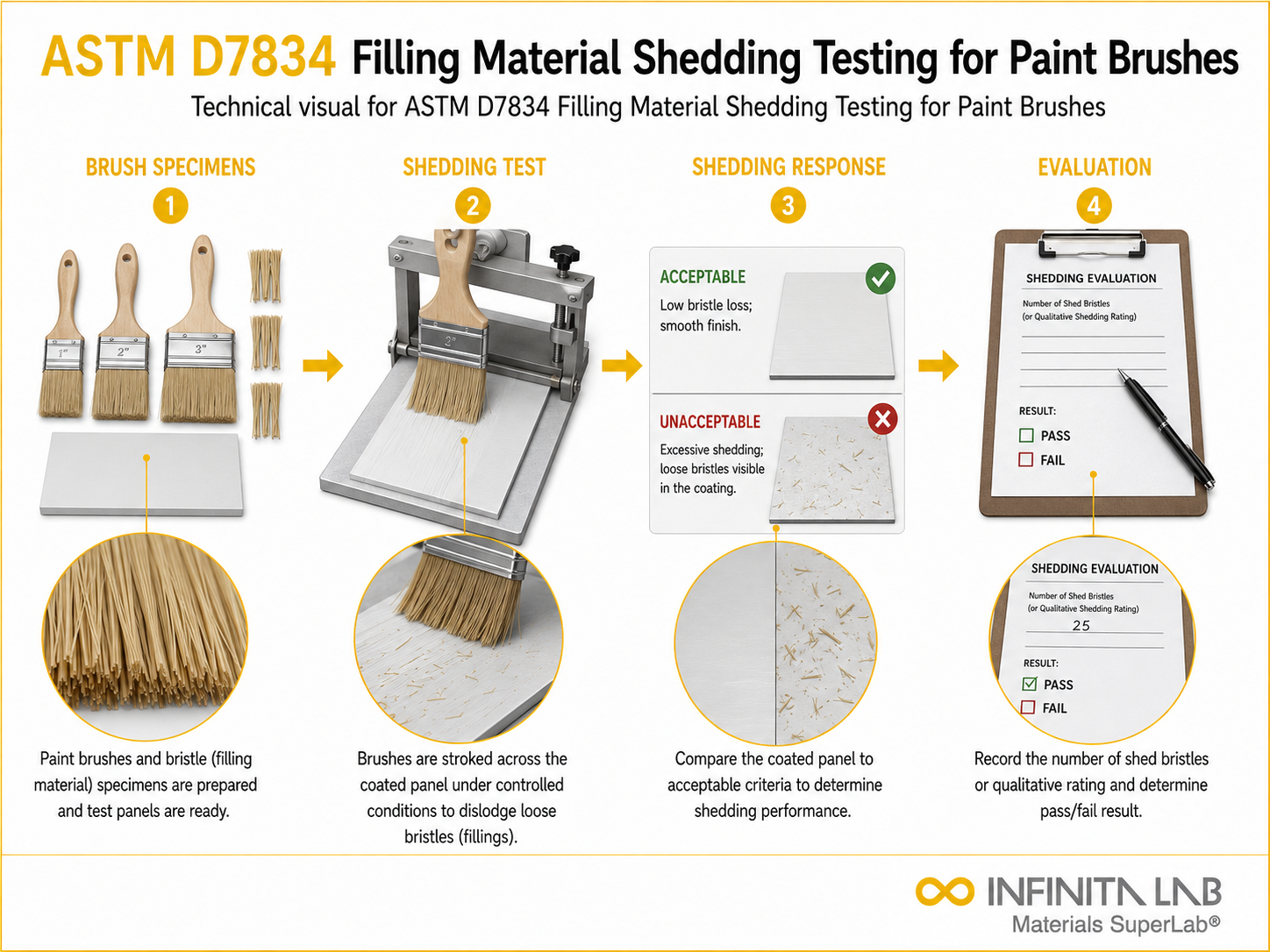

Test Process
Brush Conditioning
The brush is pre-wetted and worked through a standardized break-in strokes cycle in clean solvent or water (depending on brush type) to remove loose bristles.
1Test Application
The conditioned brush is loaded with a standardized paint and applied in defined strokes across a black contrast test panel under controlled pressure and angle.
2Shed Bristle Collection
The test panel is examined after drying; shed bristles embedded in the film are counted under illuminated magnification. Bristles on the panel surface are also counted.
3Reporting
The total number of shed bristles per standardized test session is reported and compared to a specification limit or reference brush.
4Technical Specifications
| Parameter | Details |
|---|---|
| Applicable Products | Flat, angled, and round paint brushes (natural and synthetic) |
| Test Paint | Standardized architectural latex |
| Break-In Strokes | Defined in ASTM D7834 |
| Examination Method | Illuminated magnification (fiber count) |
| Reporting Unit | Number of shed bristles per test session |
Instrumentation Used for Testing
- Black contrast test panels
- Standardized paint and measuring equipment
- Illuminated magnifying glass or low-power microscope
- Timing device and stroke count guide
- Analytical balance (optional, for bristle mass)
Results and Deliverables
- Total bristle shed count per test session
- Photographic documentation of shed bristles in film
- Comparison to reference brush or specification limit
- Pass/fail classification
- Full test report per ASTM D7834
Why Choose Infinita Lab for ASTM D7834?
Infinita Lab offers comprehensive ASTM D7834 testing services, a Comprehensive lab network, project management, confidentiality, and rapid turnaround. Trust Infinita Lab for your material testing needs, Faster test results, cost savings, and reduced administrative workload.
Looking for a trusted partner to achieve your research goals? Schedule a meeting with us, send us a request, or call us at (888) 878-3090 to learn more about our services and how we can support you. Request a Quote
Frequently Asked Questions
Bristle shedding results from inadequate epoxy or adhesive bonding in the ferrule, insufficient bristle packing density, or mechanical fatigue of bristle attachments. In synthetic brushes, poor thermobonding of filaments can also cause shedding under load.
Like roller covers, paint brushes typically shed more during the initial break-in period as loosely attached bristles are removed. ASTM D7834 includes a standardized break-in procedure to reflect in-use performance rather than initial out-of-the-box shedding.
Not necessarily. Both can shed if improperly manufactured. Natural hog bristle brushes with well-packed ferrule assembly shed very little. Poorly made synthetic brushes with inadequate adhesive bonding can shed as much or more than natural bristle brushes.
There is no universal industry standard limit, but high-quality professional brushes are typically expected to shed zero bristles or no more than 1–2 bristles per full test session. Specification limits are set by the purchaser or applicable product quality standard.
ASTM D7834 is specifically designed for bristle and filament-type brushes. Stain pads and foam brushes are more relevant to ASTM D7804 (roller cover shedding) or analogous test approaches for foam shedding characterization.
