Corrosion Analysis & Observation: Techniques, Tools & Lab Methods

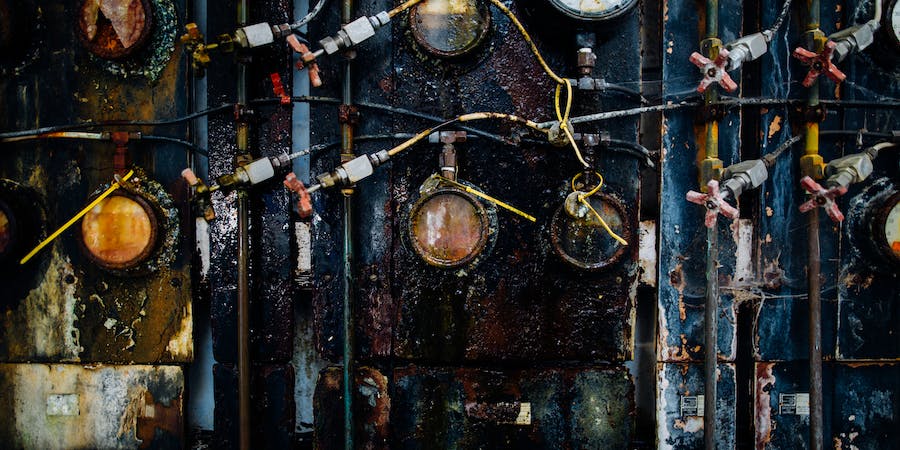

Corrosion analysis using SEM and EDS to characterize corrosion products and attack morphologyCorrosion — the electrochemical degradation of metals in reactive environments — manifests in dozens of morphologically and mechanistically distinct forms, each with characteristic visual features, preferential locations, and underlying chemical driving forces. Effective corrosion management begins with accurate corrosion analysis and observation — the systematic characterization of corrosion type, extent, and mechanism that provides the foundation for root-cause determination, remaining-life assessment, and remediation strategy. In the metals & materials industry, corrosion analysis is both a forensic discipline and a predictive engineering tool.
The Importance of Systematic Corrosion Observation
Visual observation is always the first step in corrosion analysis — and it is far more informative than a casual glance might suggest. The experienced eye identifies corrosion morphology that distinguishes, for example, uniform atmospheric corrosion (broad, shallow surface thinning) from pitting (localized deep attack), crevice corrosion (attack in shielded geometric features), or dealloying (selective dissolution of one alloy component producing a spongy, porous residue). Each of these morphologies implicates a distinct electrochemical mechanism, a distinct set of contributing factors, and a distinct remediation strategy.
Major Corrosion Types and Their Observation Characteristics
Uniform (General) Corrosion
Uniform corrosion attacks the entire exposed metal surface at approximately equal rates, producing progressive thinning without localized damage. It is the most predictable form of corrosion — corrosion rates measured in mils per year (mpy) or millimeters per year (mm/year) allow straightforward remaining-life calculation.
Observation characteristics: Uniform layer of corrosion product (rust on steel, verdigris on copper, white oxidation on aluminum) over the entire surface; no preferential attack at specific locations; surface may be rough or etched beneath the corrosion product layer.
Laboratory characterization: Cross-section metallography revealing uniform material loss; ICP-OES analysis of corrosion products; weight loss measurement after descaling per ASTM G1.
Pitting Corrosion
Pitting is localized corrosion producing small, deep cavities — pits — that penetrate the metal while leaving most of the surrounding surface unattacked. Pits are particularly dangerous because they concentrate stress, initiate fatigue and stress-corrosion cracking, and can perforate thin-walled components (pipes, tanks, vessels) while the overall material loss is minimal.
Observation characteristics: Discrete, small-diameter (0.1–5mm typically) hemispherical or irregular cavities, often with corrosion product caps. Cross-sections reveal undermining (wider at depth than at surface) in active pits.
Measurement: Pit depth measured by profilometry or stylus depth gauge; pit density (pits per cm²) counted on cleaned specimens; maximum pit depth reported as the design-critical parameter per ASTM G46.
Crevice Corrosion
Crevice corrosion initiates in narrow geometric constrictions — gasket interfaces, lap joints, under deposits, and at fastener-to-plate interfaces — where the limited electrolyte volume becomes oxygen-depleted, driving localized acidification and high chloride concentrations that attack passive metals (stainless steels, aluminum alloys, titanium).
Observation characteristics: Severe attack in the crevice gap, with relatively little corrosion on adjacent open surfaces. Crevice geometry is the distinguishing feature — attack stops where the crevice opens.
Laboratory simulation: ASTM G78 (crevice corrosion testing in seawater), ASTM G48 Method B (ferric chloride crevice test for stainless steels and nickel alloys).
Galvanic Corrosion
Galvanic corrosion occurs at the junction of dissimilar metals in electrical contact within a conductive electrolyte — the less noble (more anodic) metal corrodes preferentially. In contrast, the more noble (more cathodic) metal is protected.
Observation characteristics: Severe corrosion immediately adjacent to the metal junction on the less noble material; the attack intensity decreases with distance from the junction; the more noble metal is typically unattacked or shows reduced corrosion.
Analysis: Electrochemical potential measurement of isolated metal specimens in the service electrolyte; galvanic current measurement in coupled specimens per ASTM G71; galvanic series positioning.
Intergranular Corrosion (IGC)
IGC preferentially attacks the grain boundaries of a metal, producing a loss of cohesion between grains that severely reduces ductility and strength even without significant mass loss. Sensitized austenitic stainless steels (chromium carbide precipitation at grain boundaries, reducing local chromium content) and certain aluminum alloys are most susceptible.
Observation characteristics: Network of fine cracks following grain boundaries; grain dropping (individual grains fall out,t leaving a rough surface); the Huey test (ASTM A262 Practice C) or Strauss test (ASTM A262 Practice B) reveals IGC by weighing specimens before and after immersion in nitric or copper sulfate/sulfuric acid solutions.
Stress Corrosion Cracking (SCC)
SCC is a brittle fracture mechanism occurring in susceptible materials under tensile stress in specific corrosive environments. The combination of susceptible material, tensile strength, and a specific corrosive environment is required — removing any one of these elements prevents SCC.
Observation characteristics: Branching, transgranular or intergranular cracks often with multiple parallel crack paths; fracture surface shows brittle cleavage features without ductile deformation; macroscopic evidence of neither general corrosion nor mechanical deformation.
Laboratory testing: ASTM G36 (boiling MgCl₂ for austenitic SS), NACE TM0177 (H₂S environments), ASTM G64 (aluminum alloys), slow strain rate testing (ASTM G129).
Analytical Techniques for Corrosion Product Characterization
X-Ray Diffraction (XRD)
XRD identifies the crystalline phases present in corrosion products — distinguishing, for example, different iron oxide/hydroxide polymorphs (goethite, lepidocrocite, magnetite, hematite) in atmospheric rust, or identifying copper chloride phases in marine copper alloy corrosion. Phase identification guides understanding of the corrosion mechanism and the aggressiveness of the local environment.
Scanning Electron Microscopy / EDS
SEM imaging reveals corrosion morphology at sub-micron resolution, characterizing pit shape, crack-tip geometry, and corrosion product microstructure. EDS analysis identifies elemental composition of corrosion products, enabling inference of the corrosive species (chloride-driven pitting, sulfide-induced SCC, oxidation products).
Raman Spectroscopy
Raman spectroscopy non-destructively identifies corrosion product phases on metal surfaces without the sample preparation requirements of XRD — particularly valuable for characterizing corrosion films and passive layers on stainless steels, chromium coatings, and copper alloys.
Conclusion
Corrosion analysis — combining systematic visual observation with cross-sectional metallography, XRD, SEM/EDS, and electrochemical testing — transforms evidence of surface degradation into a mechanistic understanding. Accurately distinguishing uniform corrosion from pitting, crevice attack, galvanic coupling, IGC, and SCC determines the correct remediation strategy, material replacement selection, and design modification needed to prevent recurrence and extend asset service life.
Why Choose Infinita Lab for Corrosion Analysis and Observation?
Infinita Lab provides comprehensive corrosion analysis and observation services — including visual and optical microscopy, cross-section metallography, SEM/EDS corrosion product characterization, XRD phase identification, corrosion rate measurement (ASTM G1, G31), pitting assessment (ASTM G46), SCC evaluation (ASTM G36, NACE TM0177), and complete corrosion failure analysis reports — serving the metals & materials industry with the analytical evidence needed for root cause determination, material selection guidance, and corrective action support. Contact Infinita Lab at infinitalab.com to submit corroded specimens for expert corrosion analysis.
Frequently Asked Questions
How is corrosion rate measured from field observations? Corrosion rate is estimated from weight loss coupons per ASTM G1 and G31, ultrasonic thickness measurements comparing current to original wall thickness, pit depth measurements, and corrosion product analysis. Electrochemical LPR probes provide real-time corrosion rate monitoring in accessible liquid environments.
What does the color of corrosion products indicate? Orange rust indicates active Fe₂O₃ oxidation. Black magnetite indicates reducing or high-temperature conditions. Green deposits on copper indicate carbonate or chloride species. White deposits on aluminum indicate oxide or carbonate. Black deposits on silver indicate sulfide formation from atmospheric hydrogen sulfide exposure.
Can a corroded metal component be salvaged? Salvageability depends on material loss depth, design load requirements, and applicable codes. Surface corrosion removed to sound metal with remaining section verified by UT may be acceptable. Components with severe pitting, stress corrosion cracking, or intergranular corrosion typically require full replacement rather than repair.
How does surface finish affect corrosion susceptibility? Rougher surfaces have greater exposed area and more pit initiation sites, increasing corrosion rate. Electropolished stainless steel resists pitting more effectively than mechanically polished surfaces because the chromium oxide passive layer is more uniform and complete. Surface finish specification is a practical corrosion control measure.
What information is needed for a complete corrosion analysis report? Required information includes visual documentation, material specification, heat and lot identification, service environment composition, temperature, flow velocity, pressure, service duration, operational upsets, and all laboratory test results.
