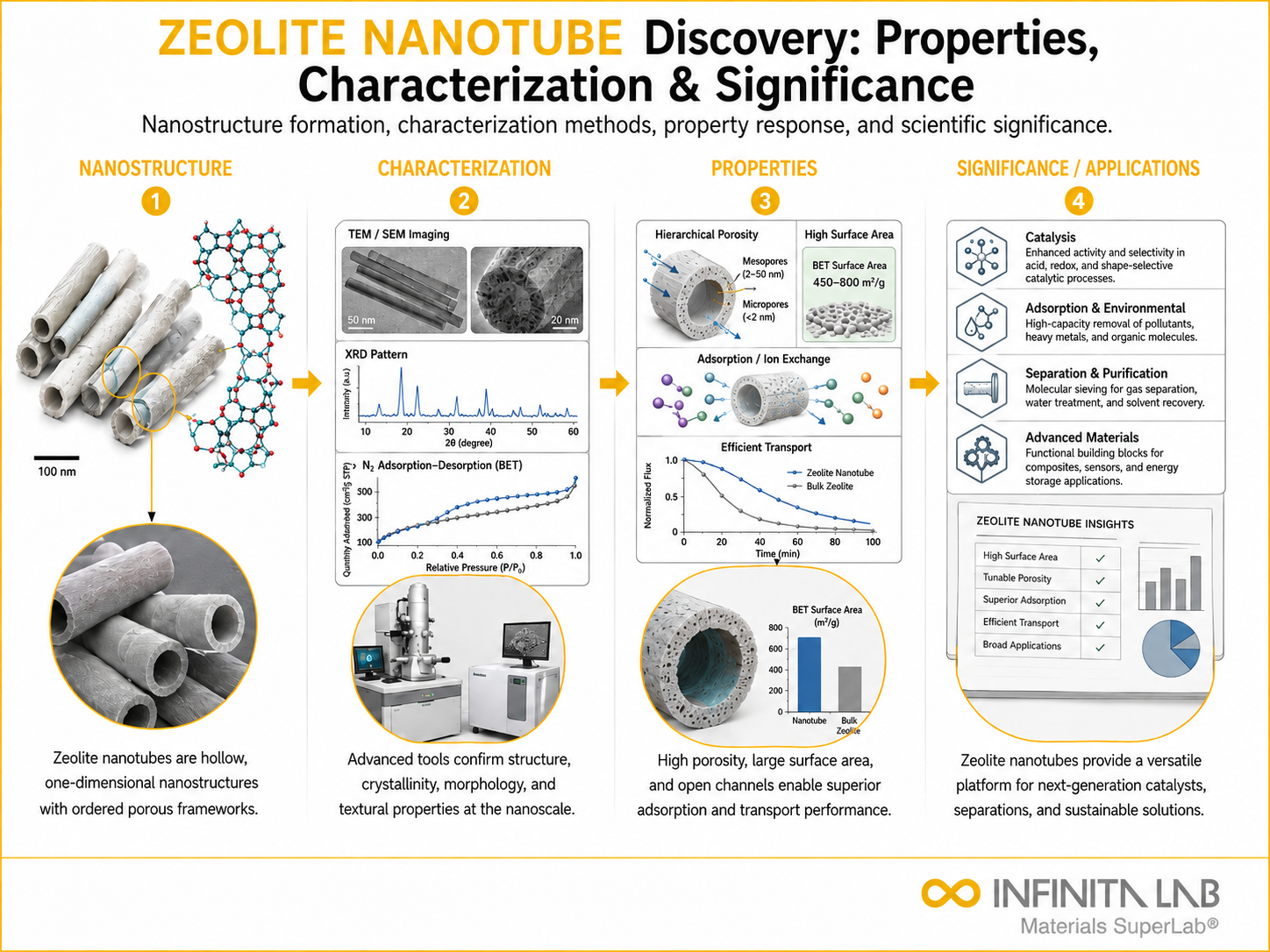

Zeolite Nanotube Discovery: Properties, Characterization & Significance

In January 2022, a discovery published in the journal Science captured the attention of the materials science community worldwide. Researchers at the Georgia Institute of Technology, Stockholm University, and Penn State University reported the first synthesis and structural characterization of a new class of material: single-walled zeolitic nanotubes — a one-dimensional (1D) form of zeolite that had never been synthesized or observed in nature before. This discovery opens entirely new possibilities for nanoscale engineering, separations technology, catalysis, sensing, and energy systems.

What Are Zeolites?

Zeolites are crystalline, microporous aluminosilicate minerals with a rigidly ordered pore structure. Their internal cavities and channels — typically 0.3–1.2 nm in diameter — enable them to function as highly selective molecular sieves, catalysts, and adsorbents. Zeolites selectively admit molecules that fit through their pores while excluding larger ones, a property that has made them indispensable in industrial catalysis (petroleum refining, chemical synthesis), water softening, gas separation, and environmental remediation.

Prior to the 2022 discovery, zeolites existed in two structural forms: three-dimensional (3D) frameworks and two-dimensional (2D) lamellar or nanosheet structures. The nanotubular 1D form was theoretically interesting but had never been achieved. Approximately 40 zeolite types occur naturally, with hundreds more synthesized industrially.

The Discovery: How Zeolite Nanotubes Were Made

The research team at Georgia Tech was attempting to synthesize 2D zeolite nanosheets when an unexpected assembly process produced a fundamentally different structure. Rather than flat nanosheets, the synthesis yielded a tube-like, one-dimensional structure with perforated porous walls — unlike anything in the known zeolite universe.

The Structure-Directing Agent (SDA)

The key to creating the zeolitic nanotube was a specially designed bolaform structure-directing agent (SDA) — an organic molecule that templates the growth of the zeolite framework. The SDA molecule (BCPh10Qui) consisted of:

• A central biphenyl group capable of π-stacking (aromatic ring stacking), which drives linear self-assembly of the SDA molecules into rod-like micelles
• Two long C₁₀ alkyl chains connecting the biphenyl core to bulky quinuclidinium end groups — the head groups that direct the formation of microporous zeolitic walls

The biphenyl cores π-stack along the length of the micelle, driving linear assembly. The quinuclidinium head groups direct the microporous framework growth around the periphery. Together, these structural features force the zeolite to grow as a cylindrical tube rather than a flat sheet or 3D framework.

The Unique Wall Structure

High-resolution electron microscopy and diffraction analysis revealed that the zeolite nanotube walls have a unique hybrid atomic arrangement — a topology combining structural features of two well-known zeolite types:

• The outer surface adopts a structure characteristic of beta zeolite — a large-pore zeolite
• The inner surface adopts a structure characteristic of MFI zeolite — a medium-pore zeolite

This outer-beta / inner-MFI hybrid structure had never been observed in any 3D or 2D zeolite. The asymmetric inner and outer surface chemistry arises from the curvature of the nanotube wall and the minimization of strain energy during tube formation — an elegant consequence of the geometry.

Physical Dimensions and Properties

The zeolite nanotubes have:

• Central mesoporous channel diameter of approximately 2.5–3 nm — accessible to larger molecules
• Microporous zeolitic walls with pore sizes of approximately 0.5–0.6 nm — allowing transport of small molecules through the walls
• BET surface area of approximately 980 m²/g — dramatically higher than conventional MFI zeolite (approximately 410 m²/g) and zeolite nanosheets (approximately 520 m²/g), due to the high mesoporosity of the central channel

What Makes Zeolite Nanotubes Scientifically Significant?

Conventional nanotubes — including carbon nanotubes and boron nitride nanotubes — have solid walls. The zeolitic nanotube is the first example of a nanotube with microporous, crystalline walls that allow molecular transport both axially through the central channel and radially through the perforated walls.

This dual-pathway transport architecture is unprecedented and creates opportunities that solid-walled nanotubes cannot offer: molecules can enter, travel through, and exit the nanotube not only from the open ends but also through any point along the tube’s length via the microporous walls.

Potential Applications

The discoverers identified a wide range of potential applications for zeolitic nanotubes:

Membrane Separations

The zeolite nanotube’s hierarchical porosity — mesoporous core channel combined with microporous walls — enables selective molecular transport at two different length scales simultaneously. This makes zeolite nanotubes attractive candidates for next-generation gas and liquid separation membranes with superior permeability and selectivity. Demonstrated CO₂ capture capacity using PEI-impregnated zeolite nanotubes showed approximately 25% greater CO₂ uptake and approximately 4× faster uptake kinetics compared to conventional mesoporous silica supports.

Catalysis

The high surface area, controlled pore geometry, and tunable acid-base chemistry of zeolitic walls make these materials attractive platforms for heterogeneous catalysis. The accessible internal and external surfaces both participate in catalytic activity.

Sensing

Zeolite nanotubes can be functionalized with responsive chemical groups on their inner or outer surfaces independently, enabling the design of sensors that selectively detect specific molecular species by their size, shape, or chemical affinity.

Energy Devices

Applications in fuel cell electrolytes, battery electrode materials, and thermal energy storage devices have been proposed, leveraging the unique transport properties of the nanotube architecture.

Composite Materials

Like carbon nanotubes, zeolite nanotubes may reinforce polymer and ceramic composites, providing both mechanical reinforcement and the additional functional attributes (porosity, ion exchange, molecular sieving) that carbon nanotubes cannot provide.

Characterization Tools for Zeolite Nanotubes

Verifying the structure, morphology, and properties of zeolite nanotubes requires a sophisticated suite of analytical techniques:

• High-resolution Transmission Electron Microscopy (HR-TEM) — direct imaging of nanotube morphology and wall structure at atomic resolution
• X-ray Diffraction (XRD) — confirming crystalline phase and unit cell parameters
• BET surface area and porosity analysis (N₂/Ar physisorption) — quantifying surface area, pore volume, and pore size distribution
• Solid-state NMR — probing framework connectivity and SDA-zeolite interactions
• Raman spectroscopy — characterizing framework vibrations and structural connectivity
