ASTM D1601: Dilute Solution Viscosity of Polyethylene — Method Guide

What Is ASTM D1601?

ASTM D1601 — Standard Test Method for Dilute Solution Viscosity of Ethylene Polymers — measures the viscosity of dilute solutions of polyethylene and ethylene copolymers in defined solvents at elevated temperatures. The primary output is the intrinsic viscosity (also called limiting viscosity number, [η]) from which the viscosity-average molecular weight can be estimated using the Mark-Houwink equation.

This method provides a cost-effective, widely accessible measure of molecular weight-related polymer characteristics for quality control, product development, and incoming material verification in polyethylene manufacturing and processing.

Significance of Intrinsic Viscosity for Polyethylene

Molecular weight is the single most important structural parameter governing the mechanical properties, processability, and end-use performance of polyethylene. Higher molecular weight correlates with:

• Higher melt viscosity (affecting extrusion and moulding processability)
• Higher tensile strength and elongation at break
• Better environmental stress cracking resistance (ESCR)
• Improved long-term pressure resistance in pipe applications

Intrinsic viscosity provides a rapid, reproducible measurement of the weight-average molecular weight (Mw) or viscosity-average molecular weight (Mv), allowing polyethylene grades to be characterised and differentiated without the more complex and expensive techniques of gel permeation chromatography (GPC).

Test Procedure

Solvent and Temperature Selection

ASTM D1601 specifies tetralin (1,2,3,4-tetrahydronaphthalene) or decalin (decahydronaphthalene) as the primary solvents for polyethylene, at a temperature of 130°C. These elevated-temperature, non-polar solvents dissolve polyethylene, which is crystalline at room temperature and insoluble in most solvents below its melting point.

Viscosity Measurement

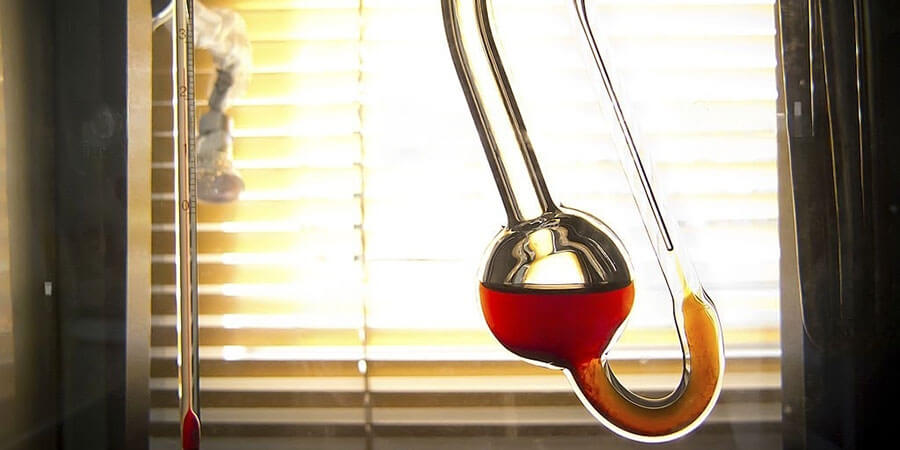

A precisely weighed amount of polyethylene is dissolved in the heated solvent to produce solutions at multiple concentrations (typically 0.05–0.5 g/dL). Solution viscosities are measured using a Cannon-Fenske or Ubbelohde capillary viscometer thermostatted at 130°C. The flow time through the viscometer capillary is recorded for each concentration and for the pure solvent.

Intrinsic Viscosity Calculation

Relative viscosity (ηr), specific viscosity (ηsp), and reduced viscosity (ηsp/c) are calculated at each concentration. Intrinsic viscosity [η] is determined by extrapolation of reduced viscosity to zero concentration using the Huggins or Kraemer equations.

Molecular Weight Estimation

Viscosity-average molecular weight Mv is calculated from [η] using the Mark-Houwink equation: [η] = K × Mvᵃ, where K and a are polymer/solvent/temperature specific constants tabulated in literature.

Industrial Applications

In polyethylene pipe manufacturing, intrinsic viscosity is used to verify that HDPE resin meets the molecular weight requirements of ASTM D3035 (HDPE pipe), AWWA C901, and ISO 4427 specifications. In ultra-high molecular weight polyethylene (UHMWPE) production — used in bearings, wear liners, and medical implants — intrinsic viscosity is used to classify the molecular weight grade per ASTM F648. In polyethylene film and packaging applications, intrinsic viscosity data support grade selection for targeted strength, dart impact, and tear resistance performance.

Conclusion

ASTM D1601 is a widely used standard for determining the dilute solution viscosity and intrinsic viscosity of ethylene polymers, particularly polyethylene and its copolymers. Since intrinsic viscosity is directly related to molecular weight, this test provides a reliable and cost-effective method for assessing polymer quality, consistency, and performance characteristics.

The test is especially valuable in polyethylene manufacturing, pipe production, film applications, and UHMWPE material classification, where molecular weight strongly influences strength, processability, ESCR, and long-term durability.
