ASTM D7078: Shear Properties of Composites by V-Notched Rail Shear Method

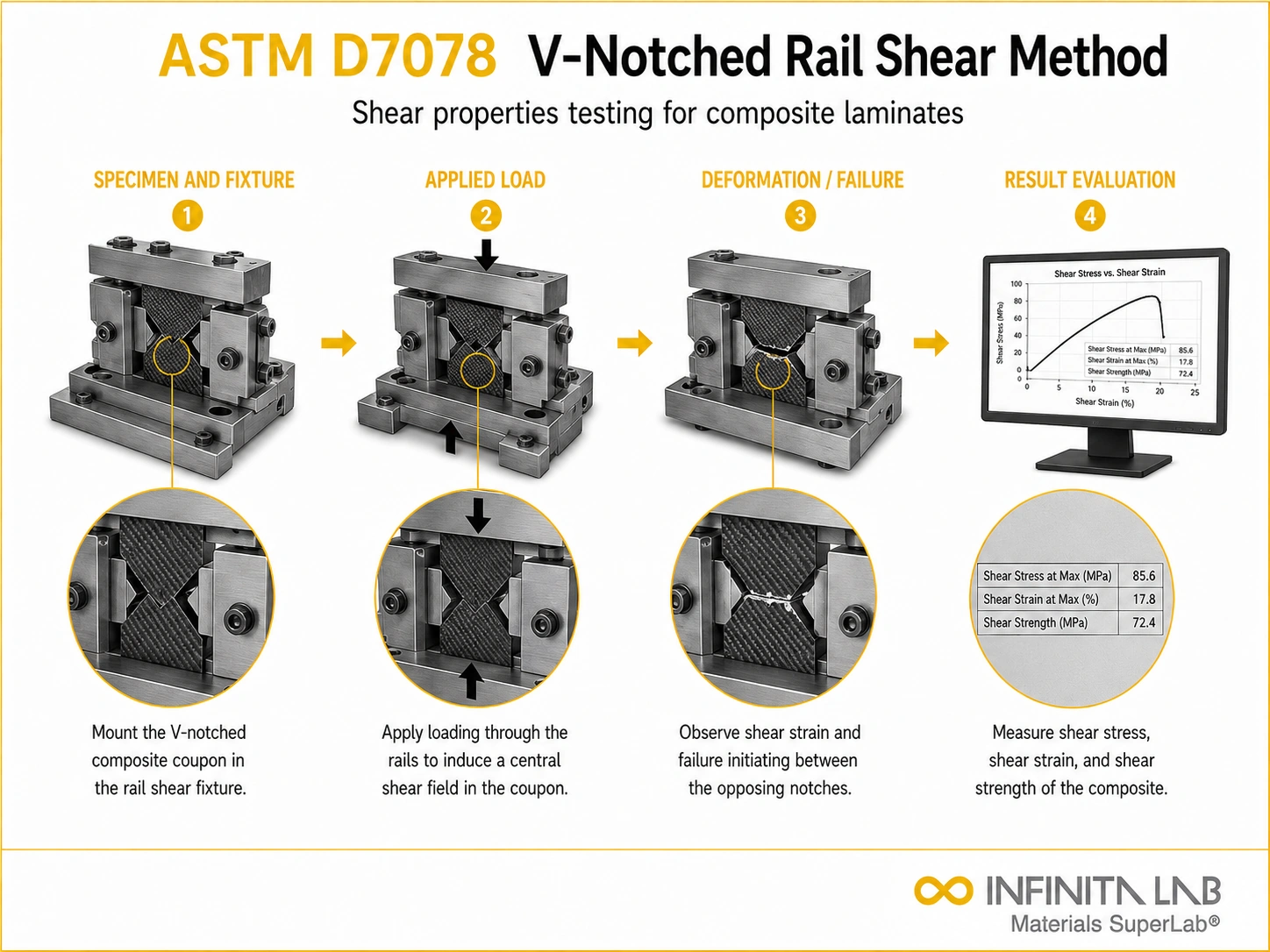

ASTM D7078 V-notched rail shear test on composite laminate measuring shear strength and modulusUnderstanding ASTM D7078
ASTM D7078 is the standard test method published by ASTM International for determining the shear properties of composite materials using the V-Notched Rail Shear fixture. The standard provides precise guidelines on specimen preparation, fixture design, testing procedure, and data analysis to ensure consistency and reproducibility across laboratories worldwide.
This standard is widely used by composite material manufacturers, research institutions, and quality control laboratories in the aerospace, automotive, wind energy, marine, and defence industries.
Scope and Applicability of ASTM D7078
ASTM D7078 applies to polymer matrix composite materials reinforced with high-modulus fibres. It measures in-plane shear properties, including shear strength and shear modulus. The standard applies to:
- Unidirectional continuous fibre composites
- Woven and braided fabric composites
- Cross-ply and quasi-isotropic laminates
- Multidirectional fibre-reinforced composites
The test method is designed for flat, rectangular specimens and is compatible with specimens cut from both laboratory panels and production components, giving it broad industrial relevance.
Key Requirements of ASTM D7078
Specimen Geometry
The standard specifies a specimen measuring 56 mm × 76 mm with two symmetric V-notches of 90° included angle machined to a depth of 3.8 mm. Dimensional tolerances are strict to ensure stress concentrations occur only at the intended shear plane.
Fixture Design
The V-Notched Rail Shear fixture consists of two pairs of clamping rails that hold the specimen and transmit load uniformly into the gauge section. The fixture design minimises parasitic bending moments that could invalidate shear measurements.
Strain Measurement
Strain gauges, or extensometers, are applied at ±45° to measure shear strain. The standard requires at least one back-to-back pair of gauges to detect and account for any bending during loading.
Loading Rate
The standard prescribes a crosshead displacement rate of 2 mm/min, which is sufficiently slow to allow quasi-static data acquisition while avoiding strain-rate effects on the measured properties.
How ASTM D7078 Differs from Earlier Standards
Before ASTM D7078, the Iosipescu V-Notched Beam Shear method (ASTM D5379) was the primary standard for composite shear testing. ASTM D7078 was developed to overcome limitations, including small specimen size, fixture complexity, and restrictions on testable laminate thickness. The D7078 fixture accommodates thicker and stiffer specimens, making it more representative of real structural composites used in industry.
Industrial Relevance of ASTM D7078 Compliance
Aerospace Certification
Aerospace component manufacturers are required to submit material qualification data — including shear properties — as part of FAA and EASA structural certification packages. ASTM D7078 data is accepted by major OEMs, including Boeing and Airbus, for composite material characterisation.
Automotive Lightweighting
As the automotive industry transitions to lightweight composite-intensive platforms, ASTM D7078 provides standardised shear data that feeds into crash models, structural simulations, and lightweight design databases.
Renewable Energy
Wind turbine blade manufacturers routinely use ASTM D7078 data during material qualification and blade certification under IEC 61400-23, the international standard for full-scale structural testing of wind turbine blades.
Conclusion
ASTM D7078 has become a cornerstone standard for accurately determining the in-plane shear properties of composite materials using the V-Notched Rail Shear method. By providing clear guidance on specimen preparation, fixture design, strain measurement, and testing conditions, it ensures high repeatability and comparability of results across laboratories. Its ability to accommodate thicker, real-world composite laminates makes it especially valuable for modern structural applications. As industries increasingly rely on advanced composites for lightweight, high-strength designs, ASTM D7078 plays a critical role in material qualification, design validation, and regulatory compliance—supporting safer and more reliable engineered systems.
Why Choose Infinita Lab for ASTM D7078 Testing?
At Infinita Lab, we offer comprehensive ASTM D7078 testing services through our nationwide network of 2,000+ accredited laboratories. Our specialists ensure precise specimen preparation, fixture calibration, and accurate data reporting to meet your material qualification and quality assurance requirements.
With end-to-end project management and a Single Point of Contact (SPOC) model, we eliminate the administrative burden associated with multi-vendor testing coordination.
Looking for a trusted partner to achieve your research goals? Schedule a meeting with us, send us a request, or call us at (888) 878-3090 to learn more about our services and how we can support you.
Frequently Asked Questions (FAQs)
What is ASTM D7078? ASTM D7078 is a standard test method for measuring the in-plane shear properties of composite materials using the V-Notched Rail Shear fixture.
What properties are measured using ASTM D7078? It measures shear strength, shear modulus, and the shear stress-strain response of composite laminates.
What types of materials can be tested? Polymer matrix composites reinforced with fibres, including unidirectional, woven, braided, and multidirectional laminates.
Why are strain gauges placed at ±45°? Because shear strain is maximized along these directions, allowing accurate measurement of in-plane shear deformation.
Why is fixture design important in this test? Proper fixture design ensures uniform load distribution and minimizes bending, which could otherwise distort results.
