Top 20 Adhesive Testing Methods for Structural & Industrial Bonds

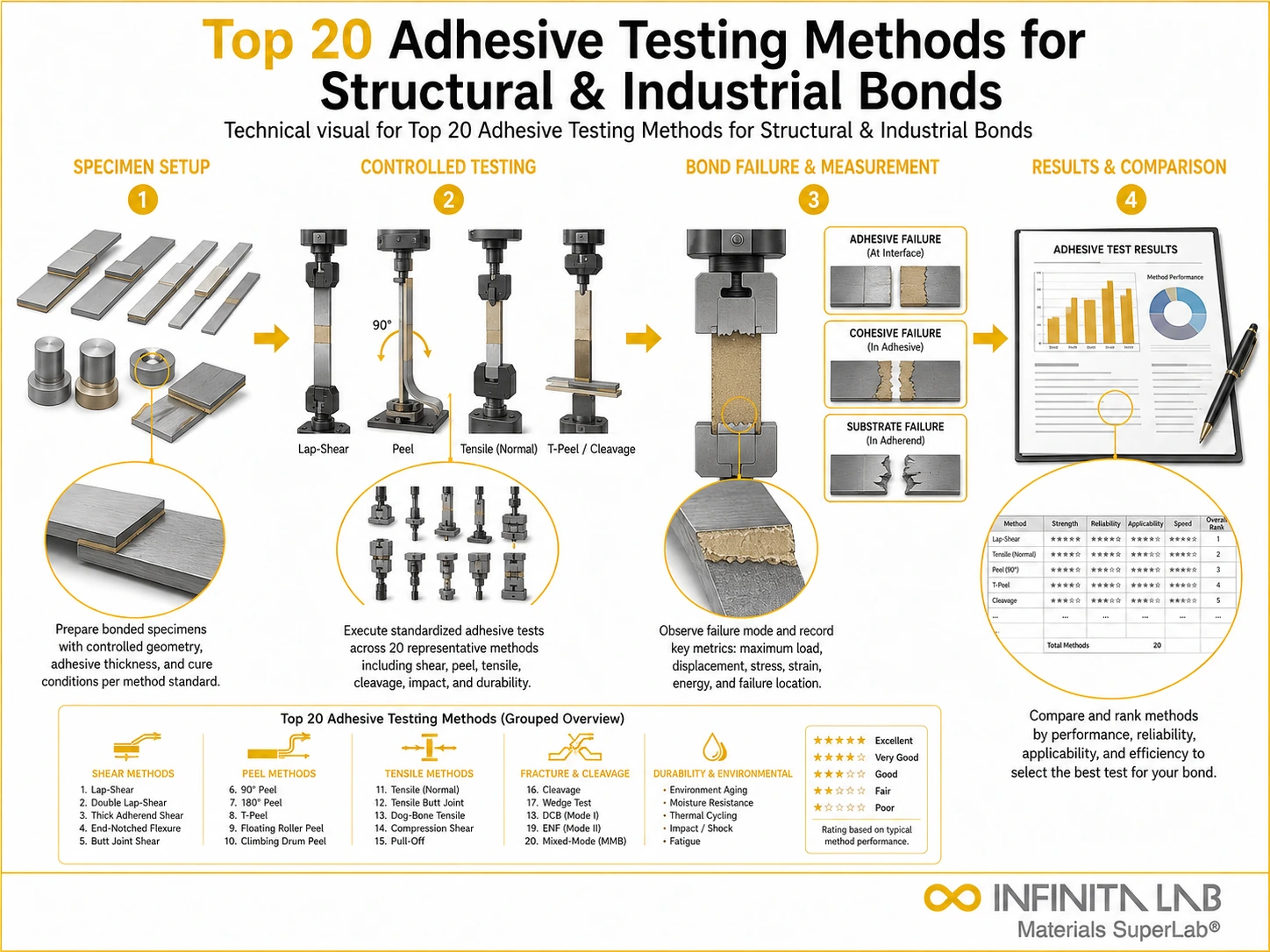

Representative Infinita Engineering Visual explaining the four-step workflow for Top 20 Adhesive Testing Methods for Structural & Industrial Bonds.What Is Adhesive Testing?
Adhesive testing evaluates the bonding strength, durability, and application performance of glues, sealants, tapes, and structural adhesives across the substrates and conditions they’re intended to bond. Because adhesive performance depends heavily on substrate compatibility, surface preparation, cure conditions, and environmental exposure, testing typically evaluates the bonded joint as a system rather than the adhesive in isolation.
Why Adhesive Testing Matters
- Confirms bond strength meets structural or functional requirements
- Verifies long-term durability under temperature, humidity, and chemical exposure
- Detects incompatibility between adhesive and specific substrates
- Supports qualification for structural, automotive, and aerospace bonding applications
Top 20 Adhesive Testing Methods
- Lap Shear Strength Testing (ASTM D1002) – Measures shear strength of a bonded joint under tensile load, the most common structural adhesive test.
- Tensile (Butt Joint) Strength Testing (ASTM D2095) – Measures pure tensile strength perpendicular to the bond line.
- Peel Strength Testing (ASTM D903, D1876) – Evaluates resistance to peeling forces, critical for flexible substrate bonding and tapes.
- Cleavage Strength Testing (ASTM D1062) – Measures resistance to a wedge-opening force applied at the bond edge.
- Impact / Wedge Impact Testing – Evaluates bond resistance to sudden impact loading, relevant for automotive structural adhesives.
- Fatigue Testing – Evaluates bond durability under repeated cyclic loading over the joint’s expected service life.
- Creep Testing – Measures bond line deformation under sustained load over extended time, important for structural applications.
- Environmental Ageing / Humidity Resistance Testing – Evaluates bond strength retention after exposure to heat and humidity.
- Thermal Cycling Testing – Assesses bond durability under repeated temperature swings, particularly for dissimilar-substrate joints.
- Chemical and Solvent Resistance Testing – Evaluates bond degradation upon exposure to fuels, oils, and cleaning solvents.
- UV / Weathering Resistance Testing – Assesses outdoor bond durability from prolonged sunlight exposure.
- Salt Spray / Corrosion Testing – Evaluates bond performance in corrosive marine or automotive underbody environments.
- Cure Kinetics Testing (DSC) – Characterises cure rate and completeness, important for process control.
- Rheology / Viscosity Testing – Evaluates flow behaviour for application process compatibility (dispensing, spraying).
- Open Time / Working Time Testing – Measures how long an adhesive remains workable after application before curing limits bonding.
- Glass Transition Temperature (Tg) Testing (DMA/DSC) – Determines the temperature at which the cured adhesive transitions from rigid to more flexible behaviour.
- Coefficient of Thermal Expansion (CTE) Testing – Measures dimensional change with temperature, important for bonding dissimilar materials.
- Surface Preparation / Adhesion Promoter Evaluation – Tests how substrate cleaning or priming affects bond strength.
- Volatile Organic Compound (VOC) Content Testing – Verifies compliance with environmental and workplace exposure regulations.
- Fire Resistance / Flammability Testing – Evaluates adhesive contribution to flame spread in structural or transportation applications.
Adhesive Test Method Comparison
Property Evaluated | Representative Method | Typical Standard |
|---|
Shear strength | Lap shear testing | ASTM D1002 |
Peel/flexible bonding | Peel strength testing | ASTM D903, D1876 |
Environmental durability | Humidity, thermal cycling, UV | ASTM D1183, D904 |
Cure behavior | DSC cure kinetics | – |
Chemical resistance | Solvent/fuel exposure testing | ASTM D896 |
Applications by Industry
Automotive – Structural adhesives tested for lap shear, impact, and thermal cycling given crash-safety and lightweighting requirements. Aerospace – Structural bonding tested for fatigue, creep, and environmental durability across decades of service. Construction – Sealants and structural glazing adhesives tested for UV, weathering, and long-term movement accommodation. Electronics – Adhesives tested for thermal cycling and CTE compatibility when bonding dissimilar materials in assemblies. Packaging – Tapes and laminating adhesives tested for peel strength and environmental ageing.
Industry Standards Referencing Adhesive Testing
ASTM D1002, D2095, D903, D1876, D1062, D1183, D904, D896, ISO 4587 (lap shear), ISO 9142 (environmental exposure guide)
Advantages and Limitations
Advantages: Confirms bond performance under real application-relevant loading and environmental conditions; identifies substrate incompatibility before large-scale production; supports structural qualification for safety-critical bonded joints. Limitations: Bond strength results are highly sensitive to substrate surface preparation, making lab results dependent on matching real production surface conditions; accelerated ageing tests approximate but don’t perfectly predict multi-year real-world durability; test joint geometry doesn’t always represent the stress distribution of complex real-world bonded structures.
Conclusion
Because an adhesive bond’s performance depends as much on the substrate and surface preparation as on the adhesive itself, testing programs evaluate the bonded joint as a complete system – strength, environmental durability, and cure behaviour together – rather than characterising the adhesive chemistry in isolation.
Why is adhesive testing important? Testing confirms bond quality, supports material selection, identifies failure risks, and verifies performance under expected service conditions.
What is lap shear testing? Lap shear testing measures the force required to separate two bonded materials by applying a load parallel to the adhesive joint.
What is peel strength testing? Peel testing measures the force needed to separate a flexible bonded material from another surface at a specified angle.
How is adhesive viscosity measured? Viscosity is commonly measured using rotational viscometers, flow cups, capillary methods, or falling-ball techniques.
How is adhesive curing evaluated? Cure time, gel time, differential scanning calorimetry, hardness, and degree-of-cure testing are commonly used.
