ASTM D3518: Composite In Plane Shear Response Testing Services
ASTM D3518 is used to determine the in-plane shear response of polymer-matrix composite materials tensile test of a ±45° laminate. Composite materials are tested for their shear stress and shear strain properties at temperatures that simulate the planned end-use environment.
TRUSTED BY
Get ASTM D3518 compliant results — request your composite in plane shear response testing quote
- Overview
- Scope, Applications, and Benefits
- Test Process
- Specifications
- Instrumentation
- Results and Deliverables
What Is ASTM D3518 Composite In Plane Shear Response?
ASTM D3518 is the standard test method for determining the in-plane shear properties of polymer-matrix composite materials reinforced with high-modulus fibers. Both unidirectional and multidirectional laminates fabricated from thermosetting or thermoplastic resins are being evaluated using this method.
This test method determines the shear stress-strain behavior of ± 45° laminate specimens under tensile loading. Measured properties include shear modulus, ultimate shear strength, and shear strain at failure. ASTM D3518 supplies important data for structural analysis, material characterization, and performance validation of fiber-reinforced composites used in aerospace, automotive, marine, and industrial applications.
Applications and Benefits of ASTM D3518 Composite In Plane Shear Response Testing
Scope
ASTM D3518 evaluates the in-plane shear properties of polymer matrix composites using tensile loading on ±45° laminates.
It evaluates:
- Shear modulus (G₁₂)
- Ultimate shear strength (τᵤ)
- Shear strain at failure (γᵤ)
- Stress–strain behaviour under shear loading
- Influence of fiber orientation and laminate structure
The method applies to laminated and woven composite materials.
Applications
- Aerospace structural components
- Automotive composite parts
- Wind turbine blades
- Marine structures
- Industrial composite panels
- Material qualification testing
- Research and development of composites
Benefits
- Provides standardized shear property data
- Supports structural design and analysis
- Enables comparison of composite systems
- Assists in material selection
- Improves manufacturing quality control
- Validates laminate design models

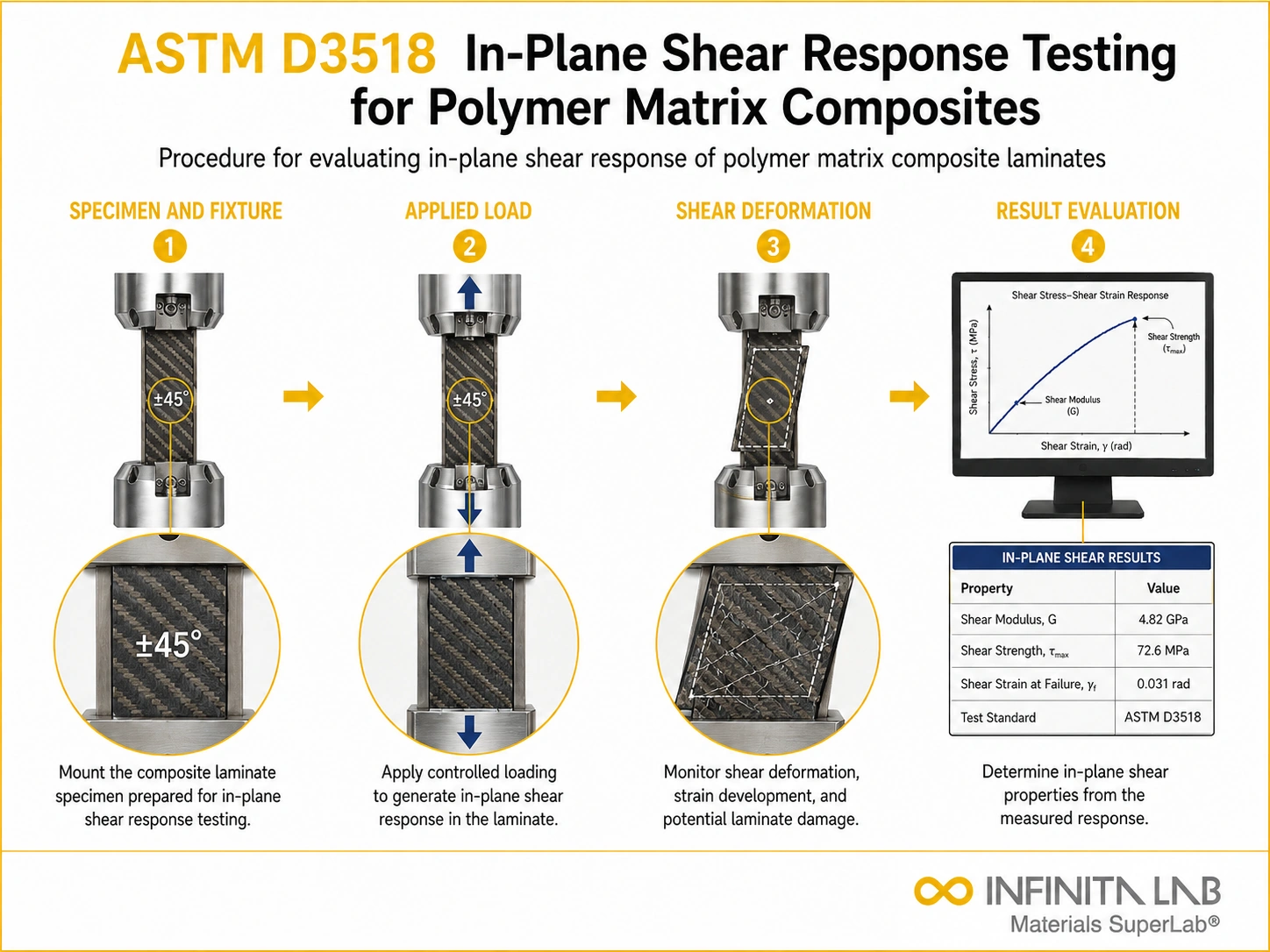

Our ASTM D3518 Testing Procedure
Specimen Preparation & Conditioning
Composite laminates are fabricated, cut to standard dimensions, and conditioned at 23°C and 50% RH.
1Mounting & Alignment
Specimens are properly aligned in the tensile testing machine to induce in-plane shear.
2Tensile Loading
Load is applied continuously at a controlled rate until failure.
3Data Recording & Property Calculation
Load and strain are recorded, and shear properties are calculated from stress–strain curves.
4ASTM D3518 Test Parameters and Requirements
| Parameter | Details |
|---|---|
| Applicable Materials | Polymer matrix composites |
| Fiber Orientation | ±45° laminate |
| Specimen Length | ~250 mm |
| Specimen Width | ~25 mm |
| Specimen Thickness | 2–3 mm (material dependent) |
| Conditioning | 23°C, 50% RH |
- Universal tensile testing machine
- Precision alignment grips
- Extensometers or strain gauges
- Load cells
- Environmental chamber (if required)
- Data acquisition software
Equipment and Instrumentation Used for ASTM D3518 Testing
What You Receive: Test Report, Data, and Certification
- Shear modulus (G₁₂) values
- Ultimate shear strength (τᵤ)
- Shear strain at failure (γᵤ)
- Stress–strain curves
- Comparative material performance reports
- Documentation for material qualification
ASTM D3518 Composite In Plane Shear Response FAQs
ASTM D3518 is used to determine the in-plane shear properties—such as shear modulus, shear strength, and shear strain—of fiber-reinforced polymer matrix composites under tensile loading. It helps evaluate how composites behave when subjected to shear forces during service.
This test applies to unidirectional or multidirectional laminated composites reinforced with high-modulus fibers like carbon, glass, or aramid and bonded with thermosetting or thermoplastic resin systems.
The ±45° fiber orientation allows tensile loading to produce in-plane shear deformation within the laminate, enabling the determination of shear stress–strain behavior without direct shear loading.
A universal testing machine (UTM) with proper alignment fixtures and strain-measurement devices such as extensometers or strain gauges is required to record accurate stress–strain data.
