ASTM D3931: Gap Filling Adhesive Shear Compression Testing Services
The ASTM D3931 standard method covers the procedure to test the shear strength of gap-filling adhesives in wood-to-wood joints under a compressive load, for structural design, research, and quality control. In ASTM D3931, the adhesive shear strength is expressed in pounds per square inch.
TRUSTED BY
Get ASTM D3931 compliant results — request your gap filling adhesive shear compression testing quote
- Overview
- Scope, Applications, and Benefits
- Test Process
- Specifications
- Instrumentation
- Results and Deliverables
What Is ASTM D3931 Gap Filling Adhesive Shear Compression?
ASTM D3931 defines a standardized method for determining the shear strength of gap-filling adhesive bonds under compression. Gap-filling adhesives are formulated to maintain adequate strength when applied at bondline thicknesses greater than those typically used in precision fit-up applications. These adhesives are critical in assembly operations where substrate surfaces are not perfectly mated, and a thick bondline is unavoidable.
The test uses a cylindrical plug-in-socket specimen geometry, in which a cylindrical rod is bonded inside a close-fitting sleeve with the gap-filling adhesive. The bonded assembly is loaded in compression, inducing shear stress at the adhesive interface. The compressive shear strength is calculated from the failure load and bonded area. This geometry effectively simulates many practical assembly joints where a gap-filling adhesive is used to bond pins, bushings, or cylindrical inserts.
Applications and Benefits of ASTM D3931 Gap Filling Adhesive Shear Compression Testing
Scope
ASTM D3931 evaluates:
- Compressive shear strength of gap-filling adhesive bonds
- Effect of bondline thickness on shear strength
- Performance of adhesives at controlled gap thicknesses
- Substrate material effects on gap-filling bond strength
- Environmental conditioning effects on gap-filling performance
- Comparative ranking of gap-filling adhesive systems
Applications
- Cylindrical assembly bonding (pins, bushings, shafts)
- Machinery component assembly
- Automotive powertrain component bonding
- Retaining compound applications
- Industrial maintenance and repair bonding
- Structural gap-filling in manufacturing assembly
- Research and development in gap-filling adhesive technology
Benefits
- Provides data specifically relevant to gap-filling applications
- Enables selection of adhesives for variable-fit assemblies
- Detects bondline thickness sensitivity in adhesive performance
- Supports process development for gap-fill bonding
- Reduces assembly failures from inadequate gap-filling strength
- Provides data for adhesive specification in cylindrical joint designs

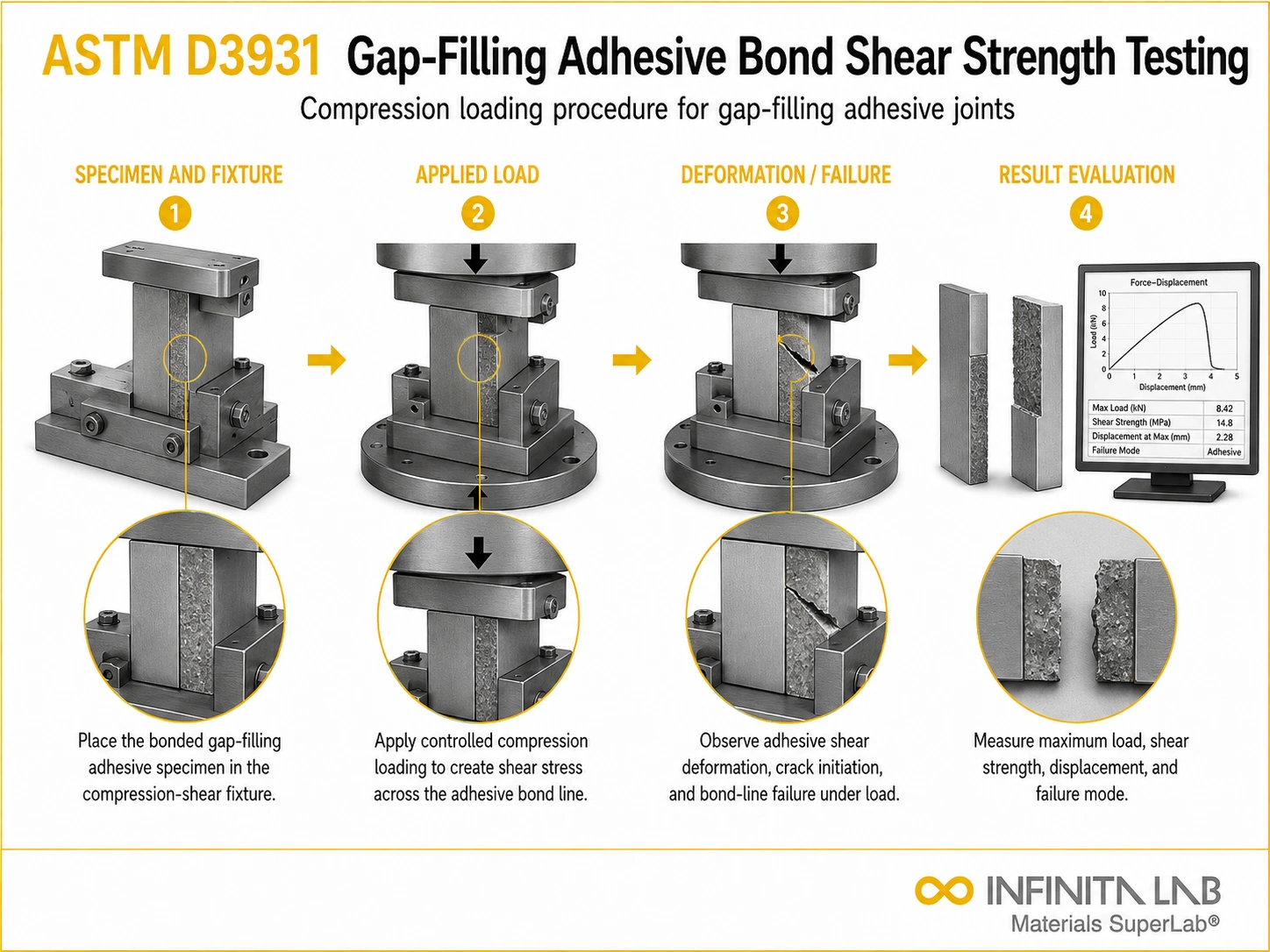

Our ASTM D3931 Testing Procedure
Specimen Fabrication
Cylindrical rod and sleeve are machined to the specified dimensions; adhesive is applied to fill the annular gap.
1Curing
Bonded specimens are cured per the adhesive supplier's specifications.
2Compression Loading
Specimen is loaded axially in compression on a universal testing machine until bond failure.
3Shear Strength Calculation
Compressive shear strength is calculated from peak load divided by bonded surface area.
4ASTM D3931 Test Parameters and Requirements
| Parameter | Details |
|---|---|
| Test Principle | Compressive shear loading of cylindrical plug-in-socket joint |
| Specimen Type | Cylindrical rod-in-sleeve |
| Applicable Materials | Gap-filling structural adhesives |
| Output Units | MPa (psi) |
| Measured Outputs | Compressive shear strength, failure mode |
- Universal testing machine (UTM) with compression platens
- Machined cylindrical rod and sleeve fixtures
- Micrometer and calipers for gap measurement
- Load cell calibrated to test range
- Data acquisition software
- Failure surface examination tools
Equipment and Instrumentation Used for ASTM D3931 Testing
What You Receive: Test Report, Data, and Certification
- Compressive shear strength values (MPa or psi)
- Bondline thickness measurements
- Failure mode classification
- Load-displacement curves
- Compliance documentation
- Quality assurance reports
ASTM D3931 Gap Filling Adhesive Shear Compression FAQs
ASTM D3931 measures shear strength of gap-filling adhesive bonds using compression loading. It evaluates performance of adhesives in joints with gaps, helping assess structural integrity and load-bearing capability in bonded assemblies.
Key parameters include specimen geometry, adhesive thickness, curing conditions, loading rate, and alignment. Controlled conditions ensure accurate measurement of shear strength in gap-filling adhesive joints.
The test measures shear strength of adhesive bonds under compression loading. Results indicate ability of adhesives to maintain structural integrity in joints with varying gap thicknesses.
ASTM D3931 applies to adhesive materials used in structural bonding applications such as construction, automotive, aerospace, and industrial assemblies requiring gap-filling capabilities.
ASTM D3931 results depend on specimen preparation and curing conditions. It may not fully represent real-world loading scenarios, requiring additional testing for fatigue, environmental exposure, or long-term performance evaluation.
