    What Is ASTM D5379 V Notched Shear Composite?

    V-Notched Shear testing by ASTM D5379 is a standardized method used to determine the in-plane shear properties of composite materials. It evaluates how a material responds to shear loading using a specially designed V-notched specimen, where load is applied to induce a uniform shear stress state in the reduced cross-section. The test is widely used to characterize shear strength, shear modulus, and failure behavior of fiber-reinforced composites.

    The method is essential for understanding anisotropic behavior in advanced composite systems. It provides reliable data for design, simulation, and validation of structural components used in aerospace, automotive, and high-performance engineering applications where shear loading is critical.

    Applications and Benefits of ASTM D5379 V Notched Shear Composite Testing

    Scope

    ASTM D5379 is used to evaluate in-plane shear response of composite materials using a V-notched specimen configuration.

    • Determines in-plane shear strength and modulus
    • Applicable to fiber-reinforced polymer composites
    • Evaluates shear deformation under controlled loading
    • Supports anisotropic material characterization
    • Used for design validation and material qualification
    • Assesses failure behavior under shear stress

    Applications

    • Aerospace composite structural components
    • Automotive lightweight composite parts
    • Wind energy blade material testing
    • Marine composite structures
    • High-performance sporting goods
    • Advanced polymer composite research

    Benefits

    • Provides accurate shear property evaluation
    • Supports reliable composite material design
    • Helps predict structural failure under shear loads
    • Improves finite element modeling accuracy
    • Enables material comparison and selection
    • Enhances safety in structural applications

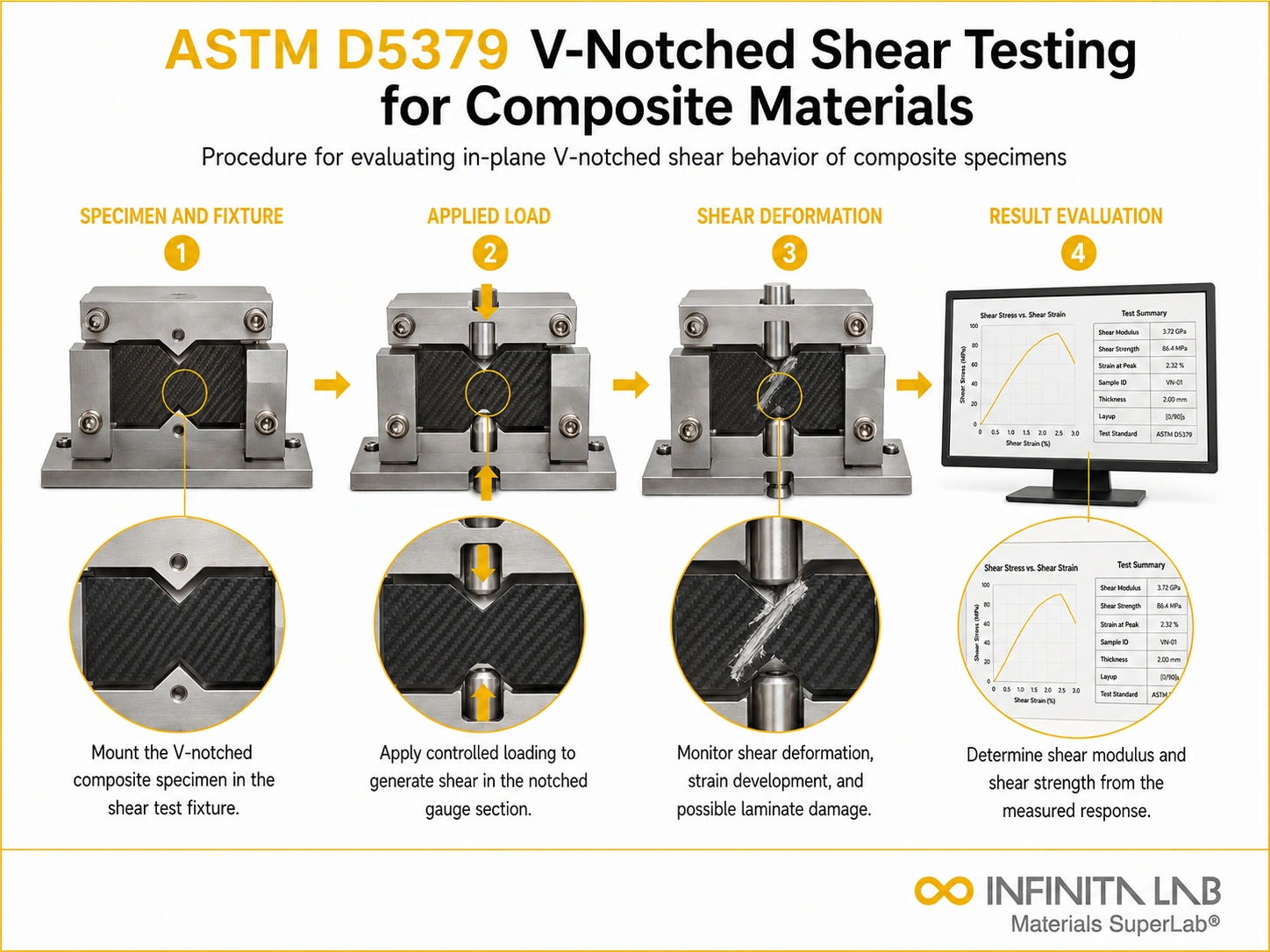

    Our ASTM D5379 Testing Procedure

    Specimen Preparation

    Composite specimens are machined into standardized V-notched geometry to ensure controlled shear stress concentration.

    1

    Fixture Installation

    The specimen is mounted in a specialized shear fixture to ensure proper alignment and load transfer.

    2

    Shear Loading Application

    A controlled load is applied to induce shear deformation in the notched region until failure occurs.

    3

    Data Evaluation

    Stress–strain response is recorded to determine shear strength, modulus, and failure characteristics.

    4

    ASTM D5379 Test Parameters and Requirements

    ParameterDetails
    StandardASTM D5379
    Measurement PrincipleIn-plane shear via V-notched specimen loading
    Sample TypeFiber-reinforced polymer composites
    Loading ModeQuasi-static shear loading
    Strain MeasurementStrain gauges or digital extensometers
    Failure ModeShear rupture or fiber-matrix debonding
    Test SpeedControlled displacement rate
    Output DataShear stress–strain curve
    • Universal Testing Machine (UTM)
    • V-notched shear fixture
    • Strain measurement system (strain gauges/extensometer)
    • Data acquisition system
    • Specimen alignment tools
    • Calibration standards

    Equipment and Instrumentation Used for ASTM D5379 Testing

    What You Receive: Test Report, Data, and Certification

    • Shear stress–strain curve
    • In-plane shear strength value
    • Shear modulus data
    • Failure mode analysis report
    • Material performance certification
    • Test validation documentation

    ASTM D5379 V Notched Shear Composite FAQs

    It is used to determine the in-plane shear properties of composite materials by applying controlled shear loading on a V-notched specimen to evaluate strength and deformation behavior.

    The V-notch creates a localized stress concentration that promotes uniform shear stress in the gauge section, ensuring accurate measurement of shear properties.

    The V-notch geometry forces stress concentration into a controlled gauge section, minimizing bending and axial stress interference. This creates a dominant shear stress field, allowing more accurate extraction of true in-plane shear properties.

    Nonlinearity occurs due to progressive matrix microcracking, fiber rotation, and interface slip. These mechanisms activate before ultimate failure, causing stiffness degradation even within the nominal elastic region.

    The polymer matrix has lower shear strength than reinforcing fibers, so microcracks initiate in the matrix first, later propagating to fiber interfaces and causing progressive delamination.

    ASTM D5379/D5379M evaluates the shear properties of high-modulus fiber-reinforced composite materials using the V-notched beam method, also known as the Iosipescu shear test. A rectangular specimen with opposing V-shaped notches is placed in a specialized fixture and subjected to a controlled compressive load. The notches concentrate shear stress in the test region, allowing the measurement of shear stress-strain behavior, ultimate shear strength, ultimate shear strain, and shear modulus. The results support material characterization, quality control, and structural design.

    Why Choose Infinita Lab for V Notched Shear Composite Testing

    When your V Notched Shear Composite results have to hold up - for compliance, a customer audit, or an engineering decision - ASTM D5379 accuracy and an unbiased third-party report matter more than price. Infinita Lab routes your ASTM D5379 v notched shear composite testing to ISO/IEC 17025-accredited U.S. partner labs with hands-on method experience, so you get defensible data, transparent reporting, and turnaround times built around your project deadline - not ours.
