What Is ASTM D3983 Adhesive Thick Adherend Strength Shear Modulus?
ASTM D3983 defines a standardized method for measuring the shear strength and shear modulus of adhesive bonds using a thick-adherend tensile-shear specimen. The thick adherend geometry is specifically designed to minimize the bending deformation of the adherends during loading, resulting in a more uniform shear stress distribution across the bond area compared to standard thin-adherend single-lap shear tests. This allows a more accurate determination of both shear strength and the shear modulus of the adhesive layer.
In this test, massive, rigid adherends are bonded with a controlled-thickness adhesive layer and loaded in tension. The relative displacement of the two adherends is measured with precision extensometers attached directly to the adherends near the bond, and the shear stress-strain relationship is determined. The shear modulus (G) is extracted from the linear portion of the shear stress-strain curve, providing a fundamental elastic property of the adhesive.
Applications and Benefits of ASTM D3983 Adhesive Thick Adherend Strength Shear Modulus Testing
Scope
ASTM D3983 evaluates:
- Shear strength of adhesive bonds with uniform stress distribution
- Shear modulus (G) of the adhesive layer
- Shear stress-strain relationship of the adhesive
- Effect of bondline thickness on adhesive shear modulus
- Environmental conditioning effects on adhesive modulus
- Comparative shear modulus of different adhesive formulations
Applications
- Structural adhesive characterization for FEA input data
- Aerospace adhesive material property determination
- Automotive structural adhesive qualification
- Research and development in adhesive mechanics
- Adhesive joint design data generation
- Bonded composite structure material property testing
- Industrial structural adhesive specification
Benefits
- Provides fundamental elastic (modulus) property of adhesive
- Reduces end-effect artifacts from adherend bending
- Enables accurate FEA modeling of adhesive joints
- Supports design of structurally loaded adhesive bonds
- Detects moisture or temperature effects on adhesive stiffness
- Provides data for constitutive model development

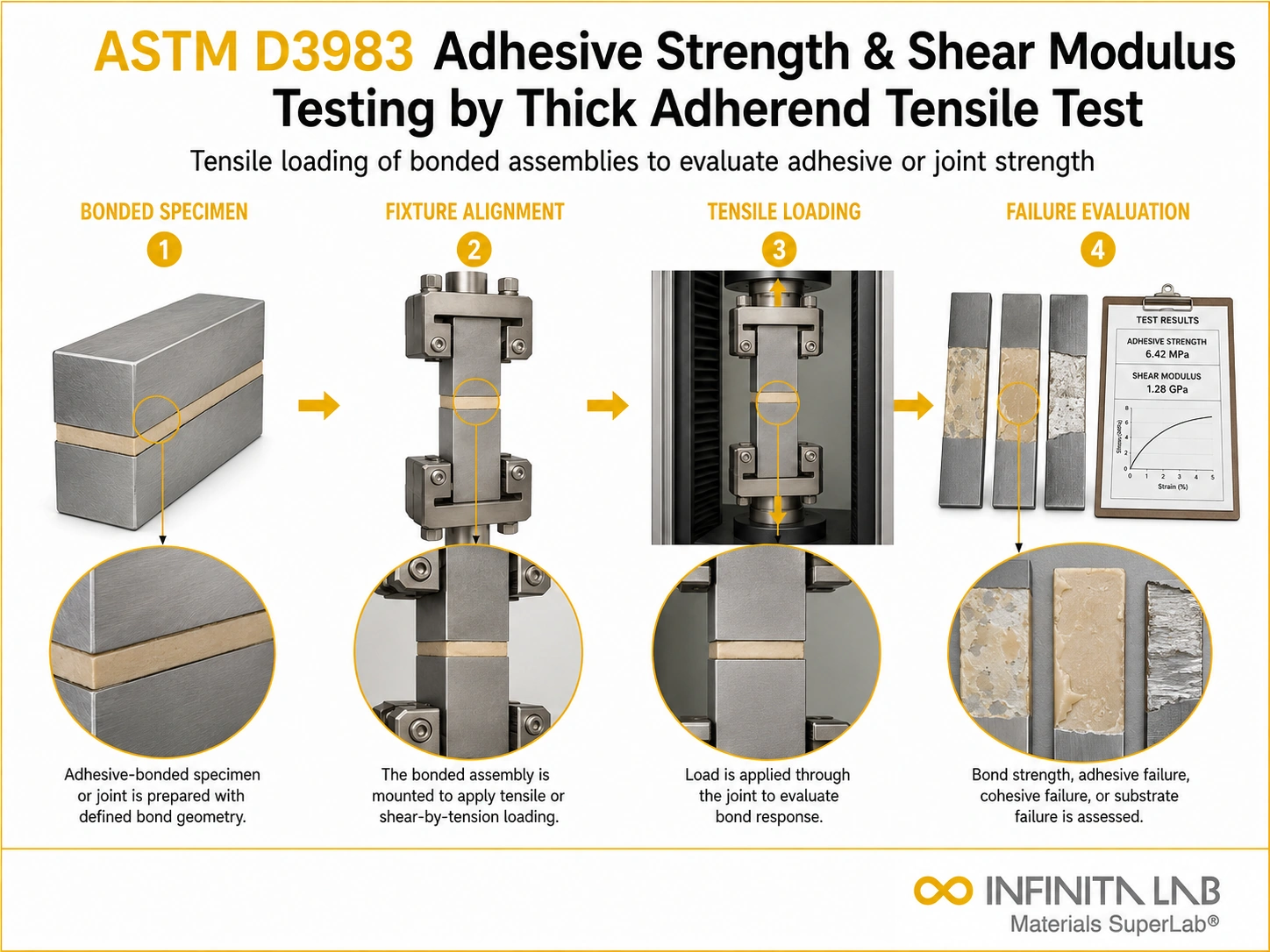

Our ASTM D3983 Testing Procedure
Specimen Fabrication
Thick metallic adherends are bonded with the test adhesive at a controlled bondline thickness.
1Extensometer Attachment
Precision extensometers are attached to the adherend surfaces adjacent to the bond.
2Tensile-Shear Loading
Specimen is loaded at a controlled rate; shear displacement and load are continuously recorded.
3Modulus Calculation
Shear modulus is calculated from the linear slope of the shear stress vs. shear strain curve.
4ASTM D3983 Test Parameters and Requirements
| Parameter | Details |
|---|---|
| Test Principle | Thick-adherend tensile-shear with extensometry |
| Specimen Type | Thick adherend single-lap shear |
| Applicable Materials | Structural adhesives |
| Output Units | MPa (shear strength), MPa (shear modulus G) |
| Measured Outputs | Shear strength, shear modulus, shear stress-strain curve |
- Universal testing machine (UTM) with tensile grips
- Precision extensometers (clip-on or LVDT type)
- Thick metallic adherend bonding fixtures
- Micrometer for bondline thickness control
- Data acquisition software
- Environmental conditioning chamber (optional)
Equipment and Instrumentation Used for ASTM D3983 Testing
What You Receive: Test Report, Data, and Certification
- Shear strength values (MPa)
- Shear modulus (G) values (MPa)
- Shear stress-strain curves
- Bondline thickness measurements
- Failure mode classification
- Compliance and FEA input data reports
ASTM D3983 Adhesive Thick Adherend Strength Shear Modulus FAQs
ASTM D3983 measures adhesive strength and shear modulus using thick adherend tensile specimens. It evaluates mechanical performance of bonded joints, helping assess load-bearing capacity and stiffness of structural adhesive systems.
Key parameters include specimen geometry, adhesive thickness, curing conditions, loading rate, and alignment. Controlled conditions ensure accurate measurement of tensile strength and shear modulus of adhesive bonds.
The test measures tensile strength and calculates shear modulus of adhesive layers. Results indicate stiffness, strength, and mechanical behavior of adhesive bonds under tensile loading conditions.
ASTM D3983 applies to structural adhesives used in bonding metals, composites, and other materials in aerospace, automotive, construction, and industrial applications requiring high-strength joints.
ASTM D3983 results depend on specimen preparation and curing conditions. It may not fully represent real-world loading or environmental conditions, requiring additional testing for fatigue, temperature effects, or long-term durability.
Shear adhesion testing evaluates an adhesive’s ability to resist forces that cause bonded surfaces to slide past one another. According to ASTM D3983, thick-adherend lap-shear specimens are prepared using an adhesive between substrates such as wood, metal, or composites. The specimens are loaded in a testing machine, and the load and displacement are measured to determine shear strength and shear modulus.
A high shear strength adhesive is designed to resist forces acting parallel to the bonded interface. Its performance depends on factors such as adhesive chemistry, substrate preparation, bond-line thickness, curing conditions, and service environment. ASTM D3983 evaluates the shear strength and shear modulus of nonrigid adhesives using thick-adherend lap-shear specimens, helping assess their mechanical behavior under loading.
A high modulus adhesive has greater stiffness and generally undergoes less deformation under a given load than a lower modulus adhesive. Its mechanical behavior can be evaluated by measuring the relationship between applied shear stress and shear strain. ASTM D3983 is intended for nonrigid adhesives with shear moduli up to 700 MPa (100,000 psi), so it may not be suitable for high-modulus adhesives beyond this range.
