What Is ASTM D5656 Adhesive Thick Adherend Shear Stress Strain?
ASTM D5656 evaluates the stress-strain behavior of adhesives in shear by applying tensile loading to bonded specimens. It characterizes how adhesives deform and resist shear forces, providing insight into mechanical performance under load.
This method is essential for understanding adhesive stiffness, strength, and deformation characteristics. It supports material selection, design validation, and quality control by providing detailed information on how adhesives behave under shear stress conditions in structural applications.
Applications and Benefits of ASTM D5656 Adhesive Thick Adherend Shear Stress Strain Testing
Scope
ASTM D5656 covers the determination of stress-strain properties of adhesives subjected to shear through tensile loading. It focuses on evaluating mechanical response including modulus, strength, and deformation behavior.
- Applicable to structural adhesives
- Measures shear stress-strain behavior
- Uses tensile loading configuration
- Determines modulus and strength properties
- Supports material characterization and design
Applications
- Structural adhesive evaluation
- Automotive and aerospace bonding
- Composite and metal joint analysis
- Product design and validation
- Adhesive formulation development
- Quality control in manufacturing
- Research and mechanical studies
Benefits
- Provides detailed mechanical behavior data
- Helps predict joint performance
- Supports reliable adhesive selection
- Improves structural design accuracy
- Enhances product durability
- Enables consistent quality assurance

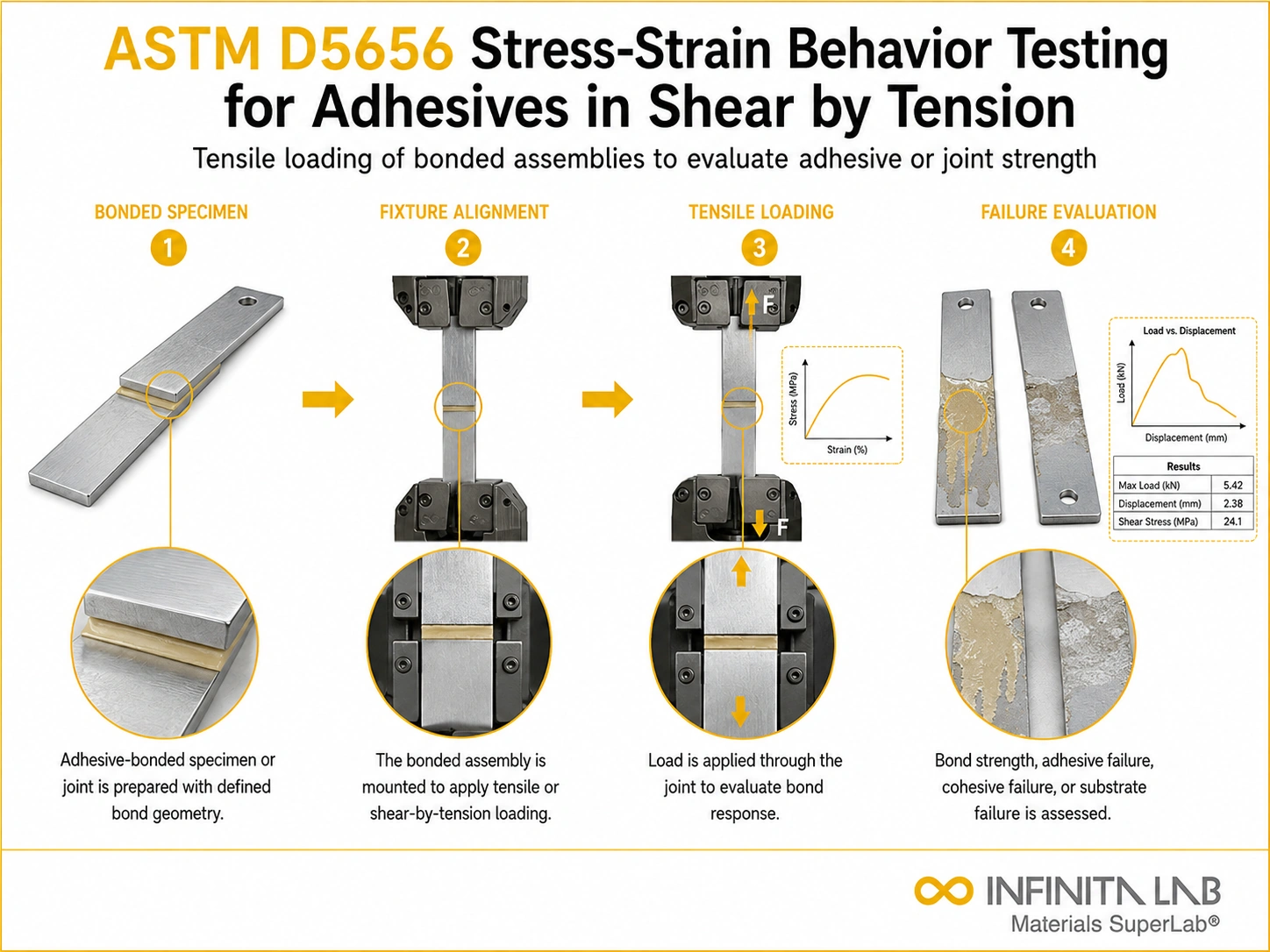

Our ASTM D5656 Testing Procedure
Specimen Preparation
Adhesive is applied between substrates and cured to form a bonded joint specimen.
1Fixture Setup
Specimen is mounted in a tensile testing machine configured for shear loading.
2Load Application
Tensile load is applied at a controlled rate to induce shear stress in the adhesive layer.
3Data Analysis
Stress-strain data is recorded and used to determine mechanical properties.
4ASTM D5656 Test Parameters and Requirements
| Parameter | Details |
|---|---|
| Property Measured | Shear stress-strain behavior |
| Sample Type | Bonded adhesive joints |
| Loading Mode | Tensile-induced shear |
| Output | Stress-strain curve |
| Units | Stress (MPa), Strain (%) |
| Test Control | Constant crosshead speed |
| Data Recording | Continuous load and displacement |
| Failure Mode | Shear failure observation |
- Universal testing machine
- Shear test fixture
- Load cell
- Extensometer or displacement sensor
- Data acquisition system
- Specimen preparation tools
Equipment and Instrumentation Used for ASTM D5656 Testing
What You Receive: Test Report, Data, and Certification
- Shear stress-strain curve
- Shear modulus and strength values
- Strain at failure
- Failure mode analysis
- Comparative adhesive performance data
- Detailed test report
ASTM D5656 Adhesive Thick Adherend Shear Stress Strain FAQs
ASTM D5656 is important because it provides detailed stress-strain behavior of adhesives under shear loading. This helps engineers understand deformation, stiffness, and failure characteristics, ensuring reliable joint design and performance in structural applications.
ASTM D5656 shows how an adhesive responds to applied shear stress, including elastic deformation, yielding, and failure. This information is essential for predicting performance under mechanical loads.
ASTM D5656 provides a complete stress-strain curve, while simple shear tests only measure maximum strength. It offers deeper insight into adhesive behavior, including modulus and deformation characteristics.
Factors such as adhesive type, curing conditions, substrate properties, and test speed influence results. ASTM D5656 requires controlled conditions for accurate measurements.
ASTM D5656 focuses on shear behavior under tensile loading and may not represent other loading conditions such as peel or impact, requiring additional tests.
Shear adhesion testing evaluates the strength of an adhesive bond when a force is applied parallel to the bonded surfaces. Two material pieces are joined using an adhesive with a specified overlap area and allowed to cure under controlled conditions. The bonded specimen is then placed in a universal testing machine, which applies a pulling force along the bond line until failure occurs. The maximum force is recorded and divided by the bonded area to determine the shear strength. The results help assess adhesive performance, bond durability, and suitability for structural or industrial applications.
ASTM D1056 is a standard specification for flexible cellular materials, including sponge rubber and expanded rubber. Testing evaluates the material's physical properties to determine whether it meets the specified type, class, and grade requirements. Depending on the material and application, laboratory evaluations include compression-deflection, density, accelerated aging, water absorption, fluid immersion, oil resistance, and low-temperature flexibility tests. The measured results are compared with the requirements of the applicable ASTM D1056 classification to assess material quality and performance in applications such as seals, gaskets, cushioning, and insulation.
Why Choose Infinita Lab for Adhesive Thick Adherend Shear Stress Strain Testing?
When your Adhesive Thick Adherend Shear Stress Strain results have to hold up - for compliance, a customer audit, or an engineering decision - ASTM D5656 accuracy and an unbiased third-party report matter more than price. Infinita Lab routes your ASTM D5656 adhesive thick adherend shear stress strain testing to ISO/IEC 17025-accredited U.S. partner labs with hands-on method experience, so you get defensible data, transparent reporting, and turnaround times built around your project deadline - not ours.
