Filler Content in Polymers: Testing Methods, Standards & Quality Impact
Polymer tensile testing per ASTM D638 standards at Infinita Lab testing facilityWhat Is Filler Content in Polymers?
Filler content refers to the proportion of inorganic or organic non-polymeric materials intentionally added to a polymer matrix to modify its properties, reduce cost, or improve specific performance characteristics. Fillers and reinforcements are among the most widely used polymer modifiers in the industry — transforming base polymers into tailored engineering materials with precisely defined mechanical, thermal, electrical, and physical properties.
Understanding and accurately measuring filler content is critical for material specification compliance, quality control, verification of compound consistency, and predicting the performance of filled polymer products in service.
Types of Polymer Fillers
Inorganic Mineral Fillers
Calcium carbonate (CaCO₃): The most widely used filler — added to PVC, polyolefins, and thermosets to reduce cost, increase stiffness, and improve surface finish. Ground calcium carbonate (GCC) and precipitated calcium carbonate (PCC) are the two main forms.
Talc: A platy mineral that improves stiffness, creep resistance, HDT, and surface quality in polypropylene and other thermoplastics — widely used in automotive interior components.
Kaolin (China Clay) and Wollastonite: Mineral fillers used in nylon, polyesters, and thermoplastics to improve stiffness, dimensional stability, and electrical properties.
Barium Sulfate: Dense filler adding weight and radiopacity — used in medical device components, automotive damping materials, and X-ray shielding applications.
Glass Fiber Reinforcement
Short glass fibers (typically 3–6 mm chopped) or long glass fibers (LGF, >10 mm) provide dramatic improvements in tensile strength, flexural modulus, HDT, and fatigue resistance. Typical loading levels are 10–50% by weight in engineering plastic compounds (GF-PA, GF-PP, GF-PET, GF-PBT).
Carbon Fiber Reinforcement
Higher cost but superior performance versus glass fiber — particularly for applications requiring maximum specific stiffness and strength with minimum weight (aerospace, high-performance automotive, sporting goods).
Flame Retardant Fillers
Aluminum Trihydroxide (ATH) and Magnesium Hydroxide (MDH): Inorganic flame retardant fillers that decompose endothermically at flame temperatures, releasing water vapor to dilute combustible gases. Used at high loading levels (40–65% by weight) in halogen-free flame retardant (HFFR) compounds for wire/cable insulation, roofing membranes, and building products.
Carbon Black
Adds UV stabilization, electrical conductivity, and reinforcement to polymers. The primary UV stabilizer in polyolefin outdoor applications (HDPE pipe, agricultural film) — typically at 2–3% loading. At higher loadings (10–30%), carbon black makes polymers electrically conductive for antistatic and EMI shielding applications.
Testing Methods for Filler Content

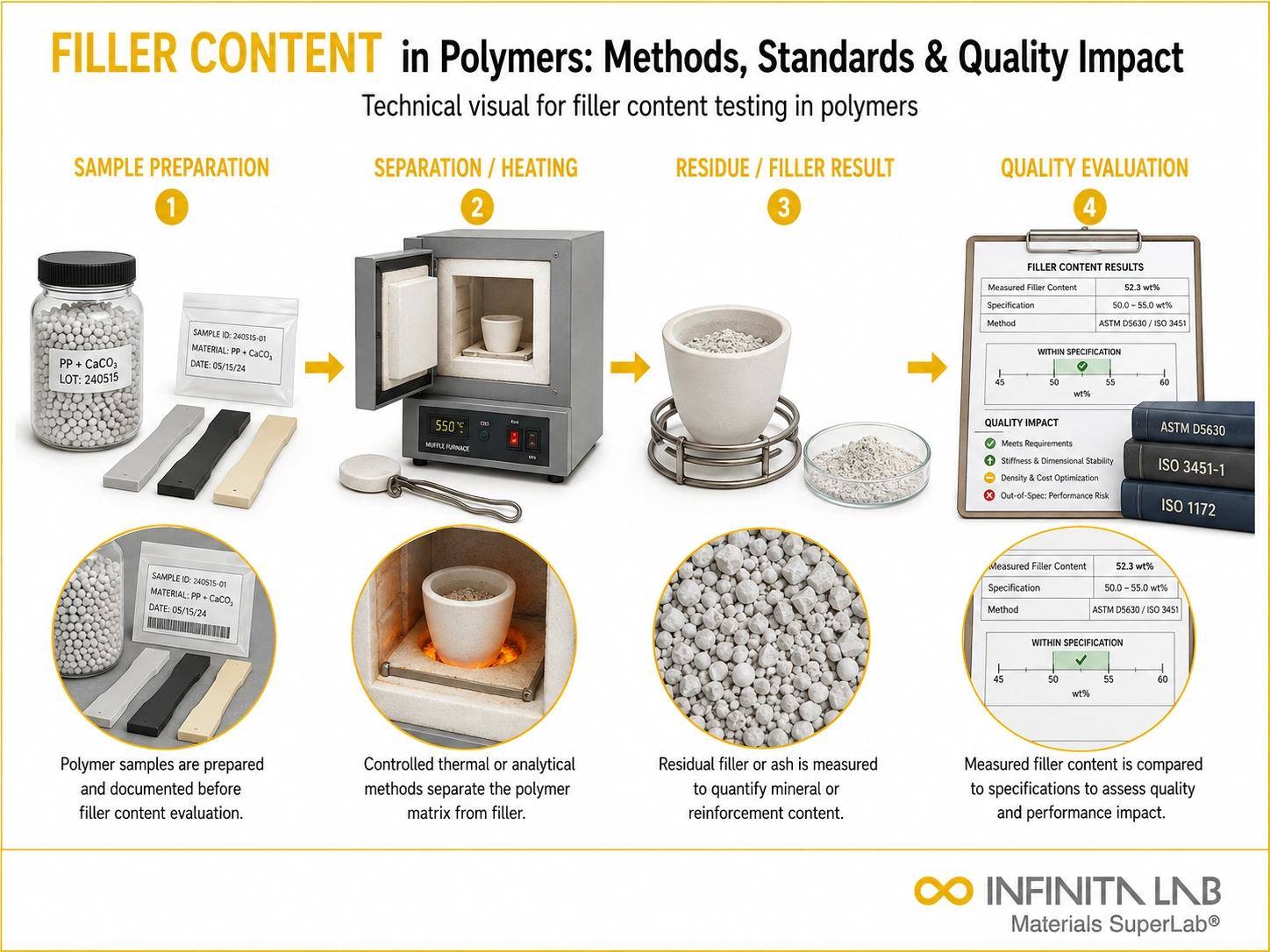

Ash Content (ASTM D5630, ISO 3451)
The primary quantitative method for inorganic filler content — specimens are burned in a muffle furnace at 600°C until constant mass is achieved, and the remaining ash is weighed. Ash content = total inorganic filler content (glass fiber + mineral filler + flame retardant filler combined). Individual component identification requires supplementary techniques.
Thermogravimetric Analysis (TGA)
TGA provides ash content with a simultaneous thermal decomposition profile — distinguishing polymer burn-off, glass fiber/mineral content, and carbon black content by their different temperature ranges of mass loss:
- Polymer decomposition: Typically 300–500°C
- Carbon black combustion (in air/oxygen): 500–700°C
- Inorganic filler residue: Remaining mass above 700°C
TGA allows the simultaneous determination of polymer, carbon black, and inorganic filler contents in a single test run.
Glass Fiber Content by Ignition (ASTM D2584)
Specifically for glass-fiber-reinforced thermosets, the resin matrix is burned off, leaving the glass-fiber residue. Glass-fiber content (%) = (residual mass / original mass) × 100.
FTIR and Raman Spectroscopy
Qualitative identification of filler type from characteristic absorption or scattering peaks — useful for identifying unknown fillers and confirming filler identity in incoming material screening.
XRF (X-Ray Fluorescence)
Elemental analysis of the ash residue, or directly on the compound, identifies the organic filler type and approximate composition (calcium from CaCO₃, magnesium from talc or MDH, aluminum from ATH or glass fiber, silicon from silica or glass).
Why Filler Content Matters
Mechanical Properties: Glass fiber and mineral filler content directly determine tensile strength, flexural modulus, HDT, and impact resistance — the key parameters that define an engineering plastic grade.
Processing Behavior: Filler content affects melt viscosity, shrinkage, warpage, and cycle time in injection molding. Incoming material filler content verification prevents processing problems and dimensional non-conformance.
Cost Control: Fillers are typically lower-cost than polymer resin. Filler content testing prevents under- or over-loading that affects both cost and performance.
Regulatory Compliance: Flame-retardant filler content must be verified to confirm that fire performance requirements are met. Restricted substance fillers (e.g., antimony trioxide) must be quantified for REACH compliance.
Recycling: Filler content in recycled-polymer streams affects the quality and marketability of the recyclate.
Conclusion
Filler content testing — spanning ash content, TGA, glass fiber ignition, FTIR, and XRF analysis per ASTM D5630, D2584, and ISO 3451 across mineral fillers, glass fiber reinforcements, flame retardant fillers, and carbon black in thermoplastics, thermosets, and rubber compounds — provides the quantitative verification required to confirm compound quality, control mechanical properties, and meet regulatory compliance requirements at every stage from incoming material acceptance through production quality control. Selecting the right test method for the filler type and measurement objective — whether muffle furnace ash content for routine inorganic filler verification or TGA for simultaneous polymer, carbon black, and mineral filler determination in a single run — is what determines whether filler content data accurately represents compound composition, making method selection as critical as the measurement itself.
Why Choose Infinita Lab for Filler Content Testing?
Infinita Lab offers comprehensive filler content testing services — ash content, TGA, glass fiber content, FTIR, and XRF — across its network of 2,000+ accredited labs in the USA. Our advanced equipment and expert professionals deliver highly accurate, prompt results, helping businesses verify the quality of incoming compounds, maintain production consistency, and meet specification requirements with confidence.
Looking for a trusted partner to achieve your research goals? Schedule a meeting with us, send us a request, or call us at (888) 878-3090 to learn more about our services and how we can support you. Request a Quote.
Frequently Asked Questions
Can ash content testing distinguish between glass fiber and mineral filler? Ash content testing measures total inorganic residue — it cannot directly distinguish between glass fiber and mineral filler in a mixed compound. SEM/EDS of the ash, XRF elemental analysis, or XRD phase identification of the residue is required to identify and proportion individual inorganic components.
How does TGA provide more information than simple muffle furnace ash content? TGA measures mass loss continuously as a function of temperature — distinguishing polymer burnoff, carbon black combustion (in air switching), and inorganic filler residue by their characteristic temperature ranges. A single TGA run can simultaneously quantify polymer content, carbon black content, and total inorganic filler content.
What filler level is typical for glass-fiber reinforced engineering plastics? Common glass fiber loadings are 15%, 20%, 30%, and 33% by weight — with some specialty grades reaching 40–50%. At 30% GF, tensile strength and flexural modulus typically double or triple compared to the unfilled base resin, accompanied by a significant increase in HDT.
Why is carbon black content important to verify in polyolefin pipe materials? HDPE and PP pipe materials for gas and water distribution require 2–2.5% carbon black by weight to provide adequate UV stabilization for long-term outdoor service (50+ years). Below specification carbon black causes UV degradation, embrittlement, and premature failure of buried infrastructure — making carbon black content verification a critical quality control test.
What ASTM standards cover filler content testing in polymers? Key standards include ASTM D5630 (ash content, plastics), ASTM D2584 (ignition loss — GRP composites), ASTM D1603 (carbon black in olefin plastics — muffle furnace), ASTM D4218 (carbon black by TGA), and ISO 3451 (ash content — international equivalent of D5630).
