The Modulus of Rupture of Tiles

Introduction

The modulus of rupture of tiles, more commonly known as the flexural or transverse rupture strength, is the maximum load-carrying capacity a material can withstand just before fracture. It measures pressure or force per unit area. The two essential characteristics of tiles in construction and design revolve around strength and durability. Another vital aspect is MOR or Modulus of Rupture. This name sounds highly technical, and understanding what it is could mean a world of difference when architects, engineers, and even DIYers choose the correct tile type for their needs in construction. It refers to the intensity of a tile’s strength level when it undergoes stress or strain.

Understanding Modulus of Rupture (MOR)

Modulus of Rupture, often called by its abbreviation MOR, refers to a material’s strength. It is, more particularly, the flexural strength of the material- or the ability to bend without deforming under load. The MOR is an essential factor in tile design. It refers to the degree of bend the tile can undergo without breaking. This becomes very relevant, especially when a tile is under a hefty load or has a lot of traffic. The MOR determination involves a specific testing procedure. The tile is subjected to pressure in a graduated fashion until the breaking point. The maximum stress it will resist at the breaking point is its MOR.

Key points about MOR are as follows:

• It is the measure of flexural strength in the tile.
• It depicts the resistance of tiles to the deformation that results from loading.
• A definite test procedure defines it.
• MOR is an issue of utmost importance when selecting and applying tiles.

Understanding tile rupture will help select the correct tile for the proper application, ensuring durability and longevity.

Scope of Rupture of Tiles:

MOR is a significant factor in the tile industry. It directly affects the quality, durability, and safety of the tiles. The tiles with high MOR withstand higher stress before rupture or breaking. Therefore, they are very suitable for use in places with the highest traffic or where heavy objects could fall. On the other hand, low MOR tiles are more prone to breakage. They find their perfect application in areas where the traffic is low or the weight applied is minimal.

Furthermore, knowing the MOR of tiles during the manufacturing process helps in quality control, ensuring that the manufactured tiles will possess the strength they need.

In essence, the Modulus of rupture of tiles plays a significant role in defining their suitability for specific applications, durability, and quality in general.

Procedure:

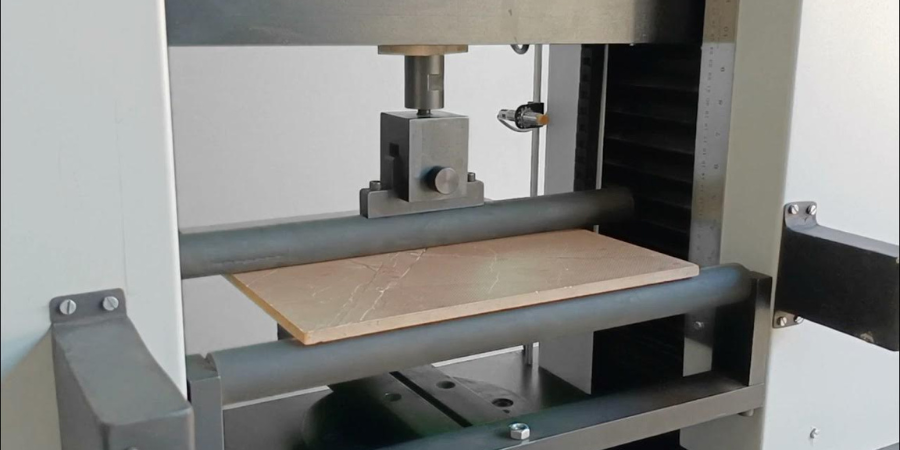

Measurements of MOR in tiles involve several activities. First is the preparation of the tile samples. Samples are cut to size according to the standards to be followed in testing. The specimens are then conditioned to achieve uniformity of the same. The actual testing involves a machine that applies force to the tile, increasing the force progressively until the tile breaks. This force is then used, along with the tile’s dimensions and the point of breakage, to calculate the MOR. The technique provides a reliable measure of a tile’s flexural strength, which helps judge its resistance to breakage under certain conditions.

Standards and Specification of MOR

Standards are established for testing and calculating the Modulus of Rupture, MOR so that results are consistent and reliable. One of the well-recognized standard-setting bodies is ASTM International. The ASTM C648-04 standard covers the test method for the modulus of rupture of ceramic tiles. This standard describes the size and conditioning of the tile samples to be tested. It also provides information on the apparatus for testing and how MOR is calculated. Adherence to these standards is imperative because it ensures that the determined value of MOR is accurate and comparable among tiles of different types and from other manufacturers.

Types of Tiles and Their MOR Values

Various tiles have different Modulus of Rupture values, which depend mainly on the material composition and the method of manufacture.

For example, the MOR of porcelain tiles is higher than the modulus of rupture ceramic tiles. Indeed, their more compact composition, along with the method of high-temperature firing, is beneficial. However, it is also important that within each category, it is again possible to have variation in MOR. This comes in the light of such factors as the quality of the raw material and the precision of the manufacturing process.

Understanding such variations can help you choose appropriate tiles for particular applications.

Factors Affecting MOR of Tiles

Many factors may affect the MOR of tiles. First and foremost is the material composition of the tile. The type and quality of raw materials used will significantly impact the strength of the tile.

The manufacturing process also plays an important role. Factors like the temperature and duration of the firing can affect the tile’s MOR. External conditions like temperature and humidity may also impact the tiles’ MOR. Tiles exposed to extreme conditions may show different MOR values. Lastly, the design and thickness of the tile can also affect the MOR. Thicker tiles typically have higher MOR values.

MOR Values Interpretation for Tile Selection

Understanding the Modulus of Rupture, or MOR, will help select a tile. Generally speaking, the higher the MOR, the more robust and durable the tile. However, the intended application of tiles must be considered. High-MOR tiles are recommended for areas with high foot traffic or load. On the other hand, tiles with low MOR will suffice for wall applications or areas with less traffic. Remember, the MOR is only one factor to consider. Other properties to be investigated include water absorption and slip resistance.

Advantages and Limitations of MOR:

The following are some advantages & limitations of MOR:

Result:

This test measures the maximum load that a tile can handle before breaking. It aids in selecting appropriate tiles for varied applications based on longevity in performance and reliability.

Conclusion

The modulus of rupture of tiles is one of the most essential measures that denote tile quality and safety. It gives an excellent indication of the resistance or strength that a tile can handle due to its stress without breaking. Knowledge of MOR is vital for manufacturers, architects, and consumers. This helps them make informed decisions regarding tile selections based on desired performance and ensures the safety and durability of surfaces laid with tiles. Besides, regular MOR testing helps maintain industrial standards and the quality of the products. They highly contribute to quality control and assurance.
