Everything You Need to Know About ASTM D638 Tensile Properties Testing for Plastics

What is ASTM D638 Testing?

The tensile properties, including tensile strength, elongation, and modulus of elasticity, can be determined using the ASTM D638 test method, a standardized procedure employed to evaluate these properties in plastic materials. This provides a reliable means of assessing how plastics behave when subjected to uniaxial tensile stress until failure.

This test enables engineers and manufacturers to understand the mechanical performance of plastics under load, ensuring their suitability for structural or functional applications.

Why is ASTM D638 Testing Important?

Tensile testing was performed on the samples to consider material performance, product design, and establish regulatory compliance.

It ensures that plastics used in engineering, packaging, automotive, or medical applications meet required strength and durability standards.

Tensile data are often requested by regulatory bodies and consumers for validation against specifications such as ASTM, ISO, or industry-specific standards, ensuring reliability and safety in service.

Which Materials Can Be Tested Under ASTM D638?

ASTM D638 applies to a wide range of rigid and semi-rigid plastics, including:

• Thermoplastics (e.g., polyethylene, polypropylene, PVC, nylon, ABS)
• Thermosetting plastics (e.g., epoxy, phenolic, polyester)
• Reinforced plastics and composites
• Molded, extruded, or cast plastic parts

Typical sample forms: sheets, rods, plates, molded specimens, or films of uniform thickness.

What Information Do ASTM D638 Test Results Provide?

The ASTM D638 test provides a complete set of tensile performance parameters, as shown below:

These results are used to compare materials, validate processing consistency, and predict product performance under load.

What Industries Use ASTM D638 Testing?

ASTM D638 testing is widely used across multiple sectors, including:

• Automotive: Structural plastics, bumpers, interior components
• Aerospace: Lightweight composite panels, plastic housings
• Consumer Goods: Appliance parts, casings, handles
• Electrical and Electronics: Insulating materials, enclosures
• Medical Devices: Tubing, surgical instruments, disposable parts

It supports material selection, quality control, and failure analysis across all industries that rely on polymer components.

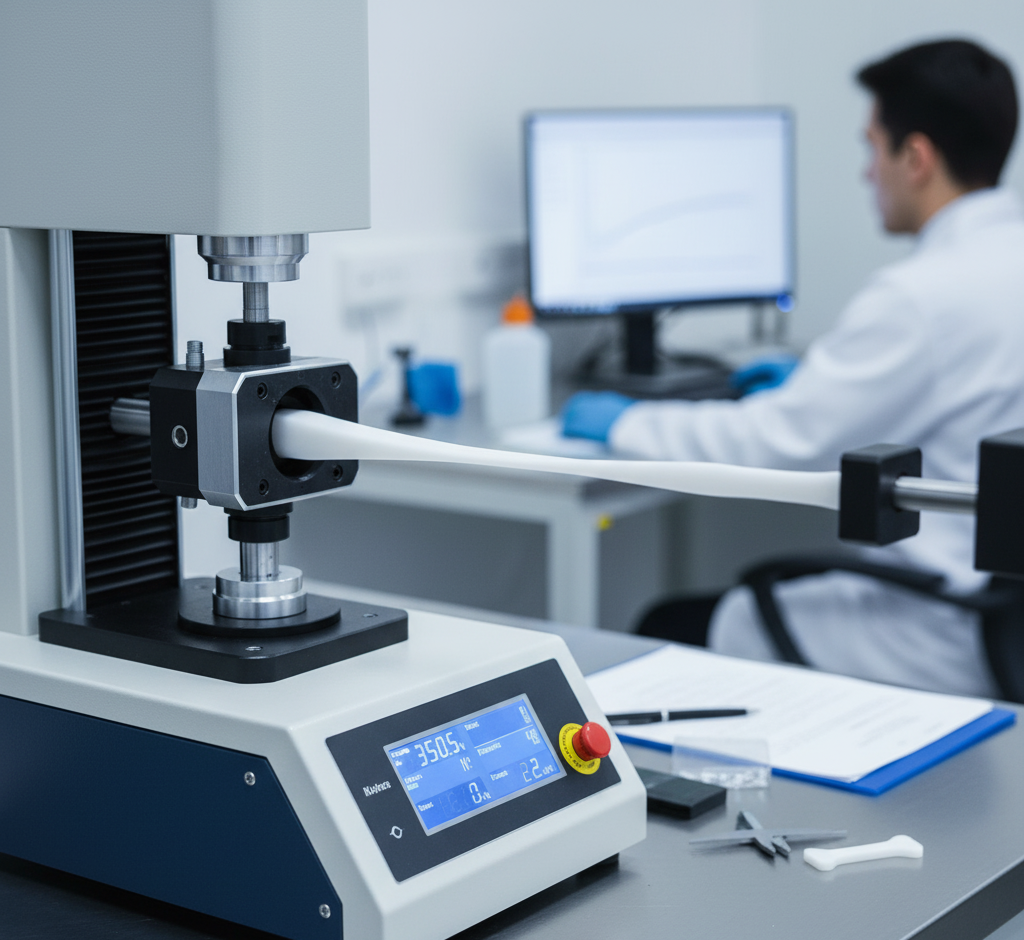

What Equipment Is Used for ASTM D638 Testing?

The primary equipment includes:

• Universal Testing Machine (UTM): Capable of applying controlled tensile load and measuring force-displacement.
• Load Cells: For precise force measurement.
• Extensometer: To record elongation or strain.
• Grips or Fixtures: To securely hold the specimen ends.
• Environmental Chamber (optional): For testing under controlled temperature and humidity.

How Is the ASTM D638 Test Performed?

Step-by-Step Procedure:

• Specimen Preparation:
  Samples are machined or molded to a dumbbell shape according to ASTM D638 Type I–V geometry, depending on material thickness.
• Conditioning:
  Specimens are conditioned at 23°C ± 2°C and 50% ± 5% relative humidity for a minimum of 40 hours before testing.
• Mounting:
  The specimen is clamped in the grips of a testing machine.
• Testing:
  A uniaxial tensile load is applied at a constant rate of crosshead movement, usually 5 mm/min for rigid plastics.
• Data Recording:
  The UTM continually records force and elongation until the specimen fractures.
• Calculations:
  The software calculates stress-strain curves and key tensile parameters, including strength, modulus, and elongation.

What Are the Standard Test Conditions?

• Temperature: 23°C ± 2°C
• Relative Humidity: 50% ± 5%
• Crosshead Speed: Typically 5 mm/min (may vary by material type)
• Specimen Dimensions: Defined by Type I–V geometries in ASTM D638
• Environment: Controlled laboratory conditions to minimize variation.

Key Properties Measured

In general, ASTM D638 measures the tensile strength (maximum stress before breaking), tensile modulus, and elongation at break (a measure of ductility). These properties collectively describe how a plastic material will perform in applications involving pulling, stretching, or mechanical loading.

Related Testing Methods

• ISO 527: Plastics – Determination of Tensile Properties
• ASTM D882: Tensile Properties of Thin Plastic Sheeting
• ASTM D3039: Tensile Properties of Polymer Matrix Composites
• ASTM D412: Tensile Properties of Rubber and Elastomers

D638 Standard Test Method for Tensile Properties of Plastics

Conclusion

ASTM D638 is one of the most widely used and fundamental tests for determining the mechanical integrity and performance of plastics. Evaluating tensile strength, modulus, and elongation ensures that materials meet required performance, safety, and design standards across industries.

This test is essential for material selection, product validation, and quality assurance, making it a cornerstone of polymer testing and engineering development.
