Shear Strength Testing of Reinforced Plastics: Methods & ASTM Standards
What Is the Shear Strength Test of Reinforced Plastics?
The shear strength test of reinforced plastics determines a material’s ability to withstand forces that cause its layers or internal structure to slide against each other. In reinforced plastics — materials combining a polymer matrix with fibrous reinforcements such as glass fibre, carbon fibre, or aramid — shear failure is one of the most critical and common failure modes.
Shear strength testing is a fundamental quality assurance and design validation requirement across the electrical, electronics, aerospace, automotive, marine, and industrial equipment sectors, where reinforced plastics are increasingly replacing traditional metals and ceramics.
Types of Shear Tests for Reinforced Plastics
Interlaminar Shear Strength (ILSS) Test
The Interlaminar Shear Strength test evaluates resistance to delamination between the laminate layers of a reinforced plastic. It is one of the most widely used shear tests and is governed by ASTM D2344 and ISO 14130. The short-beam shear geometry is commonly used, where a specimen is loaded in three-point bending to induce shear stress between plies.
In-Plane Shear Test

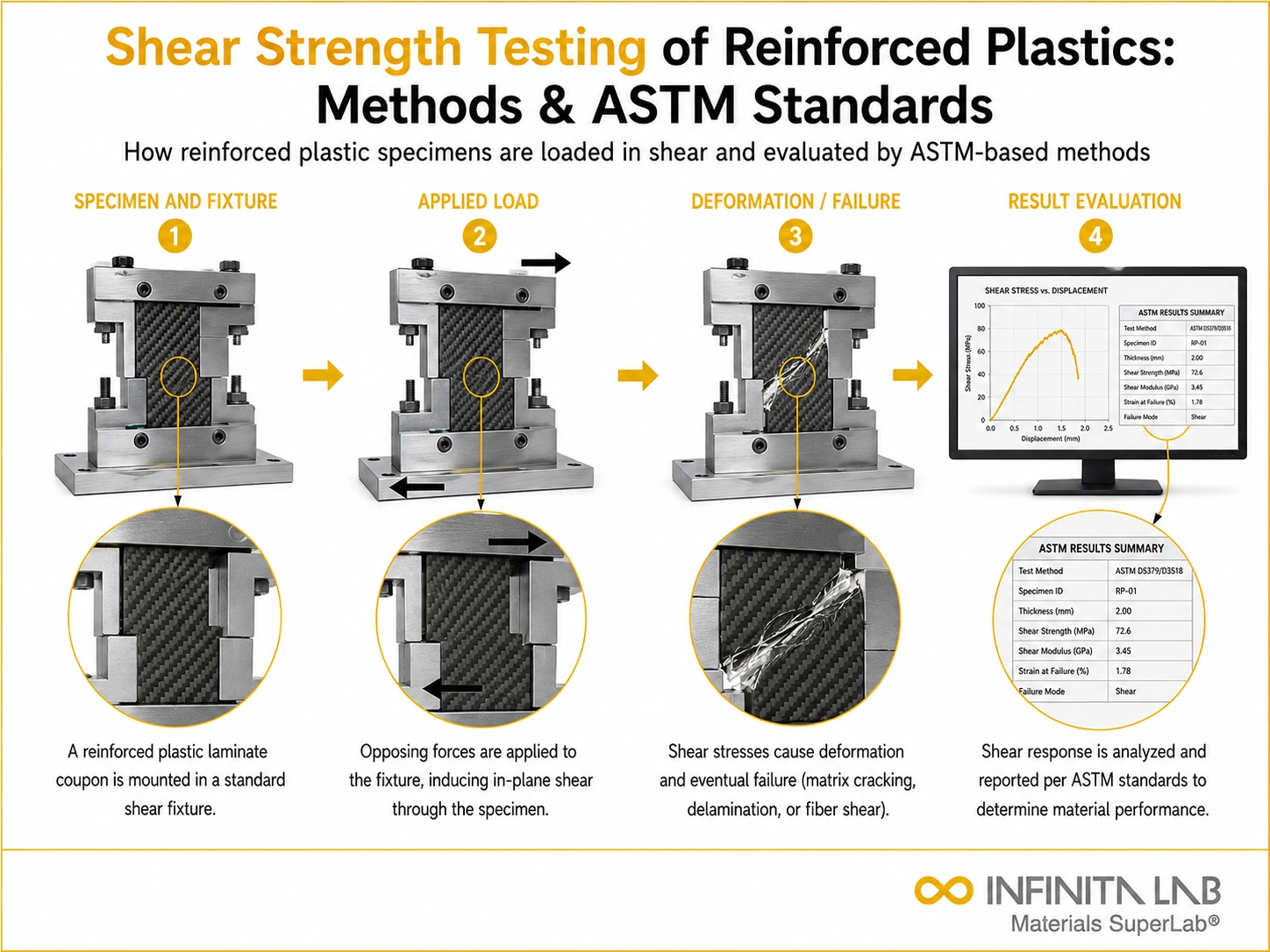

In-plane shear testing measures shear properties parallel to the laminate plane, including shear modulus and shear stress at failure. Methods include the V-Notched Rail Shear test (ASTM D7078), the Iosipescu test (ASTM D5379), and the ±45° tensile test (ASTM D3518).
Pin Shear Test
The pin-bearing shear test evaluates the shear strength at joint locations — critical for reinforced plastic components that are bolted, riveted, or pinned to metal substructures.
Key Parameters Measured
- Ultimate Shear Strength: Maximum shear stress before specimen failure
- Shear Modulus: Elastic shear stiffness of the material
- Interlaminar Shear Strength: Bond quality between reinforcing layers
- Failure Mode: Identifying whether failure is cohesive, adhesive, or a mixed mode
Materials Commonly Tested
Reinforced plastics tested for shear strength include:
- Glass Fibre Reinforced Polymer (GFRP)
- Carbon Fibre Reinforced Polymer (CFRP)
- Aramid Fibre Reinforced Polymer (AFRP)
- Woven and non-crimp fabric composites
- Short-fibre injection-moulded reinforced thermoplastics
Industrial Importance of Shear Strength Testing
Electrical and Electronics Industry
Reinforced plastic substrates such as FR4 printed circuit boards depend on adequate interlaminar shear strength to survive thermal cycling, vibration, and mechanical stress during assembly and operation.
Aerospace and Defence
Structural panels, ribs, and spars in aircraft rely on validated shear properties to prevent catastrophic delamination under combined aerodynamic and inertial loads.
Automotive Industry
Composite load floors, door panels, and battery enclosures in electric vehicles undergo shear testing to confirm resistance to crash and impact loads.
Marine and Wind Energy
Reinforced plastic hulls, masts, and turbine blades require shear characterisation to ensure structural integrity over decades of cyclic loading in harsh environments.
Conclusion
The shear strength test of reinforced plastics is a critical tool for evaluating how composite materials respond to internal sliding forces that can lead to delamination or structural failure. By assessing properties such as interlaminar shear strength, in-plane shear behaviour, and joint integrity, these tests provide essential data for material selection, product design, and quality assurance.
With standardised methods such as ASTM D2344, ASTM D7078, ASTM D5379, and ASTM D3518, industries can ensure consistent and reliable measurement of shear properties across different composite systems. Whether used in aerospace structures, automotive components, electronic substrates, or marine applications, shear strength testing plays a vital role in ensuring long-term performance, safety, and durability of reinforced plastic materials.
Why Choose Infinita Lab for Shear Strength Testing of Reinforced Plastics?
Infinita Lab provides end-to-end shear strength testing services for reinforced plastics, supported by a network of 2,000+ accredited laboratories across the USA. Our team handles every aspect from specimen preparation to test execution and reporting, reducing your administrative burden and accelerating development timelines.
Looking for a trusted partner to achieve your research goals? Schedule a meeting with us, send us a request, or call us at (888) 878-3090 to learn more about our services and how we can support you.
Frequently Asked Questions (FAQs)
Why is shear strength important in reinforced plastics? Shear strength is crucial because reinforced plastics are layered materials, and failure often occurs due to sliding between layers (delamination). Understanding shear behaviour helps prevent structural failure in real-world applications.
What is the difference between interlaminar and in-plane shear testing? Interlaminar shear testing measures the strength between layers of a composite, while in-plane shear testing evaluates shear properties within the plane of the laminate (along the fibres).
What materials are typically tested for shear strength? Materials include GFRP, CFRP, AFRP, woven composites, and short-fibre reinforced thermoplastics.
What causes shear failure in reinforced plastics? Shear failure can occur due to poor fibre-matrix bonding, manufacturing defects, excessive loading, or environmental factors such as moisture and temperature.
How is interlaminar shear strength (ILSS) measured? ILSS is typically measured using a short-beam three-point bending test, where shear stress is induced between layers until failure occurs.
