ASTM E23 Test for Notched Bar Impact Testing of Metals

ASTM E23 test method describes notched-bar impact testing of metals by the Charpy (simple-beam) test and the Izod (cantilever-beam) test.

TRUSTED BY ENGINEERS FROM

Introduction

What is ASTM E23?

ASTM E23 Test Standard outlines the procedure for conducting Notched Bar Impact Testing of Metals, commonly known as the Charpy impact test or the Izod impact test. Such tests cover the energy absorbed by notched metal specimens during one blow from a picked pendulum. The results are beneficial in delineating toughness and the capacity of the material to absorb energy during the impact event, particularly at varying temperatures.

Scope of ASTM E23

ASTM E23 method is used to determine the behavior of a notched metal when subjected to an impact load; a high-intensity blow is applied over an instant. In this test, the loading rate is high, and in some cases, temperatures are extreme. Because of the notch, the resulting stresses are multiaxial. It also helps determine how materials behave under impact loading, helping identify potential brittle or ductile failure behavior.

ASTM E23 Test Procedure

The ASTM E23 test procedure, such as temperature requirements test methods used, specimen preparation, and test execution, are as follows:

Temperature Requirements	Test Methods	Specimen Preparation	Test Execution

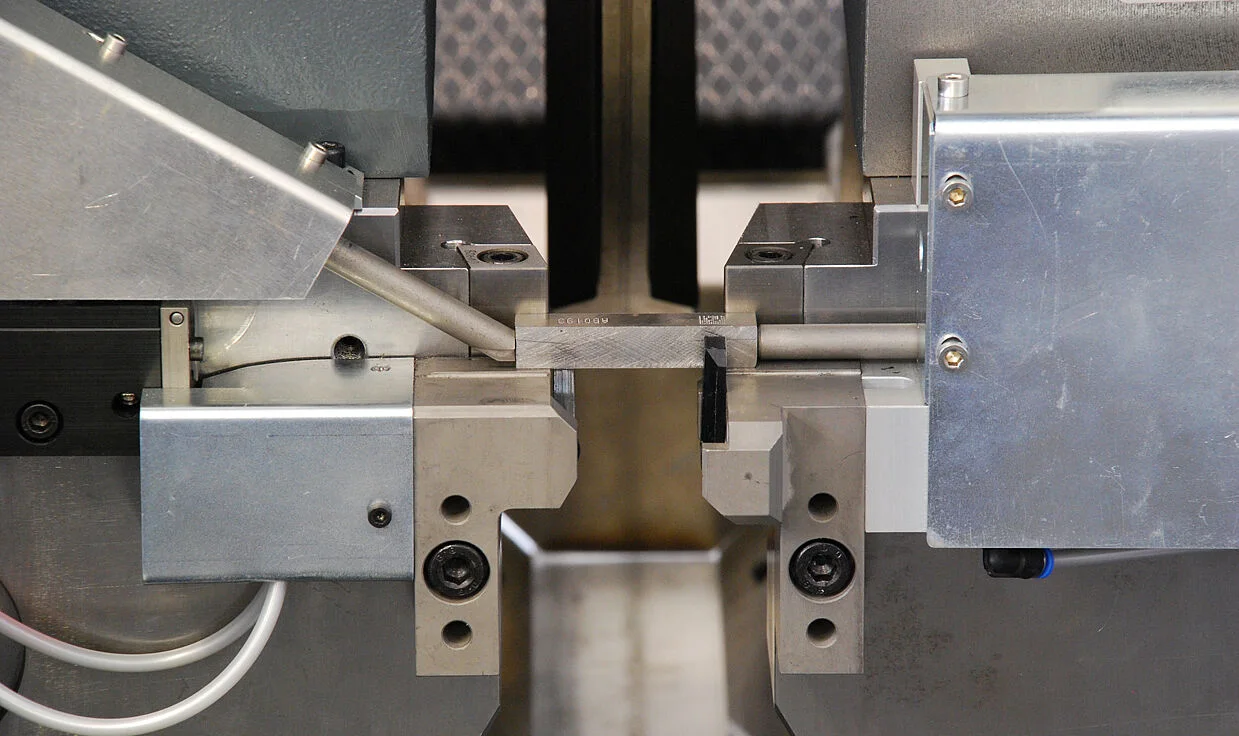

This test is carried out on the sample under different temperatures to evaluate the material’s behavior under various environmental conditions. Latent changes in the material properties, from ductile to brittle, are usually observed at lower temperatures. It is done in ambient or elevated or cryogenic temperatures according to the use of the material.	Charpy Test: The ASTM E23 Charpy impact test employs a metal specimen with a notch horizontally supported at both ends. A pendulum strikes it at the midpoint opposite the notch. Izod Test: In the Izod test, a pendulum strikes a vertically clamped specimen near the top.	The specimen is notched using standard geometries and dimensions such as V-notch or U-notch geometries. Required testing temperature: If needed, the specimen is warmed to a specific degree before the test is conducted on it.	The sample will be kept in the testing machine in Charpy or Izod configuration. A pendulum is first loaded with weight and allowed to swing and hit the specimen.

Result

In ASTM E23, the impact test determines the energy needed to fracture a material on impact. It is used to measure the toughness of the material. It can indicate the yield strength. The ductile-brittle transition temperature (DBTT) can be derived as well.

Specimen Size

The types of specimens tested vary with ASTM E23, according to the kind of material to be tested. The sizes and geometries of the specimens are as follows:

Specimens are usually rectangular bars (55 mm long and 10 mm square in cross-section), with either a V-notch or U-notch.
The notch also serves as a stress concentrator, provoking fracture and simulating the response to a crack or defect.

Applications of ASTM E23

Aerospace: In aerospace, mechanical tests are applied to the objects to validate whether they withstand the dynamic loads and impacts in the event of performance.

Automotive: Crash and impact behavior and material safety are tested; indeed, significant material selection has been identified that can absorb crash energies when affected by impacts.

Manufacturing: Assists in the quality control of processes by evaluating the toughness of metal alloys in various applications.

Research and Development: Can support the development of new materials with advanced impact resistance in furthering the science of metallurgy.

Conclusion

Impact Test ASTM E23 is one of the most important ways to establish materials for fracture toughness, whether their performance under dynamic loading conditions will be critical. Further, by knowing how the material will behave at different temperatures and with varying configurations of notch, this test helps ensure the reliability and safety of metal components in demanding applications.

FAQs

What is the purpose of ASTM E23?

ASTM E23 establishes standard methods for determining the impact resistance of materials, especially metals, through notched bar testing.

What is the typical size of a test specimen?

The standard specimen for conducting the Charpy impact testing is a rectangular bar with 55 mm length × 10 mm width × 10 mm thickness and has either a V-notch or U-notch machined in its center.

What materials are tested using ASTM E23?

Metals like steel, aluminum, titanium, and nickel alloys are commonly tested using ASTM E23, particularly in industries where impact resistance is crucial.

What does a low energy absorption value indicate?

Low energy absorption value indicates that the material is brittle and may quickly fail due to sudden impact or shock-loading conditions. Hence, it is a critical parameter in determining the suitability of materials in specific applications in cold environments.
