ASTM E384 Microhardness Testing Explained: Vickers & Knoop Methods
What is ASTM E384 Testing?
ASTM E384 is the standard test method that describes the determination of microindentation hardness of materials using test forces that are usually in the range from 1 gf to 1000 gf (0.0098 N to 9.8 N).
In such a test, the hardness of tiny volumes of material, such as thin coatings, microstructures, and small parts, is measured, where the use of traditional hardness methods like Rockwell or Brinell is not possible.
Microindentation hardness testing utilizes either a Knoop or Vickers indenter under controlled loading conditions. The size of the indentation left on the material surface is measured optically and used to calculate hardness values.
This technique enables the accurate determination of surface hardness, case depth, and mechanical uniformity in metals, ceramics, coatings, and composite materials.
Why is ASTM E384 Testing Important?
Micro indentation hardness testing is crucial in materials research, quality control, and failure analysis because it provides quantitative insights into the small-scale mechanical behavior of materials.
ASTM E384 helps to:
- Evaluate hardness gradients across coatings, surface treatments, or heat-affected zones.
- Characterize thin films and microstructures in metals, ceramics, and composites.
- Assess the effects of modifications, such as surface modification effects like carburizing, nitriding, or anodizing.
- Support material development and process optimization in advanced manufacturing.
- Ensure consistency and reliability in the evaluation of mechanical properties at the microscale.
By standardizing test parameters and procedures, ASTM E384 ensures the generation of repeatable and comparable hardness data across laboratories and industries.
Which Materials Can Be Tested Under ASTM E384?
ASTM E384 applies to a wide range of solid materials, including:
- Metals and alloys (e.g., steels, aluminium, copper, titanium)
- Ceramics and glasses
- Thin coatings and surface films
- Polymers and composites
- Microelectronic components and small parts
The test is particularly valuable when the area to be measured is small, nonuniform, or exhibits hardness variations across the surface.
What Information Do ASTM E384 Test Results Provide?
The ASTM E384 test provides key hardness data that reflect a material’s resistance to plastic deformation under a small applied load.
| Parameter | Unit | Description |
| Vickers Hardness (HV) | kgf/mm² or GPa | Determined from the diagonal length of the square indentation |
| Knoop Hardness (HK) | kgf/mm² or GPa | Determined from the long diagonal of rhombohedral indentation |
| Indentation Depth | µm | Depth of penetration at specified load |
| Load vs. Hardness Curve | — | Relationship between applied force and measured hardness |
These results enable correlation with other mechanical properties, such as tensile strength, yield stress, or wear resistance.
What Industries Use ASTM E384 Testing?
ASTM E384 testing is used across industries that rely on high-precision material characterization, including:
- Aerospace and Automotive: Surface treatment verification and coating hardness
- Metallurgy: Grain size and phase hardness studies
- Microelectronics: Thin-film and solder joint evaluation
- Biomedical: Hardness testing of implants and coatings
- R&D and Quality Control: Material comparison, performance assessment, and process validation
This test is indispensable in both research environments and industrial laboratories where microstructural accuracy matters.

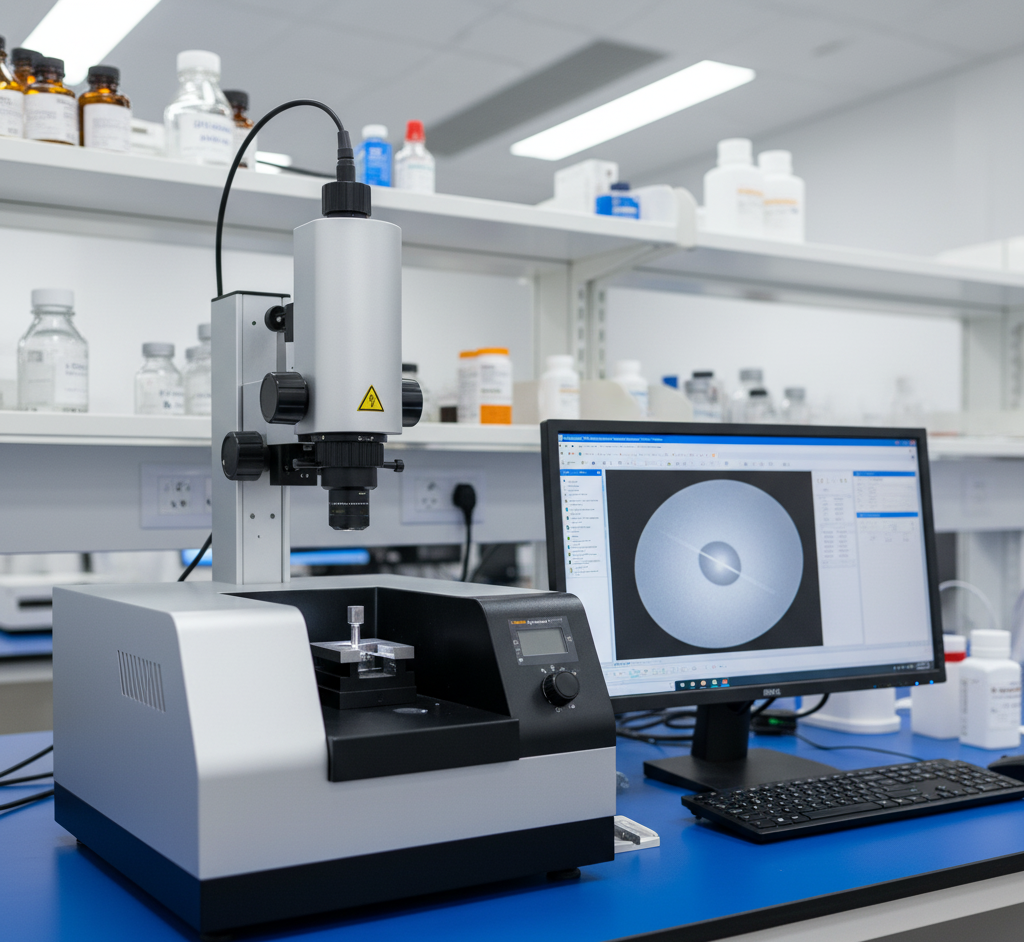

What Equipment Is Used for ASTM E384 Testing?
The typical test setup includes:
- Microhardness Tester: Equipped with a load application system (1–1000 gf)
- Indenters: Knoop and Vickers diamond indenters
- Optical Microscope: For measuring indentation diagonals accurately
- Stage and Positioning Controls: For precise specimen placement
- Load Cell and Controller: To ensure consistent test force application
- Calibration Standards: For hardness verification and instrument accuracy
How Is the ASTM E384 Test Performed?
Step-by-Step Procedure:
- Sample Preparation:
The material surface must be flat, polished, and free of scratches or debris to obtain accurate indentations. - Indenter Selection:
Choose either a Vickers or a Knoop diamond indenter depending on the material type and test purpose.- Vickers: Used for isotropic materials and bulk hardness.
- Knoop: Ideal for thin coatings or anisotropic materials.
- Applying the Load:
A specific test force is applied to the indenter for a set dwell time (usually 10–15 seconds). - Measuring the Indentation:
After unloading, the diagonal lengths (Vickers) or long diagonal (Knoop) of the indentation are measured using an optical microscope. - Calculating Hardness:
Hardness values (HV or HK) are calculated using standardized formulas based on the applied load and measured indentation dimensions. - Data Analysis:
Results can be plotted to show hardness variations across the specimen or correlated with material processing parameters.
What Are the Standard Test Conditions?
| Parameter | Typical Condition |
| Test Load Range | 1 gf – 1000 gf |
| Dwell Time | 10–15 seconds |
| Indenter Type | Knoop or Vickers diamond |
| Surface Finish | Polished (mirror-like) |
| Temperature | Ambient laboratory conditions |
| Measurement Accuracy | ±1% (indentation length) |
Consistent preparation, calibration, and load application are crucial for producing reliable and reproducible results.
Key Properties Measured
ASTM E384 measures a material’s microhardness, reflecting its resistance to localized plastic deformation at small scales.
This property is especially significant for thin films, coatings, or heterogeneous materials where bulk hardness tests are unsuitable.
Microhardness values can indicate:
- Surface treatment effectiveness
- Phase distribution and uniformity
- Grain size and microstructural variation
- Wear resistance and durability
Related Testing Methods
- ASTM E92: Vickers Hardness of Metallic Materials
- ASTM E18: Rockwell Hardness of Metallic Materials
- ASTM E140: Conversion of Hardness Values
- ISO 6507 / ISO 4545: International equivalents for Vickers and Knoop hardness
- ASTM B578: Microhardness of electrodeposited coatings
Conclusion
ASTM E384 represents the precise, standardized method for testing material microindentation hardness, which is necessary to understand surface mechanical behavior at the microscale.
This test enables the determination of hardness with great accuracy for thin coatings, microstructures, and small components, utilizing controlled loads and optical measurement of tiny indentations.
The standard test method ASTM E384 is widely utilized and accepted in research institutions, manufacturing industries, and quality assurance laboratories for surface evaluation, process control, and material development.
It remains one of the cornerstone tests for ensuring mechanical integrity and performance reliability in modern engineering materials.
Partnering with Infinita Lab for Optimal Results
Infinita Lab addresses the most frustrating pain points in the <Service Name> testing process: complexity, coordination, and confidentiality. Our platform is built for secure, simplified support, allowing engineering and R&D teams to focus on what matters most: innovation. From kickoff to final report, we orchestrate every detail—fast, seamlessly, and behind the scenes.
Looking for a trusted partner to achieve your research goals? Schedule a meeting with us, send us a request, or call us at (888) 878-3090 to learn more about our services and how we can support you. Request a Quote
FAQs on ASTM E384 Testing
What is ASTM E384 testing? ASTM E384 is a standardized method for determining the microindentation hardness of materials using small applied loads and optical measurement of indentation size. It measures hardness using either a Vickers or Knoop diamond indenter under controlled conditions.
Why is ASTM E384 essential? This test is essential for evaluating hardness on a microscopic scale, especially in thin coatings, small components, or microstructures. It helps ensure material quality, uniformity, and performance in precision-engineered products.
How is the ASTM E384 test performed? A small load is applied using a diamond indenter for a specific dwell time (usually 10–15 seconds). After unloading, the indentation size is measured microscopically. Hardness is calculated based on the applied load divided by the surface area of the indentation.
