Tear Properties of Plastic Films & Sheets: Testing Methods & ASTM Standards

What are the Tear Properties of Plastic?

Tear properties of plastic describe a material’s resistance to the initiation and propagation of a tear when subjected to a tearing force. Unlike tensile properties (which characterise uniform stress distribution), tear testing focuses on the behaviour of a plastic film, sheet, or moulded part at a localised stress concentration — a notch, slit, or nick — where tearing initiates.

Tear resistance is a critical performance attribute for plastic films, packaging materials, agricultural covers, geomembranes, medical device packaging, and flexible electronic substrates, where accidental tearing during handling, processing, or service must be prevented.

Types of Tear Tests for Plastics

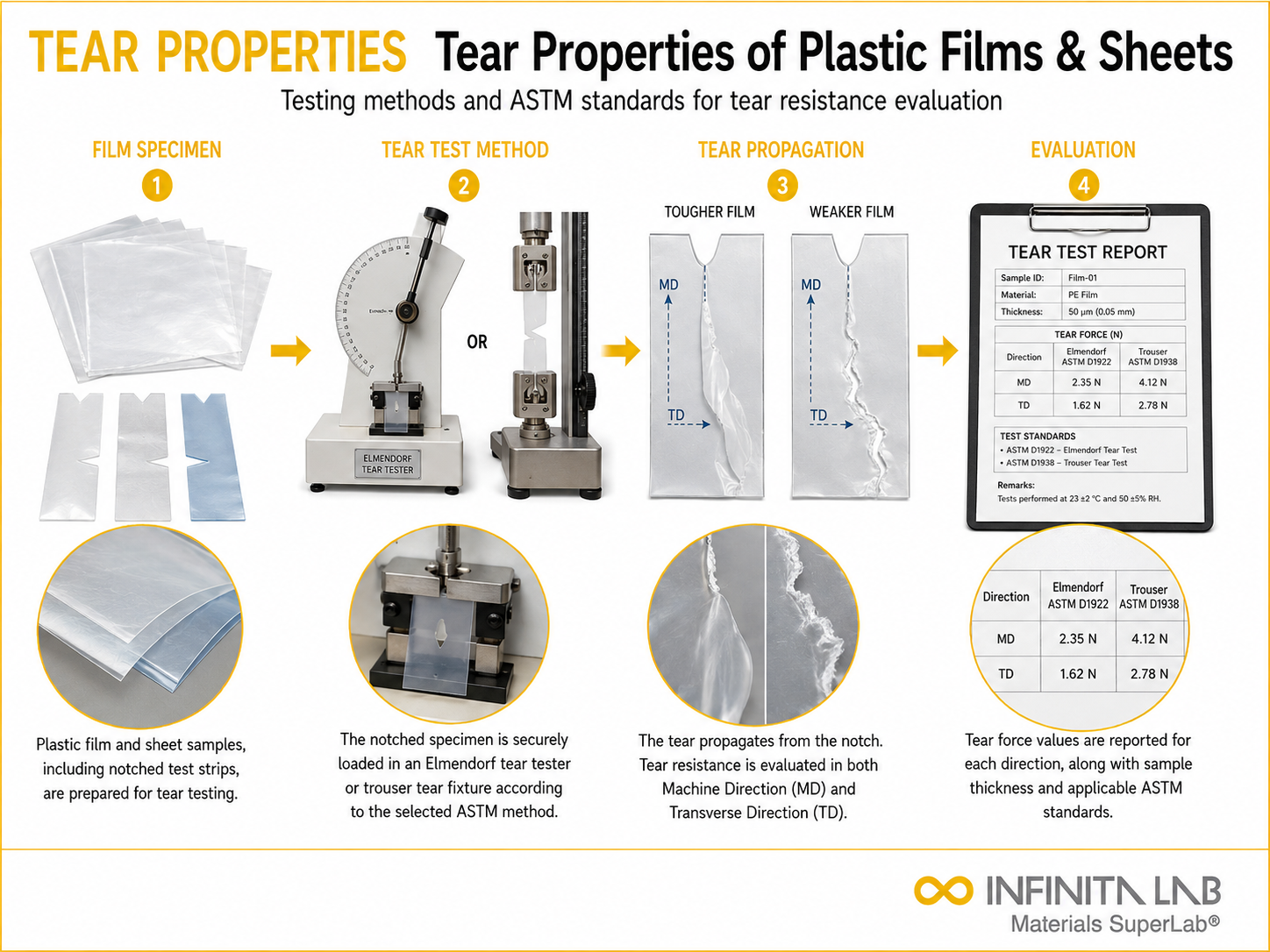

Elmendorf Tear Test (ASTM D1922 / ISO 6383-2)

The Elmendorf test measures the energy required to propagate a pre-initiated tear through a defined length of film or thin sheet. A pendulum-based instrument releases a swinging arm that tears a pre-cut specimen. The tear resistance is expressed in grams-force (gf) or millinewtons (mN) and represents the average force to propagate the tear.

Elmendorf tear testing is particularly relevant for packaging films, agricultural plastic, and flexible sheeting, where propagation tear resistance governs in-use performance.

Graves Tear Test (ASTM D1004)

The Graves (or die C) test measures the force required to initiate a tear in a moulded or cut crescent-shaped specimen. It evaluates initiation tear strength rather than propagation resistance. This test is commonly used for rubber and flexible plastics in medical and industrial applications.

Trouser Tear Test (ASTM D1938 / ISO 6383-1)

The Trouser tear test applies a pulling force to two “legs” of a pre-slit film specimen in a tensile testing machine. It measures the average force to propagate the tear across a defined test length, providing fracture energy data relevant to flexible packaging, geomembranes, and protective films.

Tongue Tear Test (ASTM D2261)

Used primarily for woven and non-woven plastic fabrics and laminates, the tongue tear test grips a tongue cut from the centre of the specimen and measures the force to propagate a tear through the woven structure.

Factors Affecting Tear Properties of Plastics

Tear resistance depends on molecular weight and molecular weight distribution, crystallinity, orientation (machine direction vs. transverse direction), plasticiser content, filler type and loading, and temperature. Oriented films (biaxially oriented polypropylene (BOPP), biaxially oriented PET (BOPET)) exhibit highly directional tear properties — easy tear in one direction, high resistance in the other.

Industrial Applications

In flexible packaging, tear initiation and propagation resistance govern whether a package can be opened cleanly by hand. In agricultural films, resistance to wind-induced tear propagation governs service life. In geomembranes, tear resistance governs resistance to puncture-induced propagation. In medical device packaging, Elmendorf tear data feeds into sterile barrier system qualification per ASTM F2824.

Conclusion

Tear properties of plastics are a vital measure of how materials behave under localised stress conditions where cracks or notches are present. By evaluating both tear initiation and propagation resistance through standardised tests such as Elmendorf, Graves, and trouser tear methods, manufacturers can predict real-world performance in demanding applications. Understanding these properties enables the design of plastic materials that balance strength, flexibility, and controlled tear behaviour—ensuring durability, usability, and safety across packaging, medical, agricultural, and industrial applications.
