Effects of Material Interfaces on Thermal Transmission: Science & Testing
Thermal management is a critical engineering challenge across industries ranging from electronics cooling and building insulation to aerospace thermal protection and power generation. While bulk material thermal conductivity is a well-understood property, the influence of interfaces between dissimilar materials on heat transfer is often underappreciated — yet can dominate the thermal performance of a multi-layer system. Understanding and testing the effects of material interfaces on thermal transmission is essential for designing high-performance thermal management systems.
What Is Thermal Transmission at Material Interfaces?
When heat flows through a multi-layer system — an insulated panel, a bonded assembly, a composite laminate, or an electronic package — it must cross the interfaces between adjacent materials. At these interfaces, several physical phenomena impede or modify heat transfer:
Thermal Contact Resistance (TCR): Even when two smooth surfaces are pressed together, they only make contact over a small fraction of the apparent contact area. Microscopic surface asperities trap air (a poor thermal conductor) in tiny gaps between the surfaces. The resulting thermal resistance at the interface is called thermal contact resistance. TCR is expressed as interface thermal resistance in m²·K/W.
Thermal Interface Material (TIM) Effects: In electronics and thermal management assemblies, thermal interface materials — greases, pads, phase-change materials, adhesives — are applied between heat-generating components and heat sinks to fill surface asperities and reduce contact resistance. The thermal conductivity and bond-line thickness of the TIM critically determine its effectiveness.
Delamination and Gap Formation: In bonded systems, delamination, voiding, or gap formation at interfaces dramatically increases local thermal resistance, creating hotspots in electronics or cold bridges in insulation systems.
Diffusion Bonding and Metallurgical Interface Effects: In metal-to-metal bonded systems, the nature of the metallurgical interface — whether brazed, soldered, diffusion-bonded, or adhesively joined — determines the interfacial thermal resistance and its stability under thermal cycling.

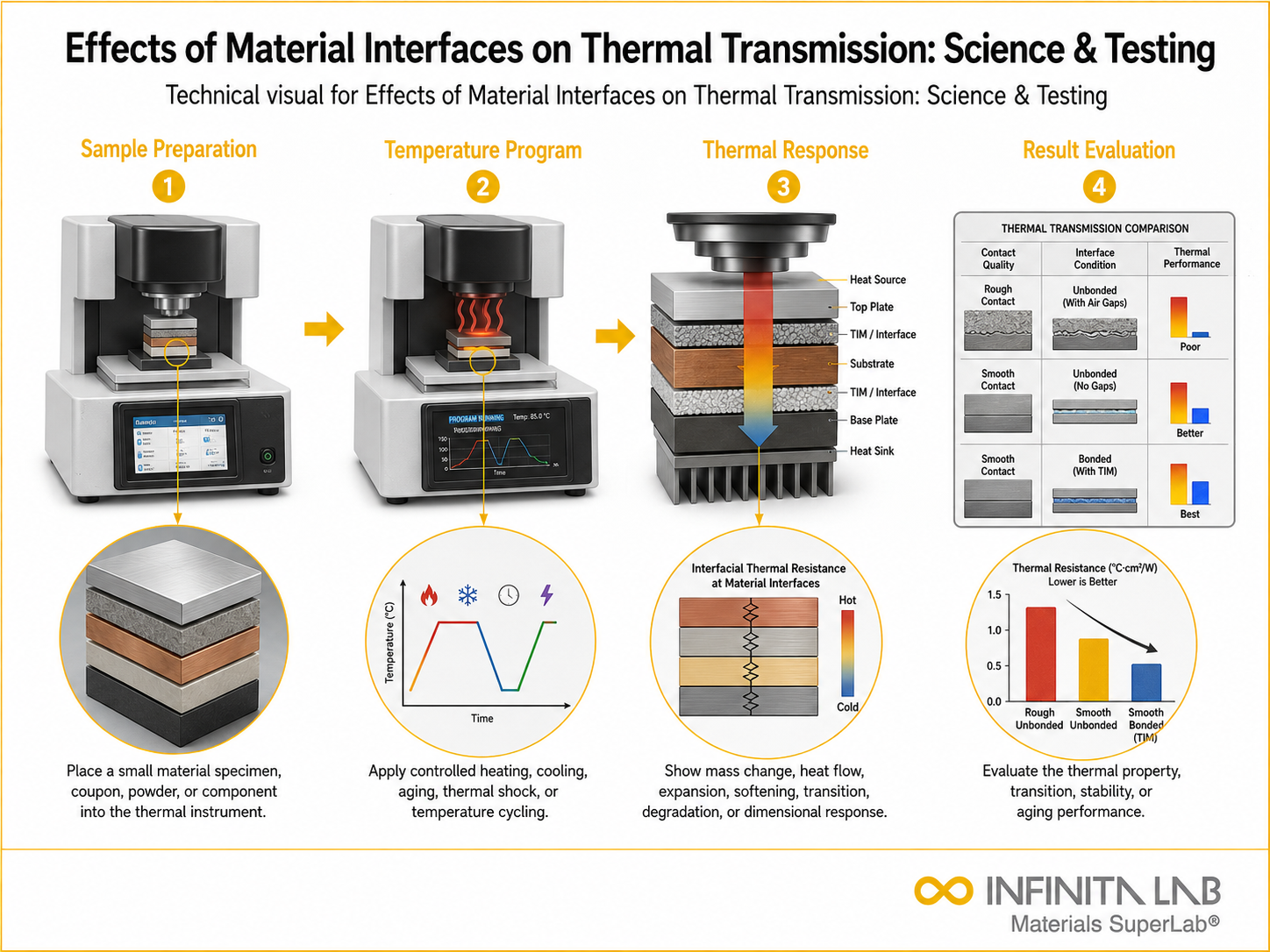

ASTM Standards for Measuring Interface Thermal Effects
ASTM C177 — Guarded Hot Plate Method
ASTM C177 measures steady-state thermal conductivity through flat specimens using a guarded hot plate apparatus. For multi-layer specimens, this method can characterize the combined thermal resistance of the layer stack—including interface resistances— the interfaces between layers are representative of service conditions.
ASTM C518 — Heat Flow Meter Apparatus
ASTM C518 provides a faster alternative to C177 for insulation and construction materials. The heat flow meter apparatus measures steady-state thermal transmission through specimens, including the contribution of interfaces when multiple layers are tested together.
ASTM D5470 — Thermal Interface Materials
ASTM D5470 is specifically designed to measure the thermal resistance and conductivity of thermal interface materials (TIMs) — greases, pads, films, and phase-change materials used in electronics thermal management. It accounts for the bond-line thickness and contact resistance effects that dominate TIM performance. Results are expressed as bulk thermal conductivity and interfacial thermal resistance.
ASTM E1530 — Thermal Resistance of Thin Specimens (Thermal Conductance)
ASTM E1530 uses a guarded heat flow meter to measure the thermal resistance of thin specimens, including adhesives, coatings, and composite layers where interface resistance is significant relative to bulk resistance.
Factors That Affect Interface Thermal Transmission
Surface Roughness and Flatness: Rougher surfaces lead to higher contact resistance because less actual metal-to-metal contact occurs. Flatness deviations (waviness) create large-scale gaps that further increase resistance.
Interface Pressure: Increasing contact pressure compresses surface asperities, increasing the actual contact area and reducing contact resistance. This is a key design parameter for heat sink clamping systems.
Thermal Interface Material Selection: TIM conductivity, viscosity, and bond-line thickness all affect interface thermal resistance. Higher-conductivity TIMs (e.g., metal-filled composites, indium foil) dramatically outperform basic thermal greases in high-flux applications.
Thermal Cycling Effects: Repeated thermal cycling causes differential thermal expansion between dissimilar materials, which can degrade TIM performance (pump-out of grease, delamination of pads) and increase contact resistance over time.
Industrial Applications
Electronics and Power Electronics: Interface thermal resistance between semiconductor dies, substrates, and heat sinks is a primary factor determining device junction temperature and reliability. In power electronics — inverters, converters, EV drives — interface optimization directly affects power density and thermal cycling life.
Aerospace: Multi-layer thermal protection systems (TPS) and composite panels must be characterized for their interfacial thermal resistance to ensure that the thermal models accurately predict component temperatures during flight.
Building and Insulation: Composite insulation panels, window assemblies, and wall systems are evaluated for their overall thermal transmittance (U-value), which includes the contributions of interface resistances between component layers.
Conclusion
Thermal transmission at material interfaces plays a decisive role in the overall heat transfer performance of multi-layer systems, often dominating over bulk material properties. By accurately measuring factors such as thermal contact resistance, interface materials, and bonding quality using standardized methods like ASTM C177, C518, D5470, and E1530, engineers can optimize thermal management, prevent hotspots and energy losses, and ensure reliable performance across electronics, aerospace, and construction applications.
Infinita Lab’s Thermal Transmission and Interface Testing Services
Infinita Lab provides comprehensive thermal transmission testing — including ASTM C177, C518, D5470, and E1530 — through its nationwide accredited laboratory network. Services cover bulk thermal conductivity, interface thermal resistance, TIM characterization, and multi-layer system thermal performance evaluation. Expert thermal analysts provide test reports with actionable engineering data.
Contact Infinita Lab: (888) 878-3090 | www.infinitalab.com
Frequently Asked Questions (FAQs)
What is thermal contact resistance and why does it matter? Thermal contact resistance arises when two surfaces are pressed together but only make contact over a fraction of their area, trapping air in gaps. It adds thermal resistance to a joint that is not accounted for in bulk material thermal conductivity — often dominating total thermal resistance in thin, well-conducting assemblies.
What is ASTM D5470 and what does it measure? ASTM D5470 measures the thermal resistance and thermal conductivity of thermal interface materials (TIMs) — accounting for bond-line thickness and contact resistance effects. It is the standard method for characterizing thermal greases, pads, phase-change materials, and adhesive films used in electronics thermal management.
What is the difference between ASTM C177 and ASTM C518 for thermal transmission testing? ASTM C177 (guarded hot plate) is the more precise reference method, suitable for a wide range of materials including insulators and conductors. ASTM C518 (heat flow meter) is faster and more suitable for routine quality control of insulation and construction materials, with reference calibration to C177.
How does thermal cycling degrade interface thermal performance? Repeated thermal cycling causes differential expansion between dissimilar materials, which can cause thermal grease pump-out, TIM pad delamination, or increased contact resistance — progressively increasing interface thermal resistance and component operating temperatures.
Which industries rely most on interface thermal transmission testing? Electronics and power electronics (die attach, TIM characterization), aerospace (multi-layer TPS thermal modeling), and building products (insulation composite panel U-value certification) are the primary users of interface thermal transmission testing.
