Introduction to Peel Tests: Types, Standards & Adhesive Bond Measurement
The Fundamentals of Peel Testing
Peel testing is the experimental measurement of the force required to progressively separate two bonded materials — a flexible substrate from a rigid or semi-rigid backing — by applying a sustained pulling force at a defined angle. Unlike tensile pull-off or lap shear tests that apply a single concentrated force, peel testing continuously advances a crack front along the bond line, making it exquisitely sensitive to bond uniformity, interfacial defects, and changes in adhesive properties along the length of the joint. Peel testing is foundational in the packaging, adhesives, electronics, and automotive industries for qualifying adhesive systems and laminated materials.
The Physics of Peeling
The apparent peel force measured in a test includes both the true interfacial adhesion energy (fracture energy per unit area, G) and the energy dissipated bending the peeling arm. For thin, flexible substrates at small peel angles, the bending energy contribution is small. For stiffer substrates or thicker adhesive layers, energy dissipation in the adhesive itself (viscoelastic dissipation) can dominate the measured peel force — explaining why peel force is rate- and temperature-dependent and why measured values differ between peel angles even for identical interfaces.

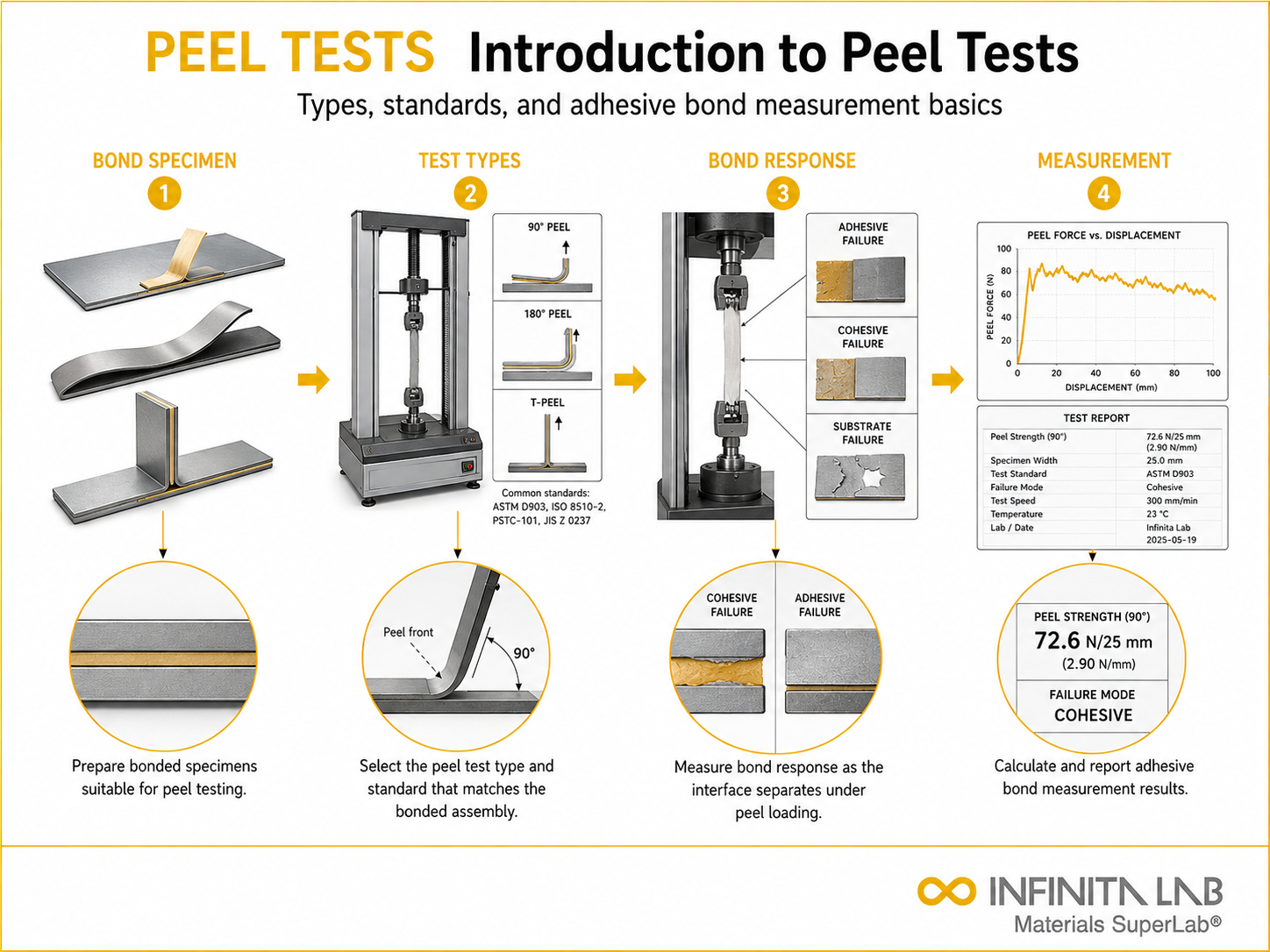

Types of Peel Tests
180-Degree Peel (ASTM D903 / PSTC-101)
The most common peel geometry — one arm is bent back directly over the bonded area at 180°. Widely used for pressure-sensitive adhesive (PSA) tapes, labels, protective films, and medical wound care products. The 180-degree geometry maximizes bending energy contribution, making results sensitive to both adhesion and substrate stiffness.
T-Peel (ASTM D1876)
Both bonded flexible substrates are bent back symmetrically during separation, forming a T-shape. This geometry minimizes peel angle sensitivity and is preferred for flexible-to-flexible laminates — multilayer packaging films, bonded textile composites, and laminated paper products.
90-Degree Peel (ASTM D6862 / ISO 8510-2)
The flexible substrate is peeled perpendicular to the rigid backing — minimizing bending energy and providing the most direct measure of pure adhesion energy. Preferred for scientific measurement of adhesion in electronics flex circuit and structural adhesive research applications.
Climb Drum Peel (ASTM D1781)
A drum peel fixture peels a flexible facing from a rigid honeycomb or foam core panel by winding the facing onto a rotating drum. This test is specific to sandwich composite structures in aerospace and marine applications.
Mandrel Peel (ASTM D3167 — Floating Roller)
A roller fixture maintains constant peel angle for rigid-to-flexible bonded systems — structural adhesive films, composite co-bonds, and metal-polymer laminates. Used in aerospace adhesive qualification per ASTM D3167 and ASTM D1876.
Key Measured Parameters
- Average peel force (N/mm or N/25mm): Statistical mean of the steady-state peel trace
- Peak peel force: Maximum recorded peel load — important for initial peel-off event characterization
- Failure mode: Adhesive, cohesive, or substrate failure, determined by visual inspection of both fracture surfaces
Conclusion
Peel testing is a fundamental method for evaluating the adhesion strength between bonded materials, providing critical insight into bond durability and performance. By using standardized methods and understanding different peel test types, manufacturers can ensure product reliability, optimize material selection, and maintain quality across various applications such as packaging, automotive, and electronics.
