Metal Hardness Testing: Rockwell vs Brinell vs Vickers — Comparison Guide
Hardness Testing Comparison: Rockwell, Brinell & VickersMetal hardness testing is one of the most commonly performed material characterization methods, providing rapid and reliable data for quality control, material identification, and process verification across the metals, automotive, aerospace, construction, and manufacturing industries. The three dominant test methods—Rockwell, Brinell, and Vickers—each offer distinct advantages depending on the material type, specimen size, and application requirements. For engineers seeking metal hardness testing at a US-based ASTM testing lab, Infinita Lab provides all major hardness testing methods through its accredited laboratory network.
Rockwell Hardness Testing (ASTM E18)

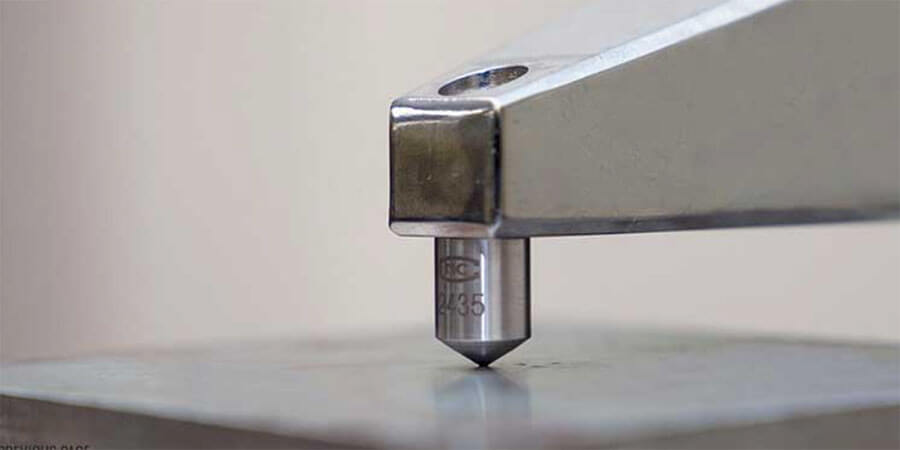

The Rockwell test measures the depth of indentation under a specific load using either a diamond cone (Brale) or a steel ball indenter. It is the fastest hardness test, delivering direct-reading results without optical measurement. Multiple scales (HRA, HRB, HRC) cover materials ranging from soft copper alloys to hardened tool steels, with HRC being the most common. Rockwell testing is the preferred method for production-floor quality control due to its speed and simplicity.
Brinell Hardness Testing (ASTM E10)
The Brinell test presses a hardened steel or tungsten carbide ball (typically 10 mm diameter) into the specimen under loads ranging from 500 to 3,000 kgf. The resulting indentation diameter is measured optically and converted to a Brinell Hardness Number (HBW). The large indentation averages out microstructural variations, making Brinell ideal for castings, forgings, and rough-surfaced materials in the metals and construction industries.
Vickers Hardness Testing (ASTM E92 / ASTM E384)
The Vickers test uses a diamond pyramid indenter at an angle of 136° under loads ranging from 1 gf to 120 kgf. The diagonal of the square indentation is measured optically. Vickers provides a continuous hardness scale applicable to all metals regardless of hardness, and microhardness testing (ASTM E384) enables evaluation of thin coatings, individual phases, heat-affected zones, and case-hardened layers.
Choosing the Right Test Method
Rockwell is best for rapid production testing and hardened steels. Brinell is preferred for castings, forgings, and materials with coarse or heterogeneous microstructures. Vickers offers the greatest versatility and is essential for microhardness testing, weld evaluations, and thin-coating applications in the automotive and aerospace sectors.
Why Choose Infinita Lab for Metal Hardness Testing?
At the core of this breadth is our network of 2,000+ accredited labs in the USA, offering access to over 10,000 test types. From advanced metrology (SEM, TEM, RBS, XPS) to mechanical, dielectric, environmental, and standardized ASTM/ISO testing, we give clients unmatched flexibility, specialization, and scale. You are not limited by geography, facility, or methodology—Infinita connects you to the right testing, every time.
Looking for a trusted partner to achieve your research goals? Schedule a meeting with us, send us a request, or call us at (888) 878-3090 to learn more about our services and how we can support you. Request a Quote
Frequently Asked Questions (FAQs)
What is the difference between Rockwell and Brinell hardness? Rockwell measures indentation depth (faster, direct reading), while Brinell measures indentation diameter (larger impression, better for heterogeneous materials). Rockwell is faster for production testing; Brinell provides more representative values for castings and forgings.
When should Vickers hardness testing be used? Vickers testing is used when a single scale covering all hardness ranges is needed, for microhardness evaluation of thin coatings, weld heat-affected zones, individual metallographic phases, or case-hardened layers.
What ASTM standards cover metal hardness testing? ASTM E18 covers Rockwell, ASTM E10 covers Brinell, ASTM E92 covers macro-Vickers, and ASTM E384 covers micro-Vickers and Knoop. Each standard defines indenter specifications, load requirements, and reporting criteria.
Can hardness values be converted between scales? ASTM E140 provides hardness conversion tables for specific material groups (steel, nickel alloys, etc.). Conversions are empirical approximations and may not be accurate for all materials or hardness ranges.
What is microhardness testing? Microhardness testing (ASTM E384) uses very low loads (1–1,000 gf) with Vickers or Knoop indenters to measure the hardness of individual microstructural features, thin coatings, surface treatments, and small or delicate specimens.
