The Role of Magnetic Particle Testing (MPT) in Aerospace Safety & Quality
What is Magnetic Particle Testing (MPT)?
Magnetic Particle Testing (MPT): A non-destructive testing (NDT) process for detecting surface and shallow subsurface discontinuities in ferromagnetic materials such as iron, nickel, and cobalt.
Magnetic Particle Testing (MPT or MT) is a non-destructive testing method that detects surface and near-surface discontinuities in ferromagnetic materials by applying magnetic flux and observing the accumulation of fine magnetic particles at flux leakage sites. MPT is one of the most reliable and cost-effective NDT methods for inspecting critical aerospace components—landing gear, engine components, structural fittings, and fasteners—where undetected surface cracks could have catastrophic consequences. For companies seeking magnetic particle testing at a US-based testing lab, Infinita Lab provides comprehensive NDT services through its accredited laboratory network.

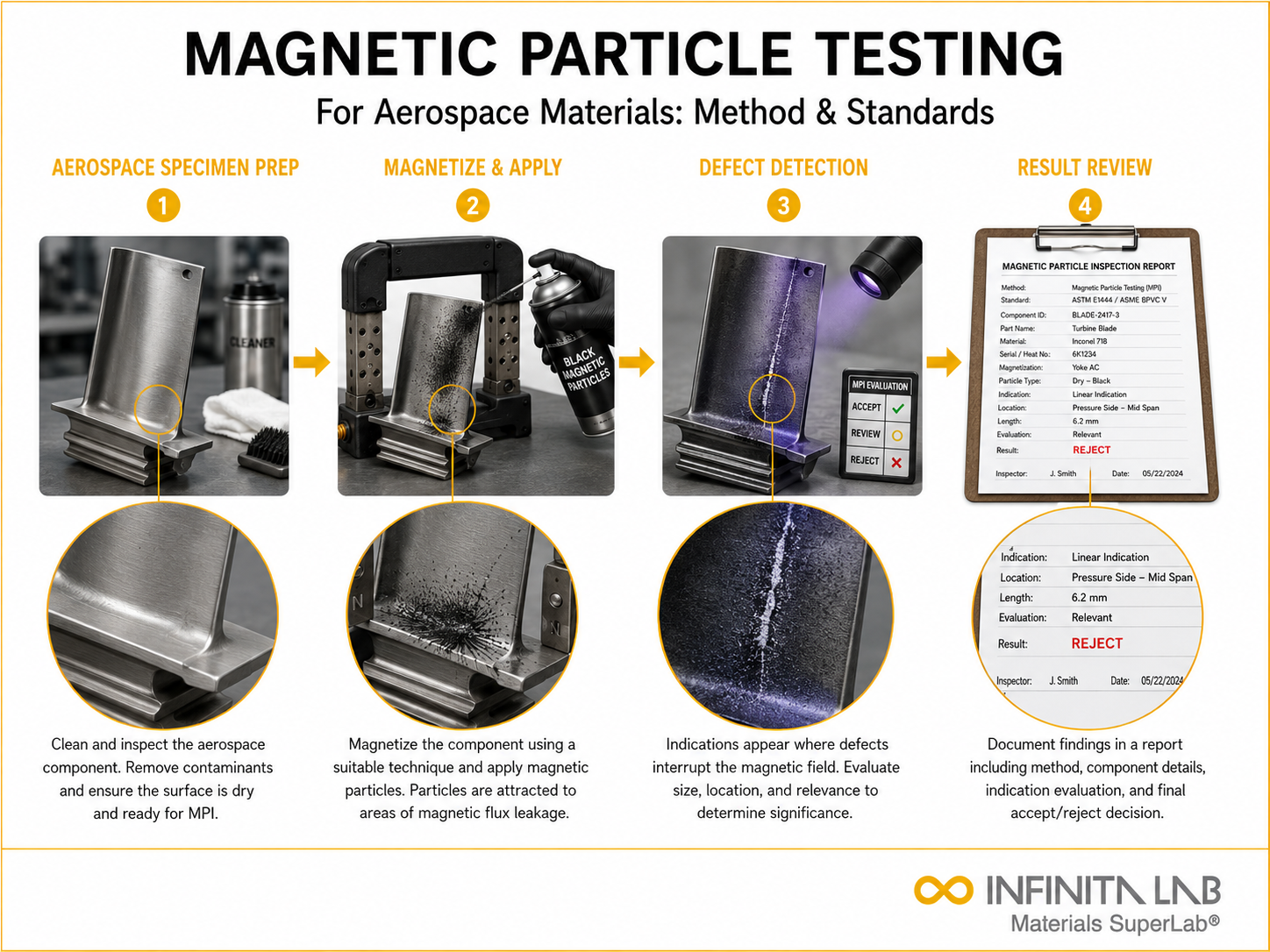

How Magnetic Particle Testing (MPT) Works?
A magnetic field is induced in the ferromagnetic test piece using electromagnetic yokes, coils, prods, or permanent magnets. Surface or near-surface discontinuities create local distortions (leakage fields) in the magnetic flux. Fine ferromagnetic particles (dry powder or wet fluorescent suspension) applied to the surface accumulate at leakage sites, forming visible indications that reveal crack location, orientation, and approximate size.
Magnetic Particle Testing (MPT) Methods Used in Aerospace
Fluorescent Wet Method
Fluorescent magnetic particles suspended in a liquid carrier are applied to the magnetized specimen and examined under UV-A (black light) illumination. The high contrast of fluorescent indications against the dark background provides maximum sensitivity—the standard method for critical aerospace inspections per ASTM E1444.
Continuous vs Residual Method
Continuous method applies particles while the magnetizing current flows (maximum sensitivity, required for most aerospace applications). The residual method applies particles after magnetization is removed (lower sensitivity, suitable only for high-retentivity materials).
Aerospace Standards
ASTM E1444 (standard practice for MPT), ASTM E709 (guide for MPT), Nadcap AC7114 (aerospace MPT accreditation), AMS 2641 (aerospace vehicle systems MPT), and prime contractor specifications (Boeing, Airbus, Pratt & Whitney) govern aerospace MPT inspection.
Infinita Lab: Your Material Testing Partner
Contact Infinita Lab for NDT Testing and enjoy major benefits like end-to-end testing management, faster turnaround, and reduced administrative burden. Gain confidence in accurate results and reduced stress in vendor coordination. Enhance your reputation for product reliability and innovation. Engineers and R&D managers can focus on core work rather than testing logistics.
Looking for a trusted partner to achieve your research goals? Schedule a meeting with us, send us a request, or call us at (888) 878-3090 to learn more about our services and how we can support you. Request a Quote
Frequently Asked Questions (FAQs)
What does magnetic particle testing detect? MPT detects surface and near-surface cracks, laps, seams, inclusions, and other discontinuities in ferromagnetic materials (steel, iron, nickel alloys). It is highly sensitive to tight, shallow surface cracks.
What ASTM standards cover MPT? ASTM E1444 (standard practice), ASTM E709 (general guide), ASTM E3024 (system performance verification), and ASTM E1949 (residual magnetic field measurement) are key MPT standards.
Can MPT be used on non-ferromagnetic materials? No, MPT only works on ferromagnetic materials (steel, iron, cobalt, nickel alloys). Aluminum, titanium, stainless steel (austenitic), and non-metallic materials require alternative methods like dye penetrant or eddy current testing.
What is Nadcap accreditation for MPT? Nadcap AC7114 is the aerospace industry accreditation program for MPT facilities, ensuring laboratories meet aerospace quality requirements for personnel qualification, equipment calibration, and process control.
Why is fluorescent MPT preferred for aerospace? Fluorescent particles under UV light provide maximum sensitivity and contrast for detecting fine cracks in safety-critical components. The enhanced visibility ensures that even very small discontinuities are reliably detected.
Can MPT be used on non-ferromagnetic materials? No. MPT requires the material to be magnetized. For non-magnetic materials like aluminum or titanium, Liquid Penetrant Testing (LPI) or Eddy Current Testing is used.
What is the difference between ASTM E1444 and ASTM E709? ASTM E1444 is the standard practice specifically required for aerospace applications, while ASTM E709 is the general technical guide for the MPT process.
