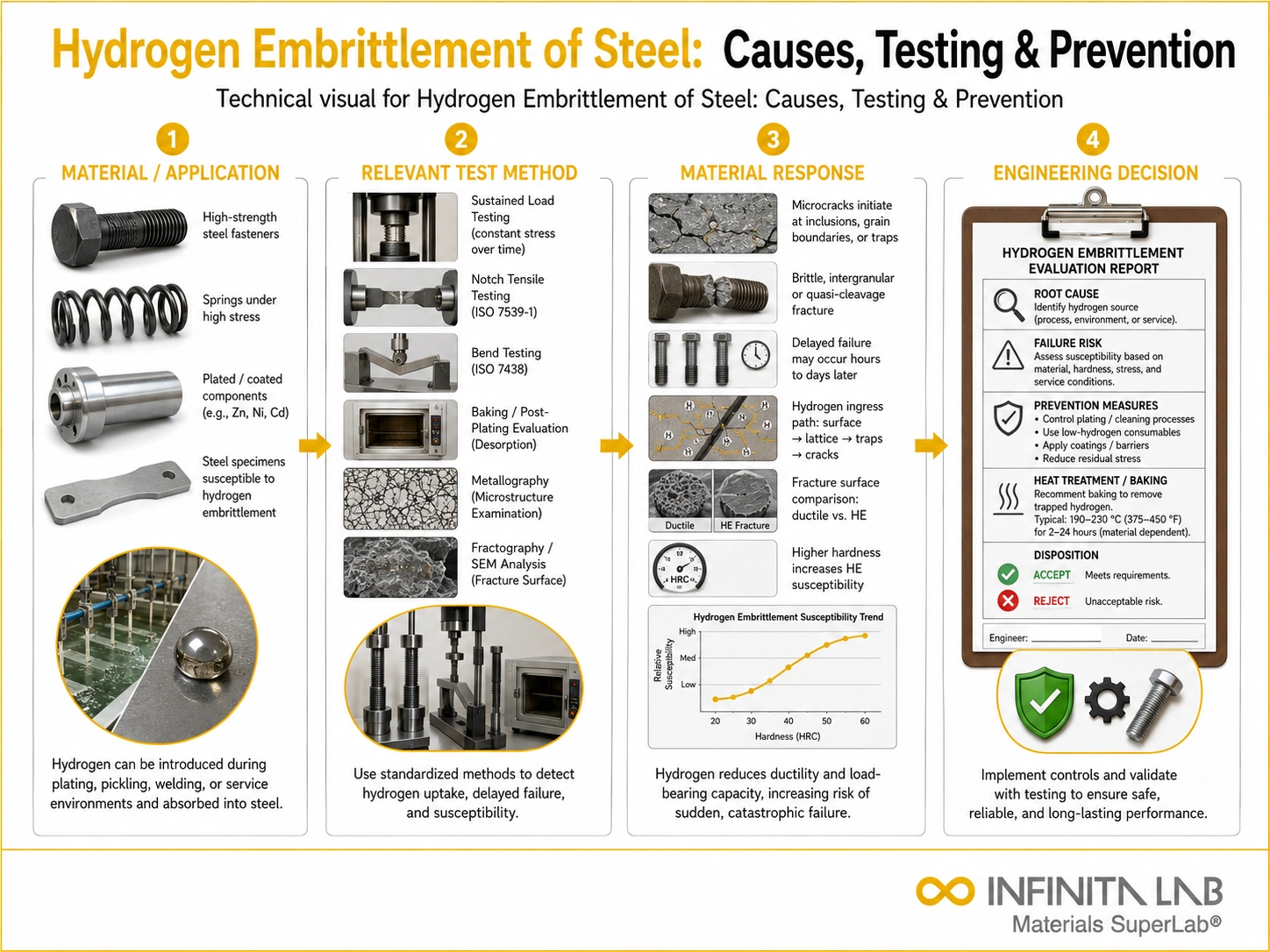

Hydrogen Embrittlement of Steel: Causes, Testing & Prevention
What Is Hydrogen Embrittlement?
Hydrogen embrittlement (HE) is a materials failure phenomenon in which steel loses ductility and fractures under stress after absorbing hydrogen atoms. It is one of the most challenging and dangerous forms of degradation in the metals industry, often causing sudden, catastrophic fractures with no visible warning signs. High-strength steels used in aerospace, automotive, oil and gas, and construction sectors are especially vulnerable.
Unlike corrosion, which visibly deteriorates a surface over time, hydrogen embrittlement can occur internally and without obvious deformation, making it particularly difficult to detect through conventional visual inspection.
How Does Hydrogen Enter Steel?
Hydrogen atoms are extremely small—small enough to diffuse through the crystal lattice of steel. Common sources of hydrogen ingress include:
- Electroplating and pickling processes — acidic pickling baths and electroplating operations release atomic hydrogen, which can be absorbed into the steel substrate.
- Welding — moisture in welding electrodes or base metals releases hydrogen during the arc process.
- Corrosion reactions — hydrogen is a byproduct of the cathodic reaction in corrosion cells.
- High-pressure hydrogen service — components in hydrogen fuel cells, pipelines, and reactors are continuously exposed to hydrogen gas.
Once inside the steel matrix, hydrogen accumulates at grain boundaries, dislocations, and voids. Under tensile stress, it weakens atomic bonds, facilitating crack initiation and propagation.
Types of Hydrogen Embrittlement
Internal Reversible Hydrogen Embrittlement
Occurs when hydrogen is absorbed during processing. This can often be reversed by baking the component at low temperatures (150–200°C) to drive off the hydrogen before it causes damage.
Hydrogen Environment Embrittlement
Occurs when steel operates in hydrogen-rich environments. The effect is active as long as hydrogen exposure continues.
Hydrogen-Stress Cracking
A delayed fracture mechanism where steel under sustained tensile stress eventually fails after a period of hydrogen exposure. This is common in high-strength bolts, springs, and structural fasteners.
Industries Most Affected
The aerospace, automotive, nuclear energy, oil and gas, and defence industries rely on high-strength steel components that are most susceptible to hydrogen embrittlement. In these sectors, even a small crack caused by HE can lead to component failure with severe safety and financial consequences.
Detection Methods for Hydrogen Embrittlement
Early detection is critical to preventing failure. Standard and advanced detection techniques include:
- Slow strain rate testing (SSRT) — measures ductility loss in hydrogen-charged specimens.
- Fracture mechanics testing — evaluates threshold stress intensity for crack initiation.
- Scanning Electron Microscopy (SEM) — identifies intergranular fracture patterns characteristic of HE.
- Hydrogen permeation testing — quantifies the rate of hydrogen diffusion through a steel membrane.
Prevention Strategies
Prevention is possible through careful material selection, process control, and surface protection:
- Use lower-strength steels where possible (HE risk increases with yield strength).
- Apply baking treatments after electroplating to degas hydrogen.
- Select cadmium-free or alternative coatings that minimise hydrogen uptake.
- Use vacuum or inert-atmosphere welding processes.
- Apply corrosion inhibitors and cathodic protection carefully to avoid overprotection.
Why Hydrogen Embrittlement Testing Matters
Regular hydrogen embrittlement testing per ASTM F519, ASTM F1624, and ASTM G142 is essential for quality assurance in high-stakes applications. These standardised tests help manufacturers verify that their components meet minimum ductility requirements before entering service.
Conclusion
Hydrogen embrittlement is a critical and often invisible failure mechanism that can cause sudden fracture in high-strength steels. Because it occurs internally without warning, prevention through proper material selection, controlled processing, and standardised testing is essential. Proactive management ensures component reliability, safety, and long-term performance in high-risk applications.
Why Choose Infinita Lab for Hydrogen Embrittlement Testing?
Infinita Lab is a leading provider of hydrogen embrittlement testing and streamlined material testing services, addressing the critical challenges faced by emerging businesses and established enterprises. With access to a vast network of over 2,000+ accredited partner labs across the United States, Infinita Lab ensures rapid, accurate, and cost-effective testing solutions. The company’s unique value proposition includes comprehensive project management, confidentiality assurance, and seamless communication through a Single Point of Contact (SPOC) model.
Looking for a trusted partner to achieve your research goals? Schedule a meeting with us, send us a request, or call us at (888) 878-3090 to learn more about our services and how we can support you. Request a Quote
Frequently Asked Questions (FAQs)
What steel grades are most susceptible to hydrogen embrittlement? High-strength steels with tensile strengths above 1,000 MPa (approximately 150 ksi) are most at risk. Martensitic and precipitation-hardened grades are especially vulnerable.
Can hydrogen embrittlement be reversed? In cases of internal reversible HE, low-temperature baking (150–200°C for 4–24 hours) can effectively degas the absorbed hydrogen and restore ductility, provided cracking has not yet initiated.
What is the difference between hydrogen embrittlement and stress corrosion cracking? Both involve cracking under stress in a corrosive environment, but HE is specifically driven by absorbed hydrogen atoms weakening atomic bonds, whereas stress corrosion cracking involves active anodic dissolution at the crack tip.
Which ASTM standards apply to hydrogen embrittlement testing? Key standards include ASTM F519 (mechanical hydrogen embrittlement), ASTM F1624 (incremental step load testing), and ASTM G142 (testing in high-pressure hydrogen).
How long does a hydrogen embrittlement test take? Testing duration varies. Slow strain rate tests typically run for several hours to days. Delayed fracture tests (sustained load tests) may run for 200 hours or more depending on the specification.
