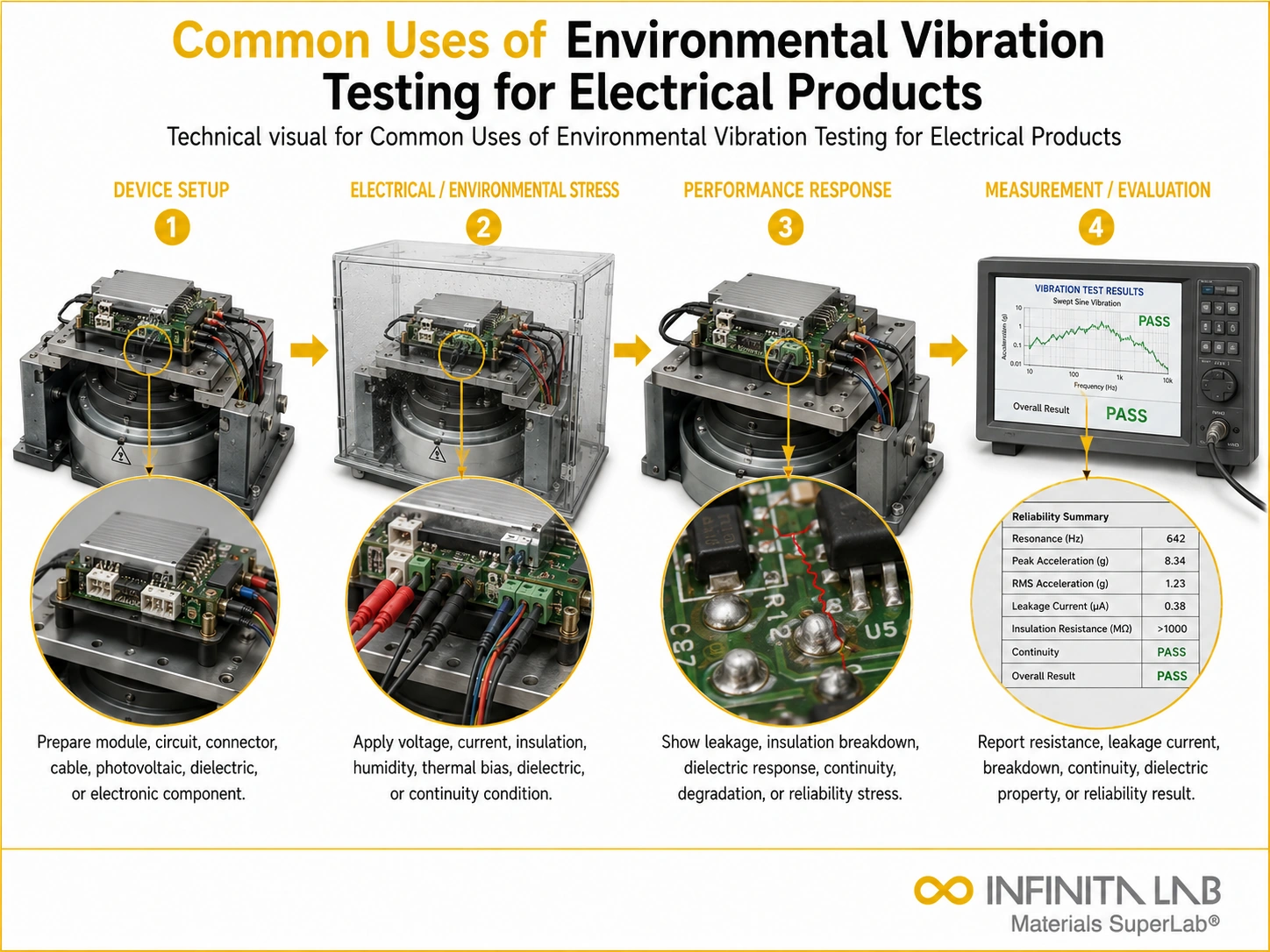

Common Uses of Environmental Vibration Testing for Electrical Products
Every product that moves — or exists in an environment that moves — is subject to vibration. Aircraft avionics experience continuous broadband vibration from jet engines and aerodynamic turbulence. Automotive electronics endure road-induced vibration for the vehicle’s lifetime. Portable electronics are dropped, shaken, and transported in vibrating vehicles daily. Industrial machinery generates vibration that propagates to attached instruments, controls, and structural supports. Environmental vibration testing quantifies a product’s ability to survive and function reliably under these dynamic conditions — making it one of the most widely applied environmental qualification tests in the electronics & aerospace industry.
What Is Environmental Vibration Testing?
Environmental vibration testing subjects products, components, or assemblies to controlled mechanical oscillations that simulate real-world vibration environments. Testing serves two primary purposes:
Structural qualification — verifying that the product will not fail mechanically (fracture, loosen, wear) during its service life vibration exposure.
Functional qualification — verifying that the product continues to operate correctly during and after vibration exposure — no intermittent connections, no parameter drift, no software errors triggered by mechanical disturbance.
Types of Vibration Tests
Sinusoidal Vibration — IEC 60068-2-6, MIL-STD-810H Method 514.8
Sinusoidal vibration sweeps a single-frequency oscillation progressively across a defined frequency range at controlled amplitude. Sinusoidal testing:
- Identifies resonant frequencies of the product’s structure and sub-assemblies
- Evaluates fatigue life at specific resonant frequencies (fixed-frequency dwell testing)
- Simulates rotating machinery vibration (engines, compressors, fans)
- Is used for product screening during development before switching to more representative random vibration
The resonance search sweep — typically 10–2,000 Hz at 1 oct/min — maps the product’s frequency response and identifies modes requiring damping or structural reinforcement.
Random Vibration — MIL-STD-810H, IEC 60068-2-64, ASTM D4728
Random vibration simultaneously excites all frequencies within a defined spectral band — more accurately representing road vehicle, aircraft, and shipping vibration environments than single-frequency sinusoidal tests. Random vibration is characterized by a Power Spectral Density (PSD) profile specifying acceleration spectral density (g²/Hz) versus frequency.
Key random vibration test standards:
- MIL-STD-810H Method 514.8 — US defense equipment vibration qualification
- IEC 60068-2-64 — International standard for random vibration testing
- ASTM D4728 — Random vibration testing of shipping containers
- ISO 16750-3 — Road vehicle electronic equipment vibration testing
Shock and Bump Testing
While technically distinct from vibration, shock testing (MIL-STD-810H Method 516.8, IEC 60068-2-27) evaluates product response to transient mechanical impulses — drop events, pyrotechnic shock, rough handling. Shock response spectra (SRS) characterize the shock severity in the frequency domain and are used to design shock-resistant mounting systems.
HALT Vibration
Highly Accelerated Life Testing (HALT) uses pneumatic vibration at severity levels far exceeding field environments to rapidly precipitate design weaknesses. HALT vibration applies omnidirectional broadband random vibration — typically achieved with pneumatic repetitive shock tables — at progressively increasing g-levels until product operational or destructive limits are identified. This approach finds vibration design weaknesses in days rather than months.
Key Applications of Vibration Testing
Aerospace and Defense
Aerospace electronics — avionics, flight control computers, radar systems, satellite components — must withstand the full vibration environment from pre-launch ground transportation through service life. MIL-STD-810H and MIL-STD-202 provide the framework for defense electronics vibration qualification. ECSS-E-ST-10-03C governs spacecraft vibration testing per European Space Agency standards.
Random vibration PSD profiles for jet aircraft (Category 1 MIL-STD-810H) specify severe broadband excitation from 10 Hz to 2,000 Hz — reflecting the complex engine, aerodynamic, and structural vibration environments of fixed-wing and rotary aircraft.
Automotive Electronics
Automotive electronics — ECUs, sensors, displays, connectors — must survive decades of vehicle lifetime vibration exposure per ISO 16750-3 and OEM-specific standards (GM 9100P, Volkswagen VW80000, Ford ES-XW7T-1A278-AA). Tests are derived from measured road-load data from vehicle proving grounds — representing everything from smooth highway driving to severe off-road washboard surfaces.
Temperature and vibration are combined for automotive electronics (as discussed in Blog 37) because thermal cycling during engine heat-soak and cold start combines with road vibration to produce failure modes absent in either environment alone.
Consumer Electronics and Portable Devices
Consumer electronics undergo ISTA (International Safe Transit Association) vibration testing per ISTA 2A/3A to verify survival during distribution — truck, rail, and air transport vibration environments. Drop testing and random vibration in combination simulate the hazards of retail distribution and consumer handling.
Wearable electronics and handheld devices are additionally evaluated for vibration endurance representing active user environments — walking, running, and tool-use vibration — using IEC 60068-2-64 random vibration and IEC 60068-2-27 shock protocols.
Industrial Equipment
Industrial instruments, transmitters, valves, and process control equipment installed on or near rotating machinery must withstand continuous broadband vibration for operational lifetimes of 10–20 years. IEC 60068-2-6 sinusoidal vibration testing at specific frequencies representing pump, compressor, and motor vibration environments qualifies industrial equipment for these demanding installations in the electronics & aerospace industry.
Environmental vibration testing is an essential qualification and reliability tool that validates product performance under the dynamic mechanical stresses encountered throughout manufacture, transport, installation, and service life. From aerospace structures and military electronics to automotive components, medical devices, and consumer products, vibration testing identifies design weaknesses, validates analytical models, and confirms specification compliance before field deployment. Governed by MIL-STD-810, IEC 60068-2, ASTM D4169, and application-specific standards, it provides the mechanical durability data needed to reduce field failures, support regulatory approvals, and deliver products that perform reliably across the full spectrum of real-world dynamic environments.
Why Choose Infinita Lab for Vibration testing?
Infinita Lab provides comprehensive environmental vibration testing — including sinusoidal sweep (IEC 60068-2-6, MIL-STD-810H), random vibration (IEC 60068-2-64, ASTM D4728), shock testing (IEC 60068-2-27), HALT vibration, and combined temperature-vibration testing — serving the electronics & aerospace industry with product qualification, shipping package validation, and failure investigation programs. Our vibration testing laboratory combines multi-axis electrodynamic shakers with real-time functional monitoring capability to deliver comprehensive qualification data. Contact Infinita Lab at infinitalab.com to discuss your vibration testing program
Frequently Asked Questions
What is environmental vibration testing and why is it performed? Environmental vibration testing subjects products to controlled mechanical vibration inputs simulating real-world dynamic environments encountered during transport, operation, or installation, verifying structural integrity, identifying resonant frequencies, and confirming that products meet specified mechanical durability requirements.
How does random vibration testing differ from sinusoidal vibration testing? Random vibration simultaneously excites all frequencies within a defined spectrum, better representing real-world broadband dynamic environments. Sinusoidal testing applies single-frequency excitation swept across a range, making it more useful for resonance characterization and comparison with analytical modal predictions.
How are vibration test profiles developed for environmental testing programs? Profiles are derived from field measurements using accelerometers mounted on representative platforms, analytical models, or standard-defined default profiles. Field-measured data provides the most accurate simulation of actual service environments for critical or performance-sensitive product qualification programs.
How is vibration testing integrated with thermal and humidity testing? Combined environment testing applies vibration simultaneously with temperature and humidity cycling, revealing synergistic failure mechanisms not detectable by sequential testing. This approach better represents real operational environments for electronics, defense systems, and aerospace equipment requiring comprehensive environmental qualification.
What failure modes are typically revealed through environmental vibration testing? Solder joint fatigue, connector fretting, structural resonance-induced fracture, fastener loosening, PCB component lead cracking, potting material delamination, and bearing wear are common failure modes identified during vibration testing that would otherwise manifest as field failures during product service life.
