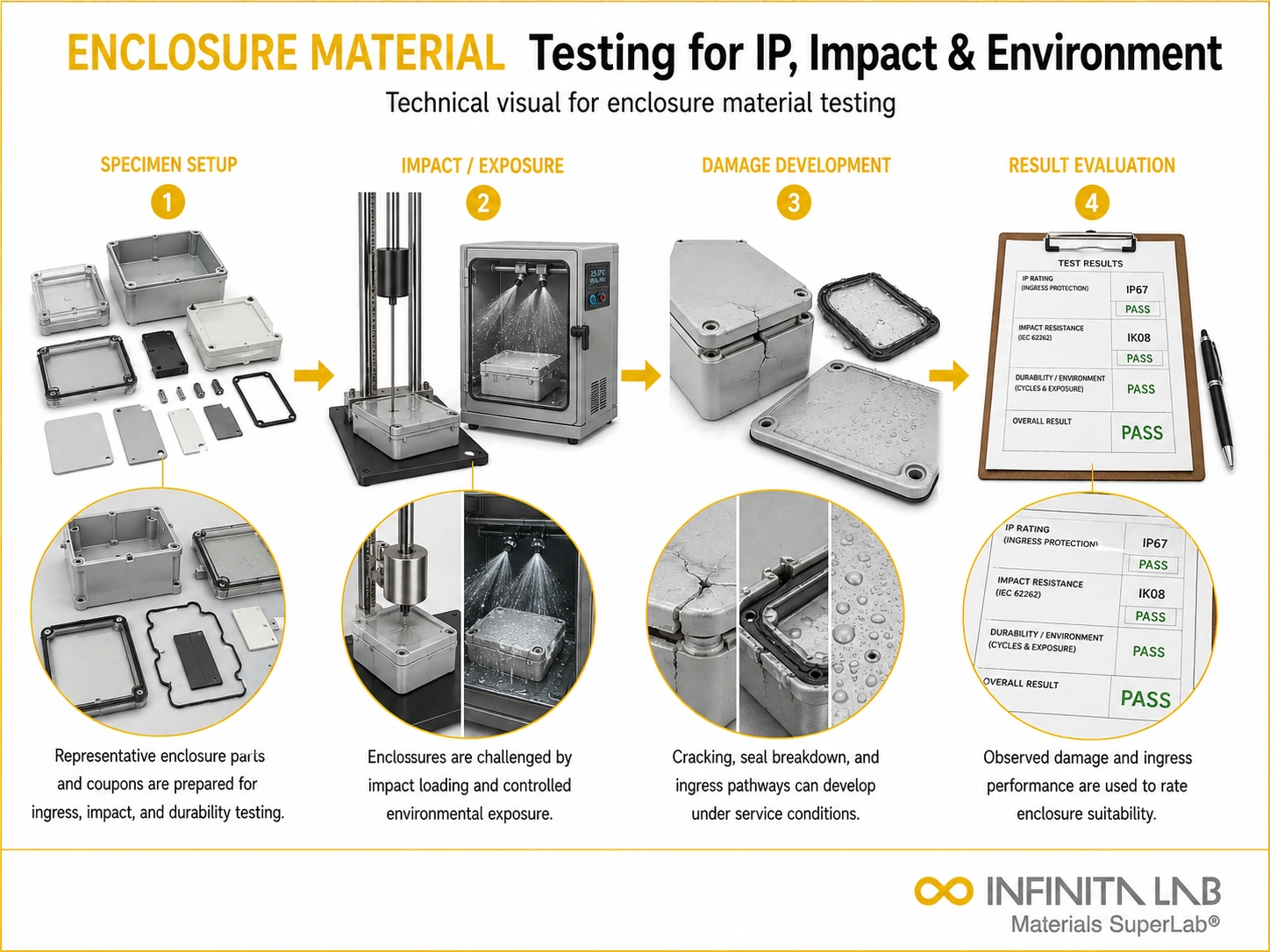

Enclosure Material Testing: IP Rating, Impact Resistance & Environmental Testing
Aerospace corrosion testing per MIL-STD-810 evaluating alloy and coating protection performanceWhat Are Enclosures in the Context of Material Testing?
Enclosures — housings, cabinets, shells, and cases that protect electrical and electronic equipment, instruments, sensors, and mechanical devices — serve a fundamental engineering function: excluding environmental contaminants (dust, water, chemicals, gases) from internal components while providing structural protection, EMI shielding, and thermal management. The materials, sealing methods, and gasket systems used in enclosure design directly determine the enclosure’s protective performance over its intended service life.
Material testing of enclosures and their constituent materials confirms that they meet the protective performance standards required by the application — from IP-rated outdoor electronics to explosion-proof enclosures in hazardous areas, stainless steel food-processing equipment to polycarbonate instrument housings.
Ingress Protection (IP) Rating System — IEC 60529
The international standard for enclosure protection is IEC 60529 — the Ingress Protection (IP) code system. An IP rating consists of two digits:
First digit (0–6): Solid particle protection — from no protection (0) through dust-tight (6) Second digit (0–8+): Liquid ingress protection — from no protection (0) through continuous submersion beyond 1 meter (8)
Common IP ratings and their test requirements:
IP Rating | Protection Level | Test Conditions |
IP54 | Dust-limited splashing water | Dust chamber (8h); water spray from any direction |
IP65 | Dust-tight; water jets | Dust chamber (8h); 6.3 mm nozzle, 12.5 L/min, 3 min |
IP66 | Dust-tight; powerful water jets | Dust chamber (8h); 12.5 mm nozzle, 100 L/min, 3 min |
IP67 | Dust-tight; immersion 1m/30 min | Dust chamber (8h); submerged 1m, 30 min |
IP68 | Dust-tight; continuous immersion | Dust chamber (8h); manufacturer-specified depth/duration |
IP69K | Dust-tight; high-pressure steam | Dust chamber (8h); 80°C water, 8–10 MPa, 150 bar |
Key Enclosure Testing Methods
Dust Ingress Testing (IEC 60529 First Digit)
Specimens are placed in a dust test chamber containing fine talcum powder (IP5X) or fine dust (IP6X) maintained in suspension by circulating air. After defined exposure (8 hours for IP5X; 8 hours for IP6X), the enclosure interior is inspected for dust entry. IP5X allows limited dust entry that doesn’t interfere with satisfactory operation; IP6X allows no dust entry.
Water Ingress Testing (IEC 60529 Second Digit)
Testing methods escalate with rating level:
- IPX4 (Splashing): Water sprayed from any direction using an oscillating tube fixture
- IPX5/IPX6 (Water jets): Calibrated nozzles delivering defined flow rates directed from all angles
- IPX7 (Immersion): Specimen submerged at defined depth for 30 minutes
- IPX8 (Continuous submersion): Manufacturer-specified conditions typically exceeding IPX7
After water exposure, the enclosure interior is inspected for water entry — evaluated against application-specific criteria (no entry for electronics; limited entry acceptable for some mechanical applications).
IP69K Testing (High-Pressure Steam)
Used for food processing, dairy, pharmaceutical, and industrial washdown applications where high-pressure, high-temperature cleaning is routine. Specimens are exposed to a rotating spray nozzle delivering hot water (minimum 80°C) at high pressure (80–100 bar) from defined distances and angles.
NEMA Enclosure Ratings (North American System)
NEMA (National Electrical Manufacturers Association) ratings — widely used in North America — provide similar but not identical protection classifications to IP ratings, with additional requirements, including corrosion resistance, gasket durability, and external icing protection, that are not addressed by IEC 60529.
Materials Used in Enclosures and Their Testing
Metals
Stainless Steel (304, 316L): Dominant material for food processing, pharmaceutical, and harsh industrial enclosures — tested for corrosion resistance (ASTM B117 salt spray, ASTM G48 crevice corrosion), surface finish (Ra measurement), and weld integrity (visual and dye penetrant inspection).
Aluminum Alloys: Lightweight enclosures for electronics, aerospace, and automotive — anodized or powder-coated for corrosion protection. Tested per ASTM B117, dimensional inspection, and coating adhesion (ASTM D4541).
Carbon Steel with Coating: Lower-cost option for non-corrosive environments — painted or epoxy-coated steel enclosures tested for coating adhesion, impact resistance (ASTM D2794), and salt spray corrosion per ASTM B117.
Polymers and Composites
Polycarbonate (PC) and PC/ABS Blends: The most widely used polymer for electrical enclosures — offering optical clarity, toughness, flame retardancy (UL 94 V-0 or V-2 ratings), and dimensional stability. Tested for UV resistance (ASTM G154), impact resistance (ASTM D256), flammability (UL 94), and dimensional stability.
Fiberglass-Reinforced Polyester (GRP/FRP): Used for heavy industrial, chemical plant, and outdoor utility enclosures — tested for UV resistance, chemical resistance (ASTM D543), and impact resistance (ASTM D256 or D7136).
Thermoplastic Polyester (PBT, PET): Used for connector housings, automotive ECU enclosures, and electrical junction boxes — tested for dimensional stability (ASTM D1204), HDT (ASTM D648), and chemical resistance.
Gasket and Seal Materials
Enclosure sealing gaskets are critical to IP performance — and their long-term reliability depends on correct elastomer selection and testing:
- Neoprene (CR): General-purpose — moderate chemical and UV resistance
- EPDM: Excellent UV, ozone, and weathering resistance — preferred for outdoor enclosures
- Silicone: Wide temperature range (-60°C to +200°C), clean room compatible
- FKM (Viton®): Aggressive chemical resistance for industrial and chemical plant enclosures
Gasket testing covers compression set (ASTM D395), chemical resistance (ASTM D471), UV aging (ASTM G154), and thermal aging (ASTM D573).
Industry Applications
Electronics and Instrumentation: IP65–IP67 rated polycarbonate and die-cast aluminum enclosures for outdoor sensors, process instrumentation, junction boxes, and industrial control panels.
Telecommunications: IP67/IP68-rated composite and aluminum enclosures for outdoor fiber termination, antenna base stations, and underground splice closures.
Automotive: IP67/IP68 rated plastic and die-cast aluminum ECU housings, connectors, and sensor enclosures protecting electronics from road splash, immersion, and pressure wash.
Washdown Environments: IP69 K-rated stainless steel and polycarbonate enclosures for food processing, pharmaceutical manufacturing, and car wash equipment.
Hazardous Areas: ATEX/IECEx certified explosion-proof (Ex d) and increased safety (Ex e) enclosures for oil and gas, mining, and chemical plant applications — tested per IEC 60079-0/1/7.
Conclusion
Enclosure testing — spanning IP ingress protection, NEMA rating validation, corrosion resistance, UV weathering, gasket material characterization, and flammability testing across metals, polymers, composites, and elastomeric seal systems per IEC, ASTM, and NEMA standardized protocols — provides the protective performance validation essential for electronics, instrumentation, automotive, telecommunications, and washdown applications. Selecting the right enclosure material, sealing system, and IP or NEMA rating for the specific environmental exposure and regulatory framework is what determines whether a housing reliably protects its contents over its intended service life — making comprehensive enclosure qualification testing as critical to product reliability as any internal component design.
Why Choose Infinita Lab for Enclosure Testing?
Infinita Lab offers comprehensive enclosure testing services — IP ingress protection testing (IEC 60529), NEMA testing, salt-spray corrosion testing, UV weathering testing, gasket material testing, and flammability testing — across its network of 2,000+ accredited labs in the USA. Our advanced equipment and expert team deliver highly accurate and prompt results for enclosure qualification and product certification programs.
Looking for a trusted partner to achieve your research goals? Schedule a meeting with us, send us a request, or call us at (888) 878-3090 to learn more about our services and how we can support you. Request a Quote.
Frequently Asked Questions
What is the difference between IP67 and IP68 ratings? IP67 requires the enclosure to withstand submersion at 1 meter depth for 30 minutes without water entry. IP68 indicates continuous submersion protection beyond IP67 requirements — the specific depth and duration are defined by the manufacturer and must be stated alongside the IP68 rating. IP68 devices may be rated for 1.5m, 3m, or deeper submersion for extended periods.
Is an IP69K rating better than IP68? IP69K addresses high-pressure, high-temperature steam cleaning resistance — not deep submersion. An IP68-rated enclosure may not pass IP69K testing (and vice versa) because they test different exposure conditions. For washdown applications, IP69K is the relevant rating; for immersion resistance, IP68 is appropriate. Many industrial enclosures carry both ratings.
What materials should be used for outdoor enclosures requiring UV resistance? EPDM gaskets (superior UV/ozone resistance), UV-stabilized polycarbonate or GRP/FRP housing materials, and powder-coated or anodized metal are the best choices for long-term outdoor UV resistance. Standard ABS and unexplained PC grade without UV stabilizers degrade rapidly in sunlight exposure.
What is the difference between IP rating and NEMA rating? IP ratings (IEC 60529) classify enclosures by solid particle and water ingress resistance based on specific standardized tests. NEMA ratings (NEMA 250) are similar in concept but include additional requirements including corrosion resistance, external icing, gasket durability, and oil-tight performance not addressed by IP ratings. IP and NEMA ratings are not directly interchangeable.
What ASTM standards apply to enclosure gasket material testing? Key standards include ASTM D395 (compression set), ASTM D471 (fluid immersion), ASTM D573 (heat aging), ASTM D412 (tensile properties), ASTM D2240 (Shore hardness), and ASTM G154 (UV weathering) — together providing a comprehensive gasket material qualification dataset.
