Common Mechanical Failures in Materials: Identification, Root Cause Analysis, and Prevention

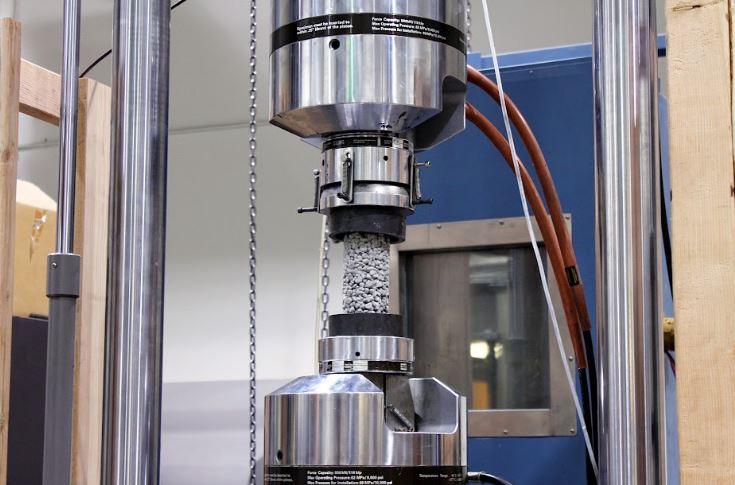

Example of mechanical failure analysis used in professional materials testing servicesMechanical failures — the loss of a material’s ability to perform its intended function under applied loads — are among the most costly and potentially dangerous events in engineering and manufacturing. Understanding the common failure modes, how to identify them, and what laboratory investigations reveal about their root causes is fundamental to designing more reliable products and preventing recurrence. In the engineering & manufacturing industry, systematic failure analysis supported by rigorous materials testing is the definitive path from failure to understanding to improvement.
Why Mechanical Failures Occur
Mechanical failures rarely arise from a single isolated cause. They typically result from the convergence of:
- Material factors — incorrect alloy, deficient heat treatment, insufficient toughness, pre-existing defects
- Design factors — stress concentrations, insufficient section size, inadequate fatigue life in the design calculation
- Manufacturing factors — surface damage, residual stresses from machining, welding defects
- Service factors — overloading, unexpected loading directions, corrosive environments, elevated temperatures
- Maintenance factors — inadequate lubrication, improper assembly, repair-induced damage
Understanding which factor or combination drove the failure is the central objective of failure analysis — and the answer determines which corrective action will be effective.
The Most Common Mechanical Failure Modes
1. Fatigue Fracture
Fatigue is the most prevalent failure mechanism in engineering components — responsible for an estimated 50–90% of all mechanical failures in practice. Fatigue occurs when cyclic stresses — even at levels far below the material’s static yield strength — progressively damage the material through crack initiation and propagation until catastrophic final fracture.
Identification: Fatigue fractures show characteristic macroscopic features: a smooth crack propagation zone (often with beach marks — curved lines radiating from the initiation site), a rough final fracture zone (representing rapid overload fracture of the remaining cross-section), and one or more initiation sites at stress concentrations (keyways, holes, surface scratches, corrosion pits).
Laboratory investigation: SEM fractography reveals fatigue striations — parallel lines representing incremental crack advance per load cycle — confirming the fatigue mechanism. Hardness testing and microstructural examination identify contributing material factors.
Prevention: Improving surface finish (reducing initiation sites), shot peening (inducing compressive residual stresses at the surface), reducing stress concentrations in design, and selecting materials with higher fatigue strength.
2. Ductile Overload Fracture
Ductile overload fracture occurs when applied stress exceeds the material’s ultimate tensile strength — causing progressive plastic deformation followed by fracture. Unlike fatigue, ductile fracture occurs in a single load application rather than over many cycles.
Identification: Ductile fractures show macroscopic features: necking (reduction in cross-sectional area), a cup-and-cone fracture morphology, shear lips at 45° to the loading direction, and a fibrous, gray appearance. The entire fracture surface shows evidence of plastic deformation.
Laboratory investigation: Tensile testing of material samples verifies whether the material met specified strength and ductility requirements. Hardness testing and chemical analysis confirm material identity and heat treatment adequacy.
Prevention: Verifying that design loads do not exceed material capacity with adequate safety factors; using appropriate safety factors for dynamic and impact loading; material verification through incoming inspection.
3. Brittle Fracture
Brittle fracture occurs with little or no prior plastic deformation — typically at stresses below the yield strength — and propagates rapidly once initiated. It is particularly dangerous because it provides no warning through visible deformation before catastrophic failure.
Identification: Brittle fractures show a flat, granular fracture surface perpendicular to the maximum tensile stress, with crystalline or cleavage facets visible under SEM. No necking or shear lips are present. Chevron or herringbone patterns point back toward the fracture initiation site.
Contributing factors: Low temperatures (below the ductile-to-brittle transition temperature), high strain rates (impact loading), hydrogen embrittlement, stress corrosion cracking, excessive hardness from improper heat treatment, and large pre-existing defects.
Laboratory investigation: Charpy impact testing at service temperature verifies toughness adequacy. Hydrogen analysis (ASTM E1447) detects embrittlement. Microstructural examination identifies abnormal phases or grain boundary conditions.
4. Creep and Stress Rupture
Creep is the time-dependent plastic deformation of materials under sustained stress at elevated temperatures — typically above 0.4 × absolute melting temperature. In the engineering & manufacturing industry, creep is the life-limiting failure mechanism for turbine blades, furnace components, pressure vessel bolts, and high-temperature piping.
Identification: Creep-failed components show elongation and section reduction, intergranular cracking (creep damage accumulates at grain boundaries), and cavitation (microscopic voids) at grain boundary triple points in the microstructure.
Laboratory investigation: Creep testing at representative stress and temperature confirms material creep resistance. Microstructural examination of failed material identifies grain boundary oxidation, carbide coarsening, or phase decomposition that accelerated creep.
5. Wear
Wear is the progressive loss of material from surfaces in contact — governing the service life of bearings, gears, cams, cutting tools, and any other sliding or rolling contact components. Primary wear mechanisms include adhesive wear, abrasive wear, erosive wear, and fretting wear.
Identification: Worn surfaces show material loss, scoring, surface smearing, pitting, or spalling depending on the wear mechanism. Dimensional measurements quantify material loss; surface profilometry characterizes wear track morphology.
Laboratory investigation: SEM examination of worn surfaces identifies wear mechanism from characteristic surface textures. Hardness testing of worn and unworn sections quantifies work hardening effects. Elemental analysis of wear debris identifies transferred material.
Understanding and identifying common mechanical failures in materials is fundamental to engineering integrity, product reliability, and safety assurance across all industries where structural and mechanical components are subjected to service loads. Through systematic failure analysis combining visual examination, fractography, mechanical testing, and microstructural characterization, engineers can determine root causes ranging from design deficiencies and material defects to manufacturing flaws and improper service conditions. Guided by standards from ASTM, ASM International, and ISO, a rigorous failure analysis methodology not only resolves immediate failure events but generates actionable data for design improvement, material reselection, and process correction, ultimately reducing the likelihood of recurrence and strengthening long-term component reliability.
Why Choose Infinita Lab for comprehensive mechanical failure investigation?
Infinita Lab’s failure analysis laboratory provides comprehensive mechanical failure investigation — including SEM fractography, metallographic examination, hardness testing, tensile and Charpy impact testing, chemical composition verification, and root cause reporting — serving the engineering & manufacturing industry with the analytical evidence needed to understand failures, support litigation, and implement effective corrective actions. Our mechanical failure analysis engineers combine metallurgical expertise with state-of-the-art analytical instrumentation to deliver definitive, defensible failure investigation reports. Contact Infinita Lab at infinitalab.com to submit failed components for expert mechanical failure analysis.
Frequently Asked Questions
What are the most common types of mechanical failure in engineering materials? Fatigue, fracture, corrosion, wear, creep, overload, and stress corrosion cracking are the most frequently encountered mechanical failure modes. Each produces characteristic damage patterns that can be identified through systematic visual and laboratory-based failure analysis techniques.
What is fatigue failure and how is it identified? Fatigue failure results from cyclic loading below the material's ultimate strength, producing progressive crack initiation and propagation. It is identified by beach marks or striations on fracture surfaces, typically originating from stress concentrations such as notches or surface defects.
How is wear failure classified in engineering components? Wear is classified as adhesive, abrasive, erosive, fretting, or fatigue wear depending on the contact mechanism. Each type produces characteristic surface damage patterns and debris morphology that can be identified through surface analysis and microscopic examination techniques.
What is hydrogen embrittlement and how does it cause mechanical failure? Hydrogen embrittlement occurs when atomic hydrogen diffuses into a metal, reducing ductility and fracture toughness. It causes unexpected brittle fracture in high-strength steels and is associated with electroplating, welding, cathodic protection, and hydrogen-rich service environments.
What is the role of fractography in mechanical failure analysis? Fractography involves systematic examination of fracture surfaces using optical and electron microscopy to identify failure mode, crack origin, propagation direction, and loading conditions. It is the primary diagnostic tool for distinguishing fatigue, overload, brittle fracture, and environmental cracking failures.
