Ceramic Sensors Testing: Performance Evaluation & Key Standards
Ceramic Sensors in Aerospace | Performance, Materials, and Testing StandardsCeramic sensors have emerged as critical components in the aerospace industry, enabling precise measurement of temperature, pressure, acceleration, and chemical species in extreme operating environments where conventional sensor materials fail. The inherent properties of advanced ceramics—including exceptional thermal stability, chemical inertness, high hardness, and resistance to oxidation—make them uniquely suited for aerospace applications ranging from turbine engine monitoring to structural health sensing. For aerospace manufacturers and R&D teams seeking ceramic sensor testing at a US-based materials testing lab, Infinita Lab provides comprehensive ceramic and sensor characterization services through its accredited laboratory network.
Why Ceramics for Aerospace Sensors?
Aerospace environments impose extreme demands on sensor materials: temperatures exceeding 1,000°C in turbine hot sections, corrosive combustion gases, high mechanical vibration, and rapid thermal cycling. Advanced ceramics such as aluminum oxide (alumina), zirconium oxide (zirconia), silicon carbide (SiC), and piezoelectric ceramics (PZT, lead zirconate titanate) withstand these conditions far better than metals or polymers, providing reliable sensing capability throughout extended service life.
Types of Ceramic Sensors in Aerospace
Temperature Sensors
Ceramic-based thermocouples, resistance temperature detectors (RTDs), and thermistors measure temperatures in turbine engines, exhaust systems, and thermal protection systems. Alumina and zirconia substrates provide electrical insulation and structural integrity at temperatures where metallic housings would fail.
Pressure Sensors
Ceramic capacitive and piezoresistive pressure sensors monitor combustion-chamber pressure, hydraulic-system pressure, and altitude-related atmospheric-pressure changes. Their chemical inertness prevents degradation from jet fuel, hydraulic fluids, and combustion byproducts.
Accelerometers and Vibration Sensors
Piezoelectric ceramic elements (PZT, lead metaniobate) convert mechanical vibration into electrical signals for structural health monitoring of airframes, rotor systems, and landing gear. These sensors detect fatigue cracking, loose fasteners, and bearing deterioration during flight.
Gas and Chemical Sensors
Ceramic oxide sensors (particularly zirconia-based oxygen sensors) monitor exhaust-gas composition to optimize emissions control and combustion efficiency. Semiconductor metal oxide ceramic sensors detect hazardous gases in cargo holds and cabin environments.

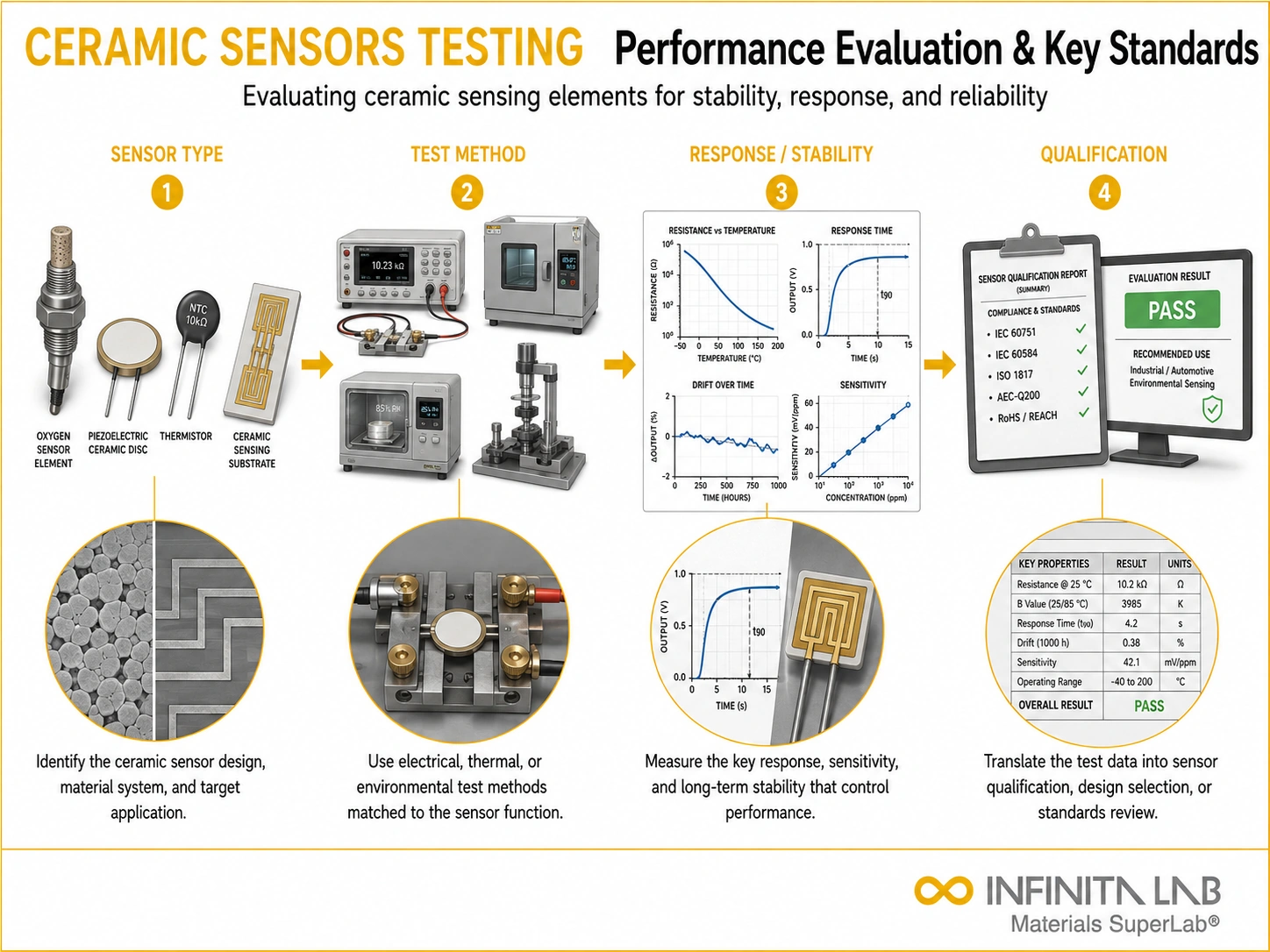

Testing and Qualification of Ceramic Sensors
Aerospace ceramic sensors undergo rigorous qualification testing, including thermal cycling (MIL-STD-810 Method 503), vibration and mechanical shock testing (MIL-STD-810 Method 514), high-temperature performance validation, electrical characterization under environmental extremes, and accelerated aging and reliability testing. Material characterization includes ASTM C1161 for flexural strength of ceramics, ASTM C1525 for thermal shock resistance, and ASTM C1327 for Vickers hardness of advanced ceramics.
Ceramic Materials for Sensor Applications
Key ceramic materials include alumina (Al₂O₃) for electrical insulation and high-temperature substrates, zirconia (ZrO₂) for oxygen sensing and thermal barrier applications, silicon carbide (SiC) for high-temperature semiconductor sensors and MEMS devices, piezoelectric ceramics (PZT) for vibration sensing and acoustic emission detection, and silicon nitride (Si₃N₄) for high-strength, high-temperature structural sensor elements.
Industry Applications Beyond Aerospace
While aerospace drives the most demanding applications, ceramic sensor technology extends to automotive engine management and exhaust monitoring, industrial process control in the metals and glass manufacturing sectors, medical devices for physiological parameter measurement, energy sector applications including gas turbine monitoring and battery management for green energy systems, and environmental monitoring for emissions compliance.
Partnering with Infinita Lab for Optimal Results
Infinita Lab addresses the most frustrating pain points in the Ceramic Sensor Testing process: complexity, coordination, and confidentiality. Our platform is built for secure, simplified support, allowing engineering and R&D teams to focus on what matters most: innovation. From kickoff to final report, we orchestrate every detail—fast, seamlessly, and behind the scenes.
Looking for a trusted partner to achieve your research goals? Schedule a meeting with us, send us a request, or call us at (888) 878-3090 to learn more about our services and how we can support you. Request a Quote
Frequently Asked Questions (FAQs)
Why are ceramic sensors preferred for aerospace applications? Ceramics withstand extreme temperatures (above 1,000°C), resist chemical attack from combustion gases and fuels, maintain dimensional stability under thermal cycling, and provide excellent electrical insulation-properties that metals and polymers cannot match in harsh aerospace environments.
What is a piezoelectric ceramic sensor? Piezoelectric ceramics (such as PZT) generate an electrical charge in response to mechanical stress. In aerospace, they serve as accelerometers, vibration sensors, and acoustic emission detectors for structural health monitoring of aircraft components.
How are ceramic sensors tested for aerospace qualification? Sensors undergo thermal cycling, vibration, mechanical shock, humidity, and altitude testing per MIL-STD-810 and DO-160 standards. Material properties are verified per ASTM standards for ceramic flexural strength, hardness, and thermal shock resistance.
What ceramic material is used in oxygen sensors? Yttria-stabilized zirconia (YSZ) is the standard material for oxygen sensors. Its ionic conductivity at elevated temperatures enables precise measurement of oxygen partial pressure in exhaust gases for combustion control and emissions monitoring.
Can ceramic sensors withstand thermal shock? Advanced ceramics like silicon carbide and silicon nitride exhibit excellent thermal shock resistance. Sensor design, including gradual thermal transitions and appropriate mounting, further enhances thermal shock survivability in rapid-temperature-change environments.
