Aluminum Alloy Families: Metallurgy, Mechanical Properties, and Testing Standards

Aluminium alloys are among the most widely used engineering materials across the aerospace, automotive, construction, electronics, and packaging industries. Classified into distinct families based on their primary alloying elements, aluminium alloys offer an exceptional combination of light weight, corrosion resistance, thermal conductivity, and mechanical strength. Understanding the metallurgy behind each alloy family is essential for material selection, process optimisation, and quality assurance. For manufacturers requiring aluminium alloy testing at a USA-based testing lab, Infinita Lab provides comprehensive mechanical, chemical, and metallographic analysis services.

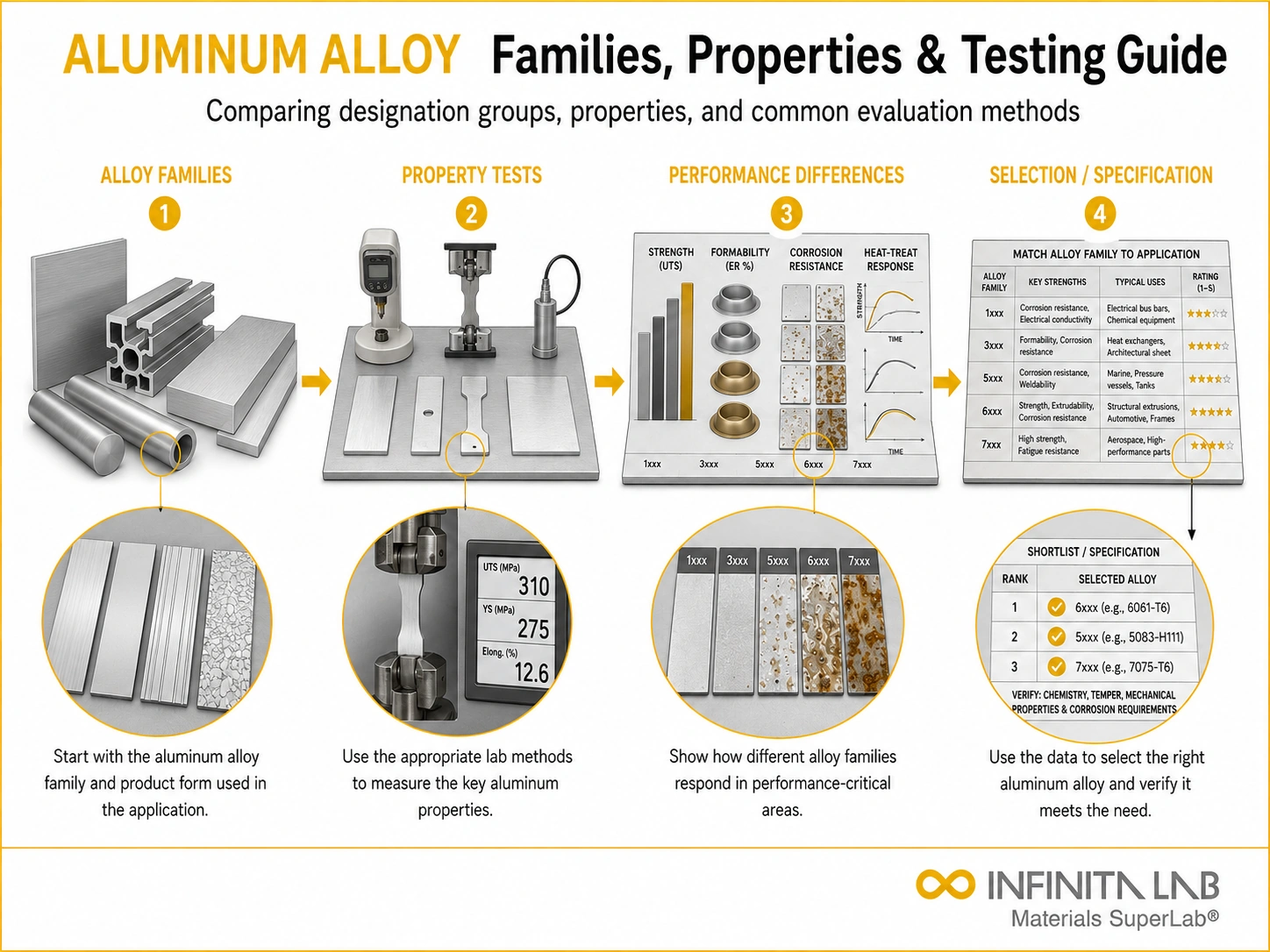

Overview of Aluminum Alloy Classification

Aluminium alloys are classified into wrought (1xxx through 7xxx series) and cast (1xx.x through 7xx.x) categories based on their primary alloying elements and fabrication method. The Aluminium Association designation system groups alloys by composition, with each series exhibiting distinct properties suited to specific applications.

Wrought Aluminum Alloy Families

1xxx Series (Pure Aluminium)

These alloys contain 99% or higher aluminium content and offer excellent corrosion resistance, electrical conductivity, and workability. They are commonly used in electrical conductors, chemical equipment, and foil packaging. Strength is relatively low compared to other series.

2xxx Series (Aluminium-Copper)

Copper is the primary alloying element, providing high strength through precipitation hardening (heat treatment). The 2xxx series (including 2024 and 2014) is extensively used in aerospace structural applications where a high strength-to-weight ratio is critical. These alloys have reduced corrosion resistance and typically require protective coatings.

3xxx Series (Aluminium-Manganese)

Manganese addition provides moderate strength improvement with excellent formability and corrosion resistance. Alloy 3003 is widely used in heat exchangers, cooking utensils, and architectural applications in the construction industry.

5xxx Series (Aluminium-Magnesium)

Magnesium provides good strength, excellent weldability, and superior resistance to marine corrosion. The 5xxx series (including 5052 and 5083) is the preferred choice for marine structures, pressure vessels, and automotive body panels.

6xxx Series (Aluminum-Magnesium-Silicon)

Combining magnesium and silicon enables precipitation hardening, achieving moderate-to-high strength with good formability and corrosion resistance. Alloy 6061 is one of the most versatile and widely used aluminium alloys across automotive, construction, and general engineering applications.

7xxx Series (Aluminium-Zinc)

Zinc is the primary alloying element, producing the highest-strength aluminium alloys through heat treatment. Alloy 7075 is the benchmark aerospace alloy, offering tensile strengths comparable to many steels while weighing one-third as much. These alloys are essential for aircraft structures, military equipment, and high-performance sporting goods.

Strengthening Mechanisms in Aluminium Alloys

Aluminium alloys are strengthened through solid solution strengthening, strain hardening (cold working), and precipitation hardening (age hardening). Heat-treatable alloys (2xxx, 6xxx, 7xxx series) achieve their highest strength through solution treatment, quenching, and controlled ageing, which form fine precipitate particles that impede dislocation movement. Non-heat-treatable alloys (1xxx, 3xxx, 5xxx series) are strengthened through cold working and alloying.

Testing and Quality Assurance for Aluminium Alloys

Comprehensive testing includes chemical composition analysis via OES or ICP-OES per ASTM E1251, tensile testing per ASTM B557, hardness testing per ASTM E18 (Rockwell) or ASTM E10 (Brinell), metallographic examination per ASTM E3 and E112, and corrosion testing per ASTM B117 (salt spray). These tests ensure that the alloy complies with AMS, ASTM, and customer-specific material certifications.
