Advantages of Temperature Humidity Bias (THB) Testing for Semiconductor Reliability
Temperature, Humidity, Bias (THB) testing is a specialised reliability evaluation method designed to assess the durability of electronic components and semiconductor devices under combined environmental stress conditions. By exposing specimens to controlled temperature, humidity, and electrical voltage bias simultaneously, THB testing accelerates moisture-driven corrosion and reveals failure mechanisms that compromise product performance. For manufacturers in the electronics, semiconductor, automotive, and medical device industries, THB testing at a U.S.-based lab like Infinita Lab is critical to ensuring product reliability and regulatory compliance.
What Is THB Testing?

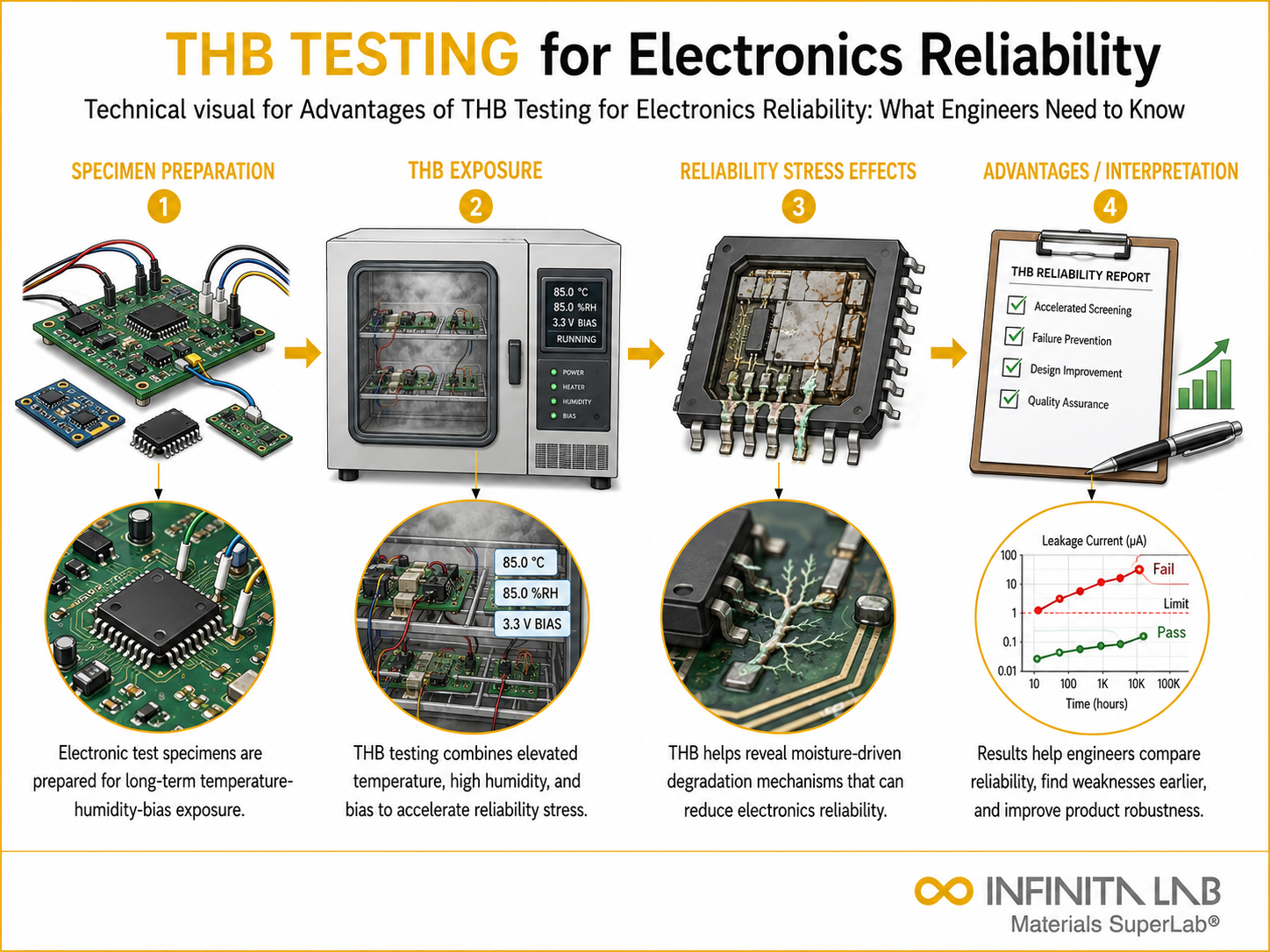

THB testing combines elevated temperature (typically 85°C), high relative humidity (85% RH), and an applied voltage bias to promote moisture penetration and electrochemical corrosion on the metallization layers of integrated circuits and electronic assemblies. Test specimens are evaluated at intervals—commonly 48, 96, 168, and 500 hours—to track degradation progression. The test follows standards such as JEDEC JESD22-A101 and IEC 60068-2-67, which define the conditions and acceptance criteria for the qualification of semiconductor and electronic components.
Key Advantages of THB Testing
Identifying Potential Failure Modes Early
THB testing reveals moisture-related failure mechanisms—including dendritic growth, corrosion of metallic traces, and dielectric breakdown—before products reach end users. This early detection capability is essential in the semiconductor and electronics industries, where even microscopic defects can cause catastrophic field failures.
Improving Product Quality and Reliability
By exposing design flaws and material incompatibilities under accelerated conditions, THB testing enables manufacturers to optimise packaging materials, encapsulants, and protective coatings. This drives improvements in product reliability across consumer electronics, automotive electronics, and industrial control systems.
Ensuring Regulatory and Standards Compliance
Many industries mandate THB testing for product qualification. Medical device electronics, automotive-grade semiconductors, and aerospace avionics must demonstrate moisture resistance per JEDEC, IEC, and AEC-Q standards. Passing THB testing validates compliance and supports market access.
Cost Savings Through Preventive Analysis
Detecting moisture-related vulnerabilities during development—rather than after mass production—prevents costly field failures, warranty claims, and product recalls. THB testing delivers a strong return on investment for manufacturers in the devices and electronic component supply chain.
Supporting Material and Process Development
R&D teams use THB testing to evaluate new die-attach materials, solder alloys, and polymer encapsulants under realistic stress conditions. This data guides material selection and process optimisation for next-generation electronic and semiconductor products.
Industry Applications of THB Testing
- Semiconductor and Integrated Circuit Manufacturing: THB testing is a core qualification requirement for integrated circuits packaged in polymeric materials such as silicone, liquid crystal polymer (LCP), and perylene. It validates that the passivation, wire bonds, and package seals resist moisture ingress under biased conditions.
- Automotive Electronics: Electronic control units, sensors, and power modules in vehicles face harsh under-hood and underbody environments. THB testing per AEC-Q100 and AEC-Q200 standards ensures these components deliver reliable performance throughout the vehicle’s intended lifespan.
- Medical Device Electronics: Implantable and external medical devices must function reliably in high-humidity clinical and physiological environments. THB testing confirms that electronic assemblies within these devices resist moisture-induced degradation, supporting FDA and IEC 60601 compliance.
- Printed Circuit Board (PCB) Assemblies: PCB assemblies used in telecommunications, aerospace, and industrial applications undergo THB testing to verify that solder joints, conformal coatings, and surface insulation resistance meet reliability targets under combined thermal and humidity stress.
Why Choose Infinita Lab for Temperature, Humidity, Bias (THB) Testing?
At the core of this breadth is our network of 2,000+ accredited labs in the USA, offering access to over 10,000 test types. From advanced metrology (SEM, TEM, RBS, XPS) to mechanical, dielectric, environmental, and standardised ASTM/ISO testing, we give clients unmatched flexibility, specialisation, and scale. You are not limited by geography, facility, or methodology—Infinita connects you to the right testing, every time.
Looking for a trusted partner to achieve your research goals? Schedule a meeting with us, send us a request, or call us at (888) 878-3090 to learn more about our services and how we can support you. Request a Quote
Frequently Asked Questions (FAQs)
What is the standard test condition for THB testing? The most common THB condition is 85°C temperature and 85% relative humidity with an applied voltage bias. Test duration typically ranges from 168 to 1,000 hours, depending on the qualification standard and product application.
How does THB testing differ from HAST testing? HAST (Highly Accelerated Stress Test) uses higher temperatures (up to 149°C) and elevated pressure to accelerate moisture failures in roughly one-tenth the time of standard THB testing. HAST is a faster alternative but uses different acceleration models.
What types of failures does THB testing detect? THB testing detects moisture-driven failure,s including metallic corrosion, dendritic growth between conductors, dielectric breakdown, delamination of packaging materials, and degradation of wire bond interfaces.
Which industries require THB testing for product qualification? THB testing is commonly required in the semiconductor, automotive electronics, medical device, telecommunications, and aerospace industries, where the reliability of electronic components under environmental stress is critical.
Can THB testing be performed on assembled PCBs? Yes, THB testing can be performed on both individual components and fully assembled PCBs. Testing assembled boards helps evaluate the combined effects of solder joints, conformal coatings, and component interactions under humidity-bias conditions.
