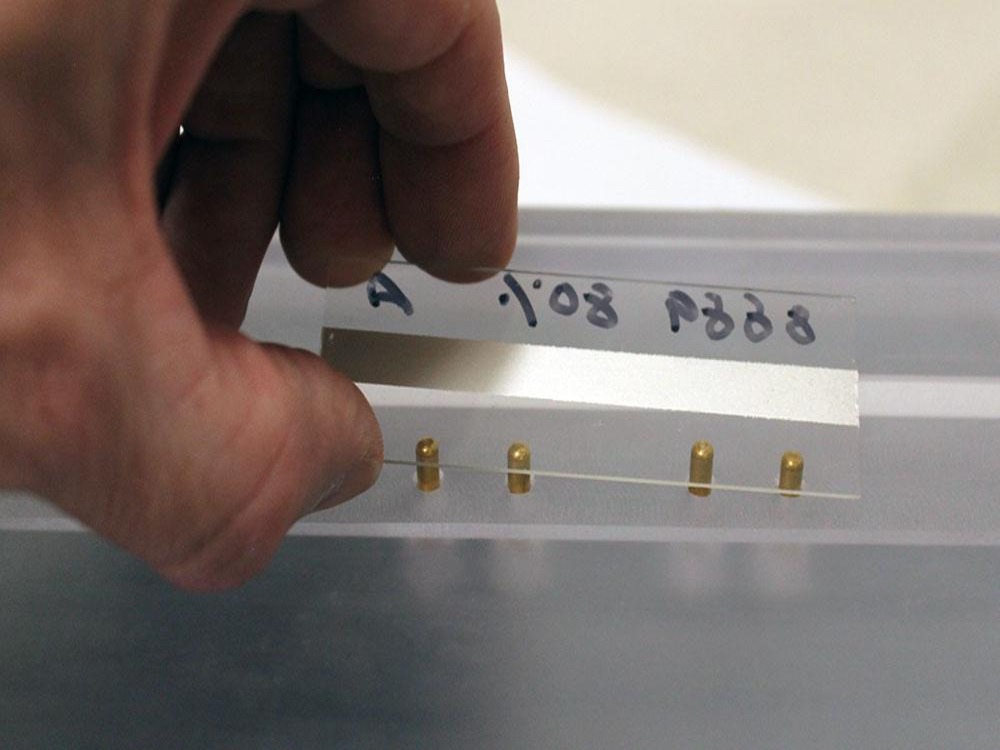

ASTM D2739 Volume Resistivity of Conductive Adhesive

The ASTM D2739 test method covers the determination of the volume resistivity of resin-based conductive adhesives in the cured condition. The test is performed on a thin adhesive film that has been created as part of a bonded specimen.

Talk to an Expert

ASTM D2739 Volume Resistivity of Conductive Adhesive

TRUSTED BY

Precision-driven testing for dimensional accuracy and compliance

Overview
Scope, Applications, and Benefits
Test Process
Specifications
Instrumentation
Results and Deliverables

Overview

ASTM D 2739 is the standard test method for volume resistivity of cured resin-based conductive adhesives. This test method measures the ability of an adhesive layer to conduct electrical current through its volume when used between metallic adherends.

The method is of particular relevance to applications such as electronic packaging where the adhesive provides an electrical path, such as conductive bonding and interconnect systems. ASTM D2739 provides standardized data on measuring electrical resistance under a defined geometry for comparing adhesive formulations and verifying manufacturing quality.

Scope, Applications, and Benefits

Scope

ASTM D2739 outlines procedures for measuring volume resistivity of cured conductive adhesives.

It evaluates:

Electrical conductivity of cured adhesive layers
Effect of curing conditions (room temperature or elevated)
Performance of thin adhesive films
Consistency of conductive properties across batches
Influence of adhesive formulation and geometry

The results apply specifically to the tested configuration and are most meaningful for electronic applications.

Applications

Electronic packaging and assembly
Conductive bonding and grounding
Sensor and interconnect systems
Printed circuit board (PCB) assembly
EMI/RFI shielding applications
Microelectronics manufacturing

Benefits

Provides quantitative electrical performance data
Enables comparison of conductive adhesive formulations
Supports quality control and batch verification
Ensures compliance with electrical design requirements
Improves the reliability of electronic assemblies
Assists in material selection for conductive applications

Test Process

Specimen Preparation & Curing

Conductive adhesive is applied between two metallic plugs and cured to form a controlled-thickness sandwich specimen.

Conditioning

Cured specimens are conditioned at standard laboratory conditions (≈23 °C, 50% RH) for a specified duration.

Resistance Measurement

Electrical resistance between metallic adherends is measured using a Kelvin bridge or equivalent precision instrument.

Resistivity Calculation

Volume resistivity (ρv) is calculated from measured resistance and specimen geometry.

Technical Specifications

Parameter	Details
Applicable Materials	Resin-based conductive adhesives
Specimen Geometry	Thin adhesive layer between metallic plugs
Cure Conditions	Room temperature or elevated temperature
Conditioning Environment	~23 °C, 50% RH
Measurement Units	Ohm-cm (or SI equivalent)

Instrumentation Used for Testing

Kelvin bridge or precision ohmmeter
Metallic plug fixtures
Temperature and humidity conditioning chamber
Micrometer or thickness gauge
Data acquisition and calculation software

Results and Deliverables

Volume resistivity values (ohm-cm)
Comparative electrical performance data
Batch consistency verification
Compliance documentation for electronic applications
Data supporting material qualification
Electrical performance reports

Frequently Asked Questions

The volume resistivity test is essential because it determines the adhesives' ability to conduct electricity. This property is necessary for applications where electrical performance and connectivity are critical, such as electronics, aerospace, and automotive industries

The ASTM D2739 test method determines the volume resistivity of resin-based conductive adhesives in the cured condition. The test is performed on a thin adhesive film created as part of a bonded specimen.

The ASTM D2739 test method uses brass tensile adhesion specimens with electrical connections. These specimens are prepared with adhesive layers cured between metal adherents.

The ASTM D2739 standard ensures that conductive adhesives meet specific resistivity requirements in electronics manufacturing, aerospace, automotive, telecommunications, and industrial applications.

ASTM D2739 assists manufacturers by ensuring that their conductive adhesives meet required electrical performance standards, optimizing product quality, and enhancing the reliability of adhesive applications in critical industries.
