Transmission Line Pulse (TLP) Testing

Introduction

The transmission line pulse testing the behavior of device performance in ESD events’ current and time domains. The most frequently referred definition of electrostatic discharge (ESD) robustness is an event occurring when a limited transfer of charge between two objects occurs. During this process, intense radiation and current act on the electronic devices through conduction and radiation coupling. In summary, TLP aids in determining the electrostatic discharge robustness in semiconductors.

Scope

TLP stands for transmission line pulse, one type of pulse generation. Researchers of integrated circuits cannot depend on the standard pulse generator as it needs a lot of current to trigger the ESD Stress. However, the transmission line pulse generator generates the pulse from the charge discharged from the coaxial cable. The coaxial cable is charged gradually using a high-voltage DC supply. Thus, it helps to understand the parametric I-V characteristics of the robustness of semiconductor devices with ESD. Further, it allows the manufacturers to prevent their ICs from failing.

Very Fast Transmission Line pulse testing:

A more refined approach, Very Fast-TLP, supplements traditional TLP by allowing for the faster rise times and shorter pulse durations needed for higher resolution to characterize device performance under actual high-speed ESD conditions. VF-TLP has become an essential method of testing state-of-the-art high-speed semiconductor devices with fast transient response. VF-TLP captures behavior at even higher frequencies and hence can contribute to pointing out subtler weaknesses, thus enabling further optimization of sensitive component ESD robustness.

Procedure

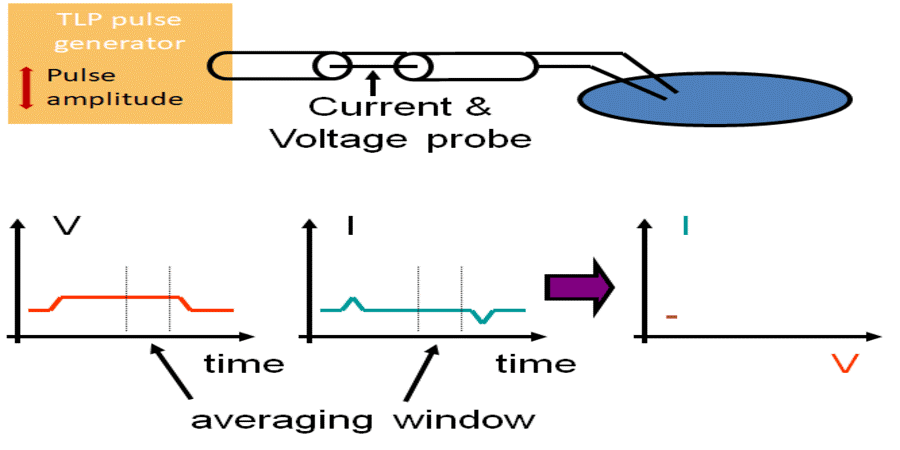

Connect a Transmission pulse generation tool to the DUT using a coaxial cable. Also, the current and voltage probes are connected to an oscilloscope to measure the transient pulses. Define an average window over the transient pulse. Later, the average voltage and current values are taken at one coordinate (V, I), and a detailed V -I characteristics curve is plotted.

Advantages and Disadvantages of TLP Testing:

Applications of TLP Testing:

Here are the six application points for transmission line pulse testing (TLP):

1. Evaluation of ESD Robustness:  TLP can determine the ability of semiconductor devices to withstand electrostatics, indicating reliable performance in ESD-prone environments.
2. I-V Characterization: The TLP process yields comprehensive current-voltage curves, which give detailed insight into electrical characteristics and performance thresholds. This, in turn, informs the identification of failure points and targeted improvements.
3. Failure Analysis: The devices’ responses to the ESD testing pulses expose weaknesses or design flaws, which are scrutinized through TLP testing and proven to be very useful in developing solid circuits.
4. Design Optimization: TLP testing gives engineers insights into how to adjust semiconductor designs to enhance ESD tolerance and performance.
5. High-Speed Device Testing: The VF-TLP test is essential for confirming the semiconductor device’s transient response at high-speed rates by detecting fast transients and actual real-world ESD conditions.
6. Quality Assurance: TLP testing can ensure better quality assurance since the devices must meet the required standards. It could reduce the possibility of field failure and enhance customer satisfaction.

Sample Size

The sample size for a TLP test should include multiple semiconductor devices to ensure that data is statistically relevant. A larger sample size improves the reliability of the failure analysis and performance characterization across different ESD conditions.

Result Analysis

Thus, the TLP result analysis of the breakdown voltages, clamping levels, and leakage currents within the generated current-voltage curves evaluates whether the assessment is correct in the current specification. Such intense analysis helps identify weaknesses in semiconductor designs and apply necessary modifications to achieve better ESD robustness.

Conclusion

TLP is a necessary tool for semiconductor and electronic industries that assists engineers in understanding essential ESD robustness. It enables further Failure Analysis and Detailed I-V Characterization of semiconductor devices, thus helping the manufacturer enhance the reliability of their product. Ensure your Integrated Circuits are resistant to ESD, ensuring excellent performance simultaneously. Contact us today to get your product tested.
