Solar & UV Weathering Testing: How Sunlight Affects Material Mechanical Properties
Introduction: The Sun as a Material Degradation Agent
Solar radiation is one of the most powerful and pervasive agents of material degradation in outdoor environments. Ultraviolet (UV) radiation, visible light, infrared heat, and the diurnal cycle of thermal expansion and contraction collectively attack polymers, coatings, adhesives, composites, and metals in service. Understanding and quantifying the effects of solar radiation on mechanical properties is essential for product durability design across the aerospace, automotive, infrastructure, and electronics industries.
How Solar Radiation Degrades Material Mechanical Properties
Ultraviolet (UV) Degradation of Polymers
UV radiation in the 290–400 nm wavelength range is energetic enough to break primary chemical bonds in many polymers. Photo-oxidative degradation progressively chain-scissions the polymer backbone, leading to:
- Loss of tensile strength and elongation at break
- Embrittlement and surface cracking (chalking, crazing)
- Discolouration (yellowing, fading)
- Reduced impact resistance
UV degradation rate depends on polymer chemistry, stabiliser package, UV dose, and temperature.
Thermal Effects and Cyclic Fatigue
Solar heating raises surface temperatures of exposed materials significantly above ambient — black-pigmented automotive polymers and roofing membranes can reach 80–100°C in direct sunlight. Cyclic heating and cooling induce thermal fatigue, causing progressive microcracking in coatings, sealants, and composite matrices. Thermal ageing also accelerates oxidative degradation of polymer chains.
Photodegradation of Coatings and Adhesives
Organic coatings absorb UV and visible radiation, causing photooxidation of the binder resin. The mechanical consequences include loss of coating adhesion, increase in brittleness, and reduction in impact and scratch resistance. UV-induced adhesive bond degradation reduces lap shear and peel strength.
Composite and Fibre-Reinforced Materials
In fibre-reinforced composites, UV radiation degrades the surface-exposed matrix resin, causing microcracking, fibre prominence (“fibre blooming”), and progressive reduction in interlaminar shear strength. Carbon fibre itself is UV-inert, but the epoxy or polyester matrix is highly susceptible to photodegradation.
Accelerated Solar Radiation Testing Methods
Xenon Arc Weathering (ASTM G155, ISO 4892-2)
Xenon arc lamps with daylight filters closely simulate the full solar spectrum from UV through visible and near-infrared. ASTM G155 and ISO 4892-2 define exposure conditions, including irradiance, temperature, humidity, and wetting cycles for accelerated weathering of plastics, coatings, and composites.
UV Fluorescent Lamp Testing (ASTM G154, ISO 4892-3)
UVA-340 and UVB-313 fluorescent lamps selectively reproduce portions of the solar UV spectrum. UVA-340 is preferred for simulating real-world UV degradation of outdoor materials; UVB-313 provides more severe exposure for rapid screening.
Outdoor Exposure Testing (ASTM G7, ASTM G90)
Direct outdoor exposure at defined geographic sites (Florida, Arizona) provides real-world solar degradation data. Florida’s high UV intensity, humidity, and temperature make it the global benchmark location for outdoor weathering.

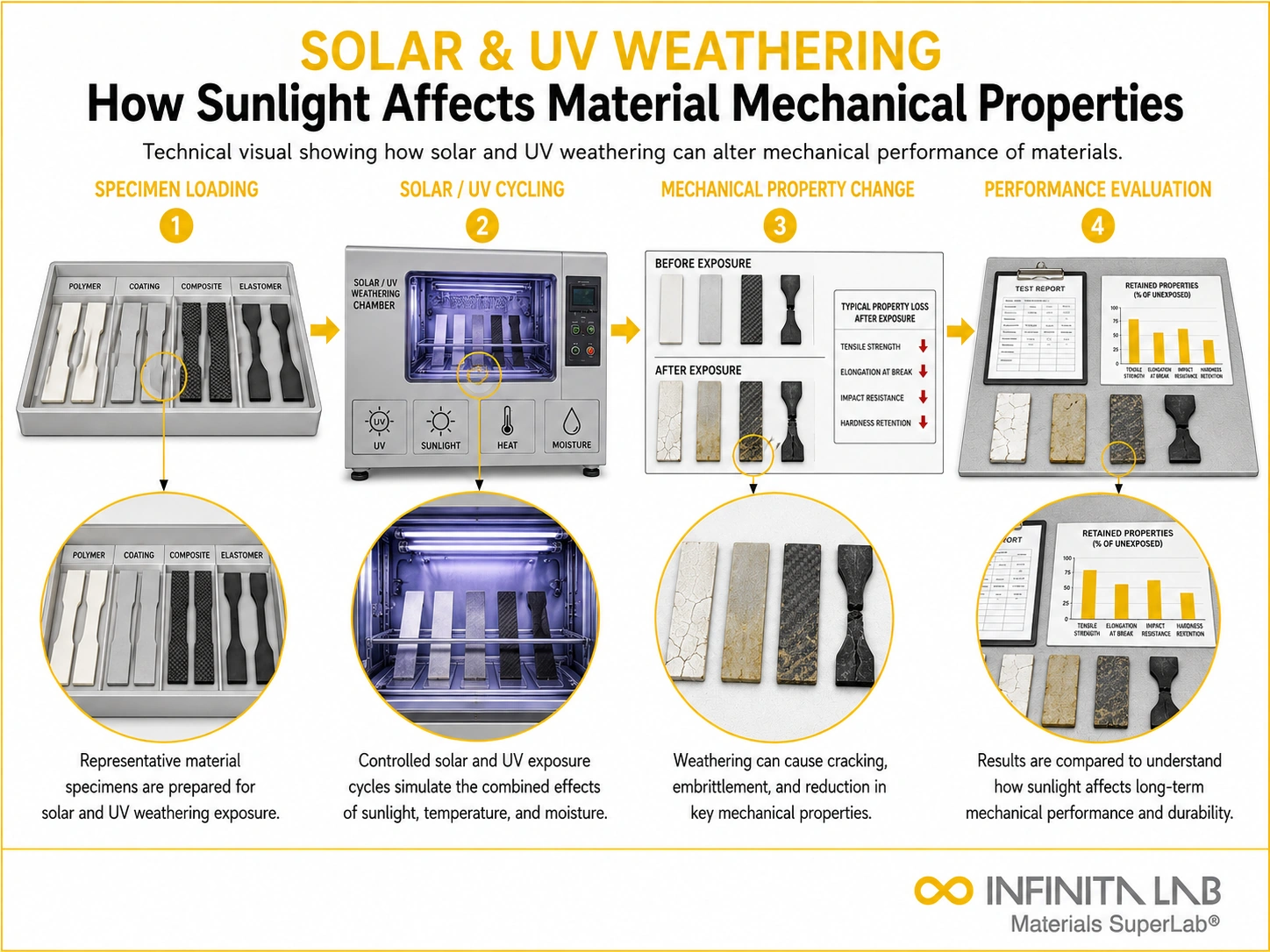

Mechanical Property Evaluation After Solar Exposure
After weathering, exposed specimens are characterised for tensile strength, elongation at break, flexural modulus, impact energy, hardness, and adhesion retention. Results are compared to unexposed controls to calculate the percentage retention of each property. Minimum property retention values (e.g., >80% tensile strength after 2000 hours xenon arc) are typical durability specifications for automotive and construction materials.
Conclusion
Solar radiation is a dominant environmental factor that significantly affects the long-term mechanical performance of materials exposed to outdoor conditions. Through the combined effects of UV-induced chemical degradation, thermal cycling, and photooxidation, materials can lose strength, flexibility, and structural integrity over time. Accelerated weathering methods such as xenon arc and UV exposure testing enable engineers to predict durability and design materials that maintain performance throughout their service life, ensuring reliability in demanding applications.
Why Choose Infinita Lab for Solar Radiation and Weathering Testing?
Infinita Lab provides comprehensive accelerated solar and weathering testing services — xenon arc, UV fluorescent, and outdoor exposure — alongside mechanical property evaluation before and after exposure, through our nationwide accredited laboratory network.
Looking for a trusted partner to achieve your research goals? Schedule a meeting with us, send us a request, or call us at (888) 878-3090 to learn more about our services and how we can support you.
Frequently Asked Questions (FAQs)
How does solar radiation degrade materials? Solar radiation causes UV-induced chemical bond breaking, thermal ageing, and cyclic stress, leading to weakening and surface damage.
Which materials are most affected by UV radiation? Polymers, coatings, adhesives, and composite matrices are highly susceptible to UV degradation.
What is photo-oxidative degradation? It is the process where UV radiation and oxygen break down polymer chains, reducing mechanical properties.
What temperatures can materials reach under sunlight? Surface temperatures can reach 80–100°C depending on material colour and exposure conditions.
How are materials tested for solar degradation? Using accelerated weathering tests such as xenon arc (ASTM G155) and UV fluorescent lamp testing (ASTM G154).
