Semiconductor Testing Services: The Safety Net for IC Quality

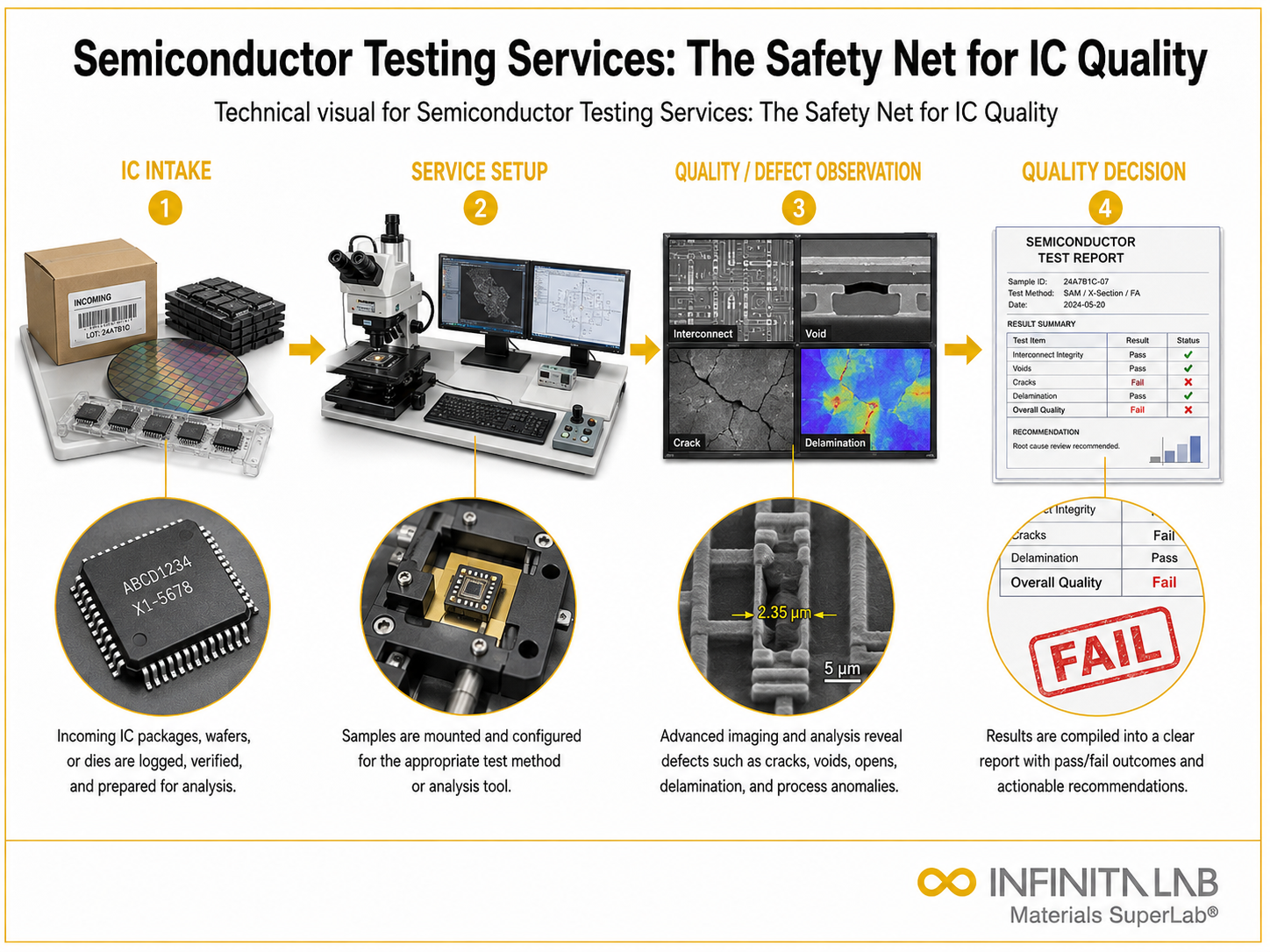

Integrated circuits are the intelligence layer of modern technology. From the microcontrollers that manage engine timing in vehicles to the processors that drive artificial intelligence inference in data centers, ICs operate at the center of systems where failure is not an acceptable outcome. Semiconductor testing services are the safety net that stands between IC production and field deployment — ensuring that every device shipped meets its specified electrical, thermal, mechanical, and environmental performance requirements.
Why Semiconductor Testing Is the Safety Net
The semiconductor industry operates at a scale and complexity that makes comprehensive wafer-level and package-level testing indispensable. A modern semiconductor fabrication facility produces millions of wafers annually, each containing hundreds to thousands of individual dies. At every stage of production — after wafer fabrication, after package assembly, and before shipment — testing identifies non-conforming devices and prevents them from reaching end users.
Testing serves multiple functions in the IC supply chain:
- Functional verification: Confirming that the device performs its intended logic, signal processing, or memory functions
- Parametric verification: Confirming that key electrical parameters — threshold voltage, leakage current, drive strength, propagation delay — meet specification over the operating voltage and temperature range
- Structural integrity verification: Confirming that the package, solder balls, and bond wires are mechanically sound
- Environmental qualification: Confirming that the device meets reliability requirements for its intended application environment
Core Semiconductor Testing Services
Electrical Characterization
Electrical characterization tests measure the fundamental electrical properties of semiconductor materials and devices:
- I-V (current-voltage) characterization: Maps device behavior across the operating voltage range, identifying non-linear behavior, leakage, or breakdown characteristics
- C-V (capacitance-voltage) profiling: Characterizes MOS interface quality, oxide charge density, and doping profiles
- Carrier lifetime measurement: Determines how long charge carriers remain useful in the semiconductor — critical for photovoltaic cells, transistors, and diodes
- Resistivity measurement: Quantifies sheet resistance and bulk resistivity of semiconductor layers
Thermal Testing
Thermal characterization is critical because semiconductor performance and reliability are both strongly dependent on junction temperature:
- Thermal resistance measurement (θ_JC, θ_JA): Quantifies the temperature rise per unit of power dissipated — essential for thermal management design
- Thermal impedance measurement: Characterizes transient thermal behavior under pulsed power conditions
- Junction temperature measurement: Directly measures operating junction temperature under realistic power conditions
Dielectric Strength Testing
Dielectric strength testing verifies the insulating capability of semiconductor materials and oxide layers under high electric-field stress — confirming that gate oxides, interlayer dielectrics, and isolation structures will not break down at the maximum specified operating voltage.
Environmental Testing
Semiconductor environmental testing verifies performance across the operating environment:
- Temperature range testing: Function Testing at minimum and maximum specified operating temperatures
- Humidity and moisture testing: Verifying performance after moisture exposure
- ESD robustness: Confirming the device survives handling and assembly ESD events
- Mechanical shock and vibration: Verifying package structural integrity under handling and transportation loads
Surface Analysis
Surface characterization techniques — XPS, AES, SEM/EDS — support semiconductor testing by identifying surface contamination, oxidation states of interface layers, and elemental composition of surface films that affect device electrical performance and reliability.
Testing Standards in Semiconductor Services
Semiconductor testing services are governed by a comprehensive framework of JEDEC, IEC, MIL-STD, and AEC-Q standards, including:
- JEDEC JESD22 — Environmental test methods for semiconductor devices
- MIL-STD-883 — Test methods for microelectronic devices
- AEC-Q100/Q101 — Automotive semiconductor qualification
- IEC 60747 — Semiconductor devices — general
WTesting cannot Be Skipped
Every untested device shipped is a statistical risk. At production volumes of millions of units, even a 0.01% defect escape rate means tens of thousands of defective devices reaching customers. The cost of a field failure — warranty replacement, system downtime, reputational damage, and, in safety-critical applications, liability — vastly exceeds the cost of comprehensive testing before shipment.
For automotive, aerospace, medical, and industrial applications where device failure can cause physical harm or safety incidents, comprehensive semiconductor testing is not optional — it is a mandatory prerequisite for market access.s
Conclusion
Semiconductor testing services are essential for ensuring that integrated circuits meet their required electrical, thermal, mechanical, and environmental performance standards before deployment. By combining comprehensive testing methods with established industry standards, manufacturers can detect defects early, ensure reliability, and prevent costly field failures — making testing a critical safeguard in the semiconductor supply chain.
